LH685-0011 - Kohler Aegis Engine, Made for Moridge Mfg., 23hp Cooling System 13-66-7 Parts Diagram

Aegis Engine, Made for Moridge Mfg., 23hp

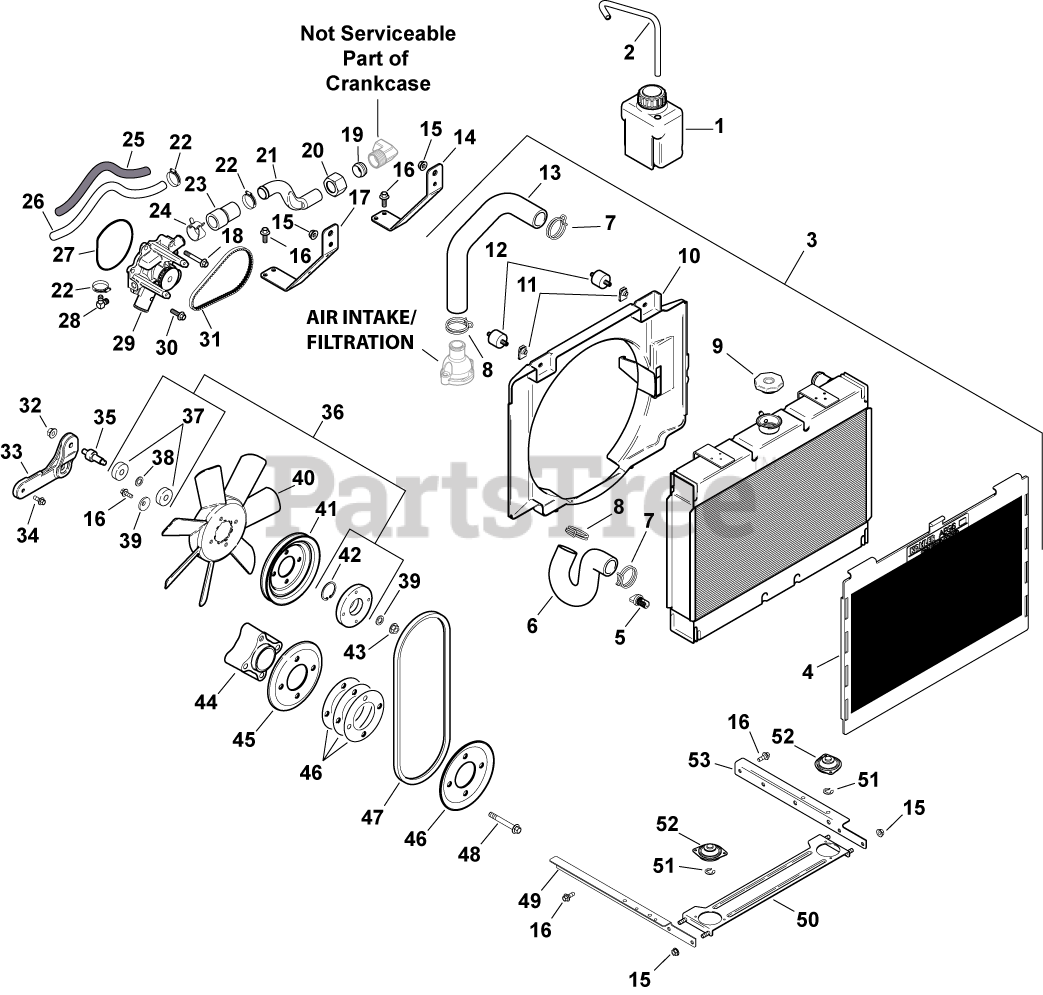

Cooling System 13-66-7 Parts Diagram

  • Title

1

Kohler 66 065 05-S

BOTTLE, OVERFLOW

$115.99

$

Usually ships in 2-5 days

0

2

Kohler 66 326 30-S

HOSE, OVERFLOW

$21.99

$

Usually ships in 2-5 days

0

3

Kohler 66 398 08-S

USE 66 398 09-S RADIATOR
(Superseded to 66 398 10-S)

Note: (INCLUDES 2, 4-13 & 66 326 08-S)

$508.99

$

Usually ships in 2-5 days

0

4

Kohler 66 162 01-S

SCREEN, GRASS (FLAT)
(Superseded to 66 162 12-S)

$201.99

$

Usually ships in 2-5 days

0

5

Kohler 66 139 04-S

PLUG, DRAIN

$19.99

$

Usually ships in 2-5 days

0

6

Kohler 66 326 07-S

HOSE, RADIATOR TO WATER PUMP (LOWER)

$74.99

$

Usually ships in 2-5 days

0

7

Kohler 66 237 20-S

CLAMP, CONSTANT TENSION BAND

$

$

Not available

8

Kohler 66 237 18-S

CLAMP, THERMOSTAT HSG OUTLET

$7.49

$

Usually ships in 2-5 days

0

9

Kohler 66 173 01-S

CAP, RADIATOR - (#6617309S)
(Superseded to 66 173 09-S)

$48.99

$

In Stock, only 2 left!

0

10

Kohler 66 424 01-S

SHROUD, FAN

$100.99

$

Usually ships in 2-5 days

0

11

Kohler 66 154 02-S

U CLIP - DISCONTINUED

$

$

Not available

12

Kohler 66 366 01-S

MOUNT, ISOLATION

$48.99

$

Usually ships in 2-5 days

0

13

Kohler 66 326 06-S

HOSE, THERMOSTAT TO RADIATOR (UPPER)

$70.99

$

Usually ships in 2-5 days

0

14

Kohler 66 126 37-S

BRACKET,UP RADTR #1 SIDE-USE 66 126 75-S
(Superseded to 66 126 75-S)

$20.99

$

Usually ships in 2-5 days

0

15

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

16

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

17

Kohler 66 126 38-S

BRACKET,UP RADTR #2 SIDE-USE 66 126 78-S
(Superseded to 66 126 76-S)

$20.99

$

Usually ships in 2-5 days

0

18

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

19

Kohler 66 431 03-S

SLEEVE

$5.99

$

Usually ships in 2-5 days

0

20

Kohler 66 100 01-S

NUT

$19.99

$

Usually ships in 2-5 days

0

21

Kohler 66 123 03-S

TUBE, CROSSOVER - USE 66 755 16-S
(Superseded to 66 755 16-S)

$69.99

$

Usually ships in 2-5 days

0

22

Kohler 25 237 12-S

CLAMP, HOSE-USE 25 237 32-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

23

Kohler 66 123 01-S

HOSE, CROSSOVER - USE 66 755 16-S
(Superseded to 66 755 16-S)

$69.99

$

Usually ships in 2-5 days

0

24

Kohler 66 237 07-S

CLAMP

$3.99

$

Usually ships in 2-5 days

0

25

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

26

Kohler 66 326 35-S

HOSE, BY-PASS 13"

$10.99

$

Usually ships in 2-5 days

0

27

Kohler 66 153 01-S

O-RING

$2.49

$

Usually ships in 2-5 days

0

28

Kohler 45 155 01-S

CONNECTOR

$10.99

$

Usually ships in 2-5 days

0

29

Kohler 66 393 01-S

PUMP ASSEMBLY, WATER - USE 66 393 10-S
(Superseded to 66 393 10-S)

$304.99

$

Usually ships in 2-5 days

0

30

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

31

Kohler 66 203 01-S

BELT, WATER PUMP

$21.99

$

In Stock, only 1 left!

0

32

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 66 126 72-S

BRACKET, FAN

$92.99

$

Usually ships in 2-5 days

0

34

Kohler M-851016-S

SCREW, FLG 8X1.25X16

$6.99

$

Usually ships in 2-5 days

0

35

Kohler 66 144 02-S

SHAFT, FAN - USE 66 144 11-S
(Superseded to 66 144 11-S)

$42.99

$

Usually ships in 2-5 days

0

36

Kohler 66 230 02-S

KIT, BEARING CARRIER

Note: (INCLUDES 37, 38 [QTY 1], 42)

$173.99

$

Usually ships in 2-5 days

0

37

Kohler 66 030 01-S

BEARING, BALL

$19.99

$

Usually ships in 2-5 days

0

38

Kohler X-25-28-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

39

Kohler 52 468 11-S

WASHER, SPRING 1/4"

$17.99

$

Usually ships in 2-5 days

0

40

Kohler 66 157 02-S

FAN, AXIAL PULLER

$27.99

$

Usually ships in 2-5 days

0

41

Kohler 66 093 03-S

PULLEY, FAN

$51.99

$

In Stock, only 1 left!

0

42

Kohler 66 141 01-S

RING, RETAINER-INTL O.D. 30MM

$2.49

$

Usually ships in 2-5 days

0

43

Kohler M-841060-S

NUT, FLG M8X1.25

$16.99

$

Usually ships in 2-5 days

0

44

Kohler 66 029 02-S

ADAPTER, CRANKSHAFT PULLEY

$196.99

$

Usually ships in 2-5 days

0

45

Kohler 66 093 04-S

PULLEY, CRANKSHAFT

$9.49

$

Usually ships in 2-5 days

0

46

Kohler 66 422 14-S

SHIM, CRANKSHAFT PULLEY

$8.49

$

Usually ships in 2-5 days

0

47

Kohler 66 203 02-S

BELT, FAN

$32.99

$

Usually ships in 2-5 days

0

48

Kohler M-851060-S

SCREW, FLG M8X1.25X60

$4.99

$

Usually ships in 2-5 days

0

49

Kohler 66 126 65-S

BRCKT KIT, LWR RADIATOR #2

Note: (INCLUDES 66 755 14-S)

$44.99

$

Usually ships in 2-5 days

0

50

Kohler 66 126 39-S

BRACKET, RADIATOR CROSS

$78.99

$

Usually ships in 2-5 days

0

51

Kohler 25 018 02-S

RETAINER, E-CLIP

$2.49

$

Usually ships in 2-5 days

0

52

Kohler 66 366 02-S

MOUNT, PLATEFORM

$

$

Not available

53

Kohler 66 126 64-S

BRCKT KIT, LWR RADIATOR #1

Note: (INCLUDES 66 755 14-S)

$44.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

6632608-S

Kohler 66 326 08-S

HOSE, OVERFLOW

Note: NOT ILLUSTRATED

$

$

Not available

6675514-S

Kohler 66 755 14-S

KIT, RAD BRCKT MTG HARDWARE-DISC.

Note: NOT ILLUSTRATED (INCLUDES 15, 19 [QTY 4], 20 [QTY 2], M-670016-S, M-670045-S, X-25-52-S)

$

$

Not available

M-670016-S

Kohler M-670016-S

SCREW - USE M-645016-S
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 13

0

M-670045-S

Kohler M-670045-S

SCREW, THRD FRM M6X1.0X45

Note: NOT ILLUSTRATED

$6.49

$

Usually ships in 2-5 days

0

X-25-52-S

Kohler X-25-52-S

WASHER, FLAT 1/4"

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0
