LH685-0011 - Kohler Aegis Engine, Made for Moridge Mfg., 23hp Air Intake Group 10-66-5 Parts Diagram

Aegis Engine, Made for Moridge Mfg., 23hp

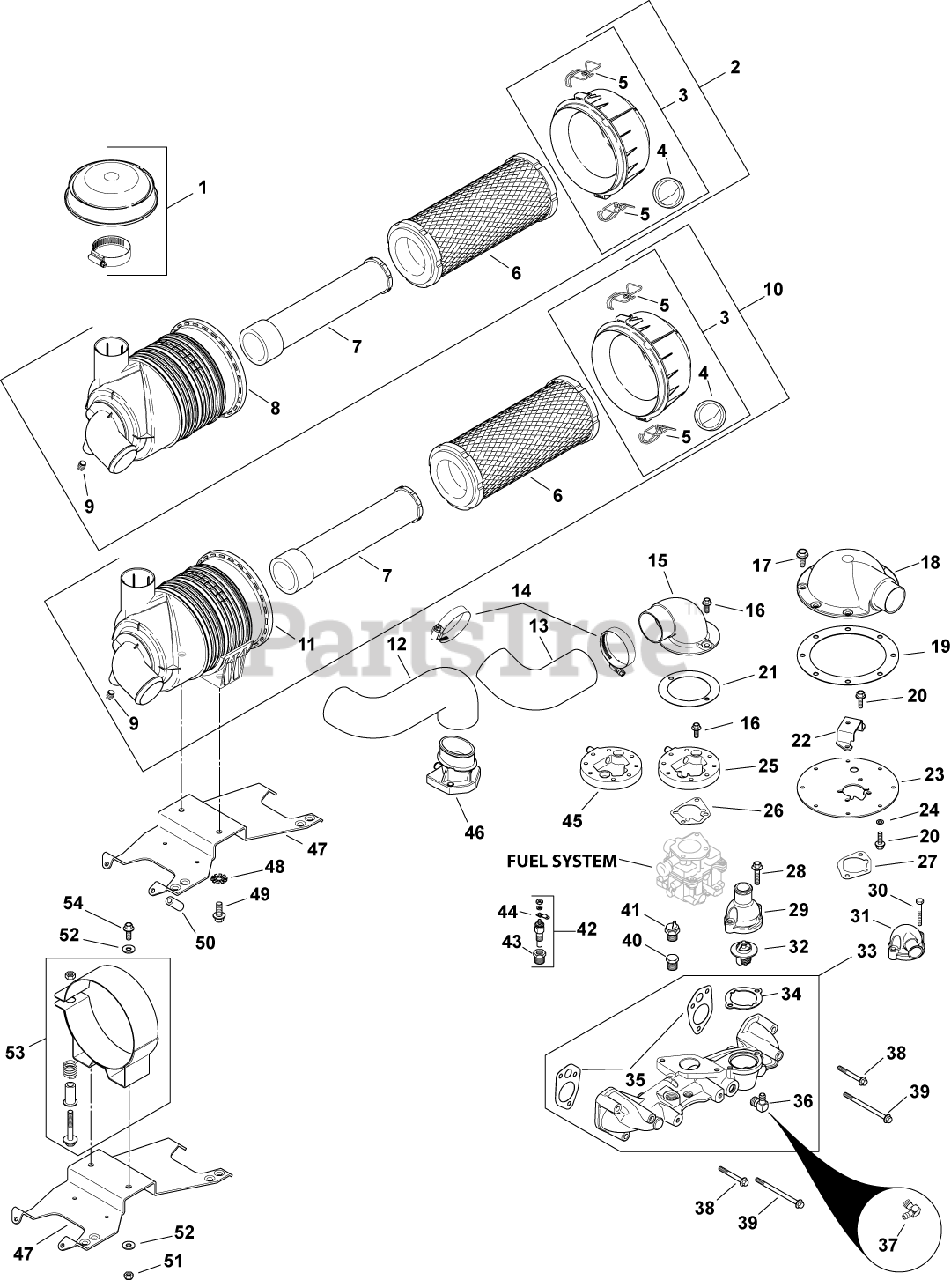

Air Intake Group 10-66-5 Parts Diagram

  • Title

1

Kohler 25 324 02-S

HOOD, AIR CLEANER (5.25)-USE 25 324 04-S
(Superseded to 25 324 04-S)

$49.99

$

Usually ships in 2-5 days

0

3

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

Note: (INCLUDES 4, 5)

$83.99

$

In Stock, only 1 left!

0

4

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 2 left!

0

5

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$12.99

$

In Stock, Qty 12

0

6

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$31.99

$

In Stock, Qty 20+

0

7

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$31.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 20-S

PLUG, PIPE

$8.49

$

Usually ships in 2-5 days

0

10

Kohler 25 048 10-S

AIR CLEANER, CANISTER

Note: (INCLUDES 3-9) (BEFORE S/N 3612800011)

$198.99

$

Usually ships in 2-5 days

0

11

Kohler 25 081 03-S

HOUSING, HEAVY DUTY A/C

Note: (AFTER S/N 3612800001)

$197.99

$

In Stock, only 1 left!

0

13

Kohler 24 326 32-S

HOSE, AIR CLEANER

$14.99

$

Usually ships in 2-5 days

0

14

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 2 left!

0

15

Kohler 24 029 21-S

ADAPTER, REMOTE AIR CLEANER

$138.99

$

Usually ships in 2-5 days

0

16

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

21

Kohler 24 041 34-S

GASKET, ADAPTER

$3.49

$

Usually ships in 2-5 days

0

25

Kohler 24 029 66-S

ADAPTER ASSY (CH18 / 20)-USE 24 029 97-S
(Superseded to 24 029 97-S)

$177.99

$

In Stock, only 1 left!

0

26

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 20+

0

28

Kohler M-651025-S

SCREW - USE 25 086 124-S
(Superseded to 25 086 124-S)

$2.49

$

In Stock, only 3 left!

0

29

Kohler 66 081 14-S

HOUSING, THERMOSTAT

$63.99

$

Usually ships in 2-5 days

0

32

Kohler 66 453 01-S

KIT, THERMOSTAT - USE 66 453 02-S
(Superseded to 66 453 02-S)

$54.99

$

Usually ships in 2-5 days

0

33

Kohler 66 164 23-S

MANIFOLD, INTAKE - USE 66 164 32-S
(Superseded to 66 164 32-S)

$344.99

$

Usually ships in 2-5 days

0

34

Kohler 66 041 01-S

GASKET, THERMOSTAT

$2.49

$

In Stock, only 2 left!

0

35

Kohler 66 041 05-S

GASKET, INTAKE MANIFOLD

$2.49

$

In Stock, only 3 left!

0

36

Kohler 66 155 02-S

CONNECTOR, HOSE

Note: (AFTER S/N 3612800001)

$12.99

$

Usually ships in 2-5 days

0

37

Kohler 45 155 01-S

CONNECTOR

Note: (BEFORE S/N 3612800011)

$10.99

$

Usually ships in 2-5 days

0

38

Kohler M-651050-S

SCREW, FLG M6X1.0X50

$2.99

$

Usually ships in 2-5 days

0

39

Kohler M-651090-S

SCREW, FLG M6X1.0X90

$2.49

$

Usually ships in 2-5 days

0

40

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 1 left!

0

47

Kohler 66 126 73-S

BRACKET, A/C BASE - USE 66 126 74-S
(Superseded to 66 126 74-S)

$102.99

$

Usually ships in 2-5 days

0

48

Kohler X-22-16-S

WASHER,INT EXT TOOTH LOCK 5/16"

Note: (AFTER S/N 3612800001)

$3.99

$

Usually ships in 2-5 days

0

49

Kohler M-839020-S

SCREW, FLG M8X1.25X20

Note: (AFTER S/N 3612800001)

$2.49

$

In Stock, only 2 left!

0

51

Kohler M-647060-S

NUT, LOCK M6X1.0

Note: (BEFORE S/N 3612800011)

$2.49

$

In Stock, only 2 left!

0

52

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

Note: (BEFORE S/N 3612800011)

$3.49

$

In Stock, only 3 left!

0

53

Kohler 66 126 51-S

BRACKET, AIR CLEANER

Note: (BEFORE S/N 3612800011)

$73.99

$

Usually ships in 2-5 days

0

54

Kohler M-651016-S

SCREW, FLG M6X1.0X16

Note: (BEFORE S/N 3612800011)

$2.49

$

In Stock, only 3 left!

0

2404138-S

Kohler 24 041 38-S

GASKET, AIR CLEANER ADAPTER

Note: NOT ILLUSTRATED

$10.99

$

In Stock, only 1 left!

0

2404114-S

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 9

0
