LGTX 1050 (13WS92AP010) - Cub Cadet 50" Lawn Tractor (2013) Fuel Tank, Hood & Dash Parts Diagram

50" Lawn Tractor

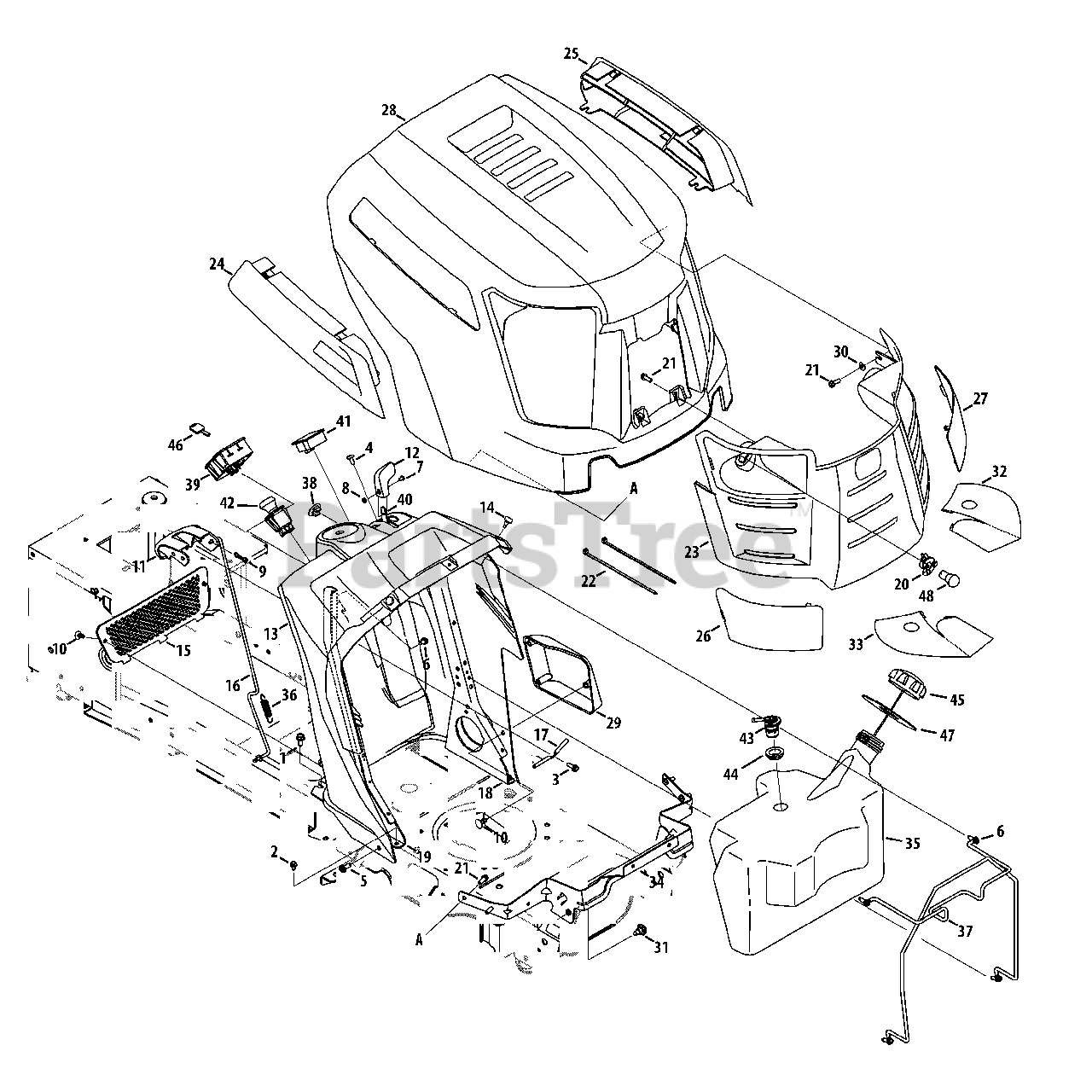

Fuel Tank, Hood & Dash Parts Diagram

  • Title

1

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0895

Screw, HL, 1/4-15, 0.750

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 710-1017

Screw, Ab, 1/4-14, 0.625,

$8.49

$

In Stock, Qty 9

0

5

Cub Cadet 710-1611B

Screw, Self-tapping, 5/16-18, 0.750,

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-1652

Screw, Self-tapping, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3217

Screw, Mach, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

8

Cub Cadet 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 9

0

9

Cub Cadet 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-05447A

Lever, Dash, Cruise/Brake

$16.99

$

In Stock, only 3 left!

0

12

Cub Cadet 731-06593

Knob, Throttle

$9.49

$

In Stock, Qty 6

0

13

Cub Cadet 931-07911

Dash Panel, A-Style

$143.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-0271A

Bumper, .62 Dia X .3

$8.99

$

In Stock, only 4 left!

0

15

Cub Cadet 735-04076

Net

$15.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 747-05009B

Rod, Control, Latch Cub

$18.99

$

In Stock, only 3 left!

0

17

Cub Cadet 747-1196

Rod, Lever, Bent

$15.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 783-06792-0637

Support, Dash, Plate LH

$44.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 783-06793-0637

Support, Dash, Plate RH

$44.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 925-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-05108

Screw, 1/4 Dia, .750

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 926-0154

Tie, Cable, Push Mount 7.5 Lg

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 931-04322

Grille Ass’y (Incl. 26, 27, 32 & 33)

$96.99

$

In Stock, only 1 left!

0

24

Cub Cadet 931-06542B

Scoop, Hood, RH A-Style

$

$

Not available

25

Cub Cadet 931-06543B

Scoop, Hood, LH A-Style

$52.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 931-06558

Lens, Hood, RH A-Style

$

$

Not available

27

Cub Cadet 931-06559

Lens, Hood, LH A-Style

$18.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 931-06634

Hood, A-Style
(Superseded to 931-06634A)

$328.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-07759

Cover, Power Steering Motor

$8.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 936-3020

Washer, Flat, .271, .630, .065
(Superseded to 736-3020)

$

$

Not available

31

Cub Cadet 738-04091A

Screw, Shoulder, .43x.29, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 777X44055

Reflector, Cub A Style, LH

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet 777X44056

Reflector, Cub A Style, RH

$12.99

$

In Stock, only 1 left!

0

34

Cub Cadet 783-06114-0637

Bracket, Pivot, Hood A-Style

$49.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-04311

Tank, Fuel, 3.30 Gal.

$175.99

$

In Stock, only 1 left!

0

36

Cub Cadet 732-04580

Spring, .500 Dia. x 2.733

$6.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-05040A

Rod, Support, Fuel Tank

$65.99

$

In Stock, only 2 left!

0

38

Cub Cadet 731-1999

Plug, Choke

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 925-04227B

Module Switch, Ignition
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

40

Cub Cadet 946-04556

Cable, Throttle/Choke, 38"

$39.99

$

In Stock, only 2 left!

0

41

Cub Cadet 925-04022B

Meter, Indicator

$146.99

$

In Stock, only 1 left!

0

42

Cub Cadet 725-04258

Switch, Electric PTO, Yellow
(Superseded to 925-04258A)

$56.99

$

In Stock, only 4 left!

0

43

Cub Cadet 751-12118

Valve, Rollover Grommet

$35.99

$

In Stock, only 2 left!

0

44

Cub Cadet 735-04081

Grommet, Rubber, 23.0 ID

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 951-12179B

Cap, Fuel
(Superseded to 951-12179C)

$38.99

$

In Stock, only 3 left!

0

46

Cub Cadet 625-05000

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

47

Cub Cadet 735-04170

Gasket, Fuel Tank

$5.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 925-0963

Lamp, 12v

$7.49

$

In Stock, only 4 left!

0

Cub Cadet 725-05113

Switch, Plunger, Snap Fit

Note: (not shown)

$13.99

$

In Stock, only 1 left!

0
