LGTX 1050 (13AS92AP056) - Cub Cadet 50" Lawn Tractor (2012) Mower Deck 50-inch Parts Diagram

50" Lawn Tractor

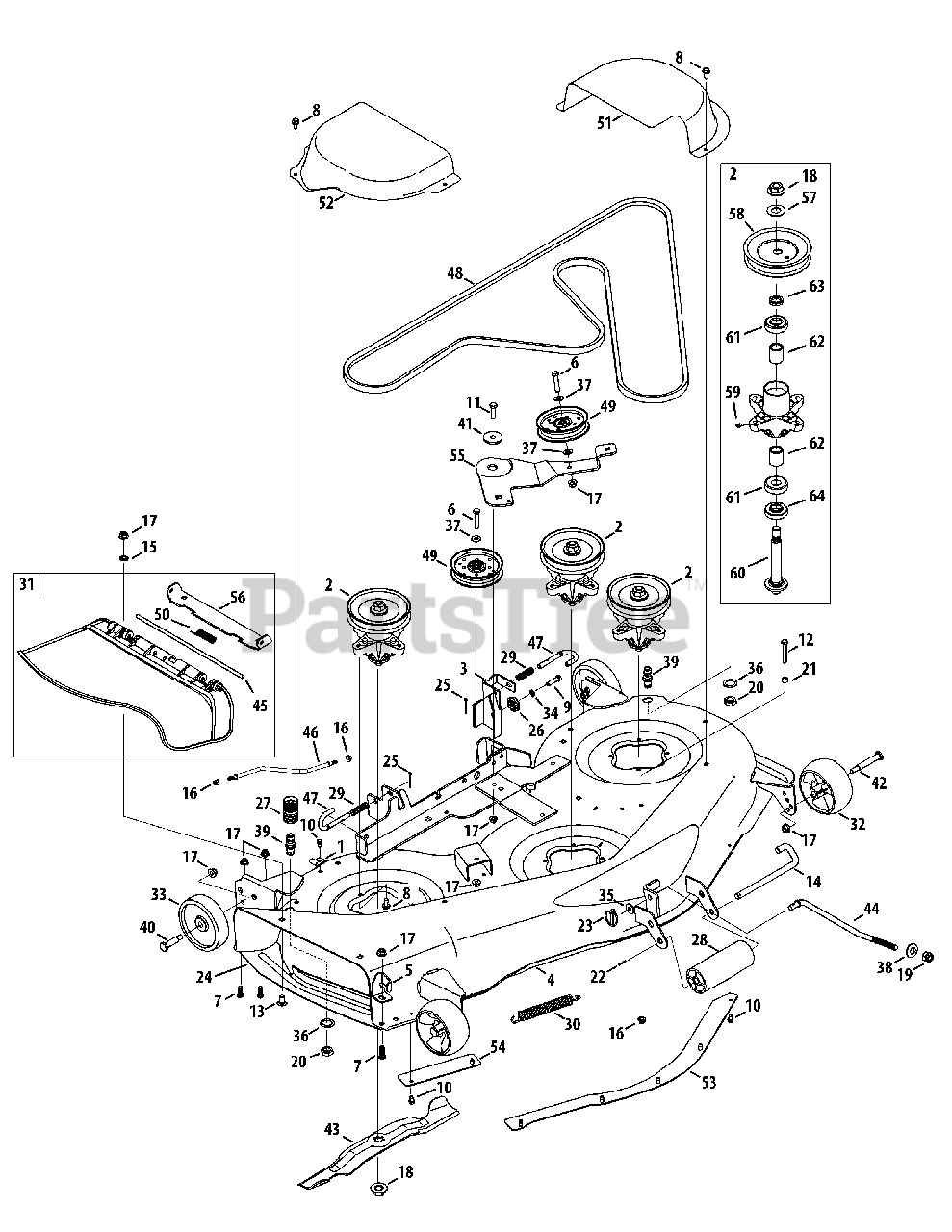

Mower Deck 50-inch Parts Diagram

  • Title

1

Cub Cadet 96606

Bracket, Hook, Retainer

$7.49

$

In Stock, Qty 6

0

2

Cub Cadet 918-04125B

Spindle Assembly, w/Pulley, 5.39 Dia.
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

Cub Cadet 683-0254B-4021

Bracket Assembly, Deck, Hanger LH

$49.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 983-04645-4021

Deck Assembly, 50"
(Superseded to 983-04645A)

$905.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-3279-4021

Stop, Chute, Deflector
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 19

0

10

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3005

Hex Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3103

Hex Screw, 5/16-18, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 911-3314

Roller Pin-1/2 Dia. x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

15

Cub Cadet 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04243

Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

Cub Cadet 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

23

Cub Cadet 753-04070

Pin, Lynch, .1875

$9.99

$

In Stock, Qty 20+

0

24

Cub Cadet 703-3511A-0637

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

25

Cub Cadet 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 917-04074

Gear, Deck, Adjustment

$13.99

$

In Stock, Qty 9

0

27

Cub Cadet 921-04041

Coupler, Water

$23.99

$

In Stock, Qty 20+

0

28

Cub Cadet 731-05679

Roller, Front
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

29

Cub Cadet 732-04652

Spring, Compr’, .535 OD x 1.751

$6.99

$

In Stock, only 2 left!

0

30

Cub Cadet 732-0459C

Spring, Extension, .94 OD x 6.74

$18.99

$

In Stock, only 3 left!

0

31

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

32

Cub Cadet 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

33

Cub Cadet 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0225

Washer, Lock, 5/8, Int Tooth

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0317

Washer, Bell, .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

39

Cub Cadet 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

40

Cub Cadet 938-0373

Bolt, Shoulder, .496 x 1.525, 3/8-16

$9.49

$

In Stock, Qty 20+

0

41

Cub Cadet 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

42

Cub Cadet 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

43

Cub Cadet 942-04053C

Blade, 17.90 Star 2 In 1

$28.99

$

In Stock, Qty 20+

0

44

Cub Cadet 747-05067A

Rod, Lift, Deck, Front, 11.7

$21.99

$

In Stock, Qty 6

0

45

Cub Cadet 711-04565

Pin, Hinge, .3175 Dia. x 14.06 ,1

$15.99

$

In Stock, only 3 left!

0

46

Cub Cadet 747-05462

Rod, Sway

$33.99

$

In Stock, only 1 left!

0

47

Cub Cadet 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

48

Cub Cadet 954-04077

Belt, V-Type
(Superseded to 954-04077A)

$82.99

$

In Stock, Qty 11

0

49

Cub Cadet 756-04129B

Pulley, Idler, 4.25"Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

50

Cub Cadet 732-04372

Spring, Torsion, .44 I.D. x 2.0,

$10.99

$

In Stock, Qty 8

0

51

Cub Cadet 783-04399-4021

Cover, Belt, LH 50"
(Superseded to 783-04399)

$95.99

$

In Stock, only 2 left!

0

52

Cub Cadet 783-04400-4021

Cover, Belt, RH 50"
(Superseded to 783-04400-0637)

$95.99

$

In Stock, only 4 left!

0

53

Cub Cadet 783-04414A-4021

Skirt, Center, 50"

$35.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 783-04415-4021

Skirt, RH, 50"

$30.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 783-05303-0637

Bracket, Idler, 50" w/o Spacer

$61.99

$

In Stock, only 1 left!

0

56

Cub Cadet 783-05030

Bracket, Chute 50/54"

$29.99

$

In Stock, Qty 5

0

57

Cub Cadet 736-0315

Washer, Flat, .760 X 1.50 X .120

$6.99

$

In Stock, Qty 6

0

58

Cub Cadet 756-04216

Pulley, Deck, 5.39 Dia.

$33.99

$

In Stock, only 1 left!

0

59

Cub Cadet 937-3000

Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

60

Cub Cadet 738-1010A

Shaft, Spindle, 5.75 Lg.

$46.99

$

In Stock, only 1 left!

0

61

Cub Cadet 941-0919

Bearing, Ball, .787id x 1.85 Od x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

62

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

63

Cub Cadet 748-0160A

Spacer, .790 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

64

Cub Cadet 750-1349A

Spacer, .79 x 1.82 x .55lg.

$13.99

$

In Stock, only 3 left!

0
