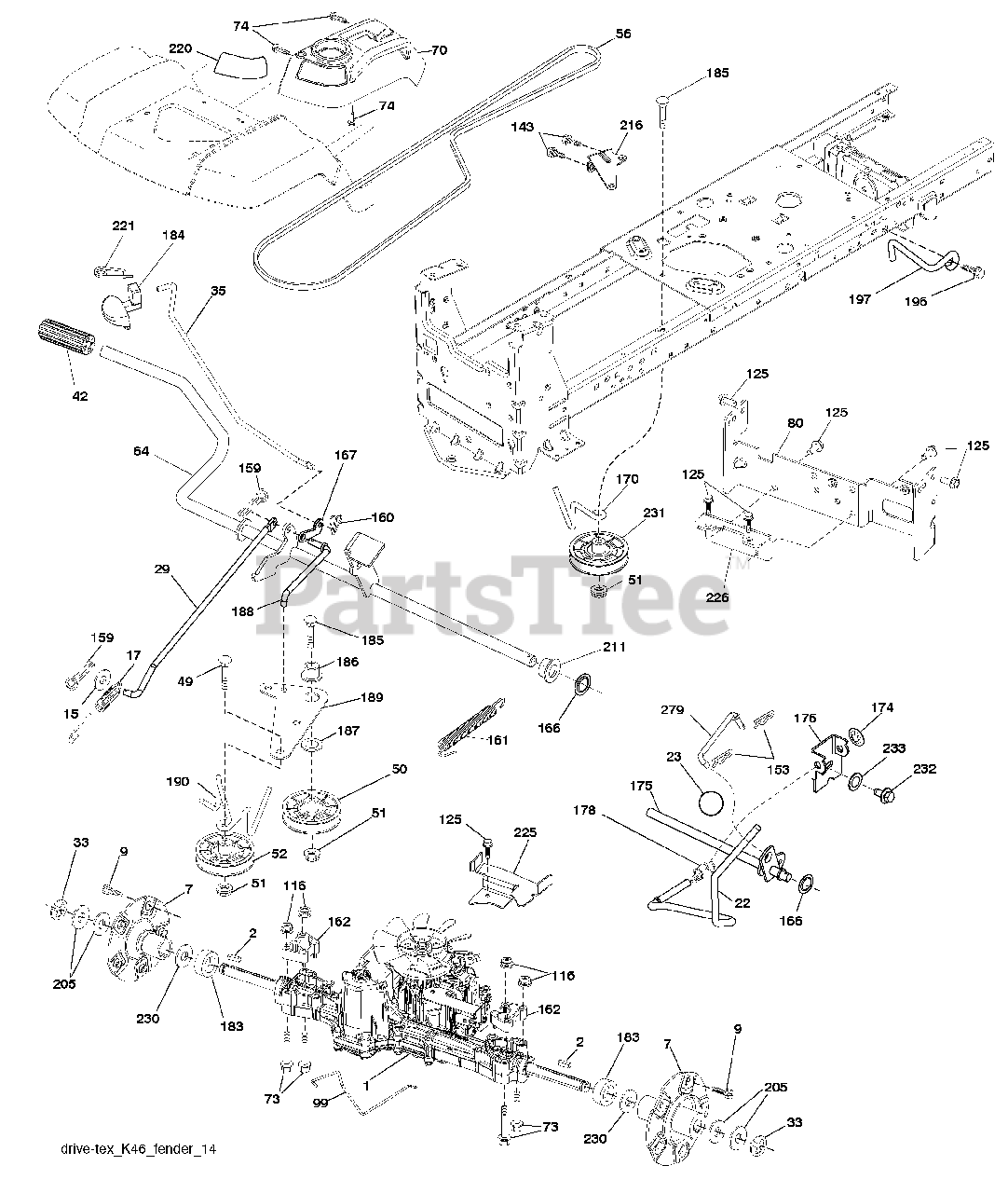

LGTH 2454 (917289580) - Husqvarna 54" Lawn Tractor (2010-03) Drive Parts Diagram

54" Lawn Tractor

Drive Parts Diagram

  • Title
1

Transaxle, TUFFTORQ K46 AW

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532199844

Hub Asm. Wheel Rear 22" TX GT .06

$56.99

$

In Stock, only 1 left!

0

9

Husqvarna 532140080

Bolt Hub Wheel Rear

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532413678

Spring Brake

$7.99

$

In Stock, only 1 left!

0

22

$85.99

$

Usually ships in 3-10 days

0

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532403806

Rod, Brake

$31.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532199591

Rod Brake Park
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$20.99

$

In Stock, Qty 11

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910" Offset

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532130969

V-Belt Drive

$31.99

$

In Stock, Qty 20+

0

64

Husqvarna 532196200

Shaft Asm. Pedal Brake Control

$56.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532400298

Console Asm.
(Superseded to 532439660)

$91.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490560

Bolt Hex Flghd 5/16-18 x 3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

Screw 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532410024

Strap Torque
(Superseded to 532440619)

$24.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532415743

Rod Bypass

$10.99

$

In Stock, only 1 left!

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

143

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532105709

Spring Return Clutch

$11.99

$

In Stock, only 2 left!

0

162

Husqvarna 532195785

Spacer Transaxle 18 and 22
(Superseded to 580457401)

$24.99

$

In Stock, only 2 left!

0

166

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

Keeper Belt Centerspan

$7.49

$

In Stock, only 1 left!

0

174

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532406208

Shaft Asm Shift

$26.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532196214

Arm Clevis Rod Shift

$7.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

Spring Shift

$6.49

$

Usually ships in 3-10 days

0

183

Husqvarna 532400424

Spacer Split

$8.99

$

In Stock, only 2 left!

0

184

Husqvarna 532403118

Handle Parking Brake
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110622

Bolt Rdhd Sqnk 3/8-16 x 2-3/4 Gr. 5

$4.99

$

In Stock, Qty 10

0

186

Husqvarna 532194321

Spacer Retainer

$9.49

$

In Stock, Qty 11

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, only 1 left!

0

196

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 532199769

Link Clutch Anti-Rotation

$8.99

$

In Stock, only 4 left!

0

205

$4.99

$

In Stock, Qty 20+

0

211

Husqvarna 532196212

Bushing Brake Shaft

$6.99

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

Bracket Pulley Idler

$7.99

$

In Stock, only 1 left!

0

220

Husqvarna 532198908

Reflector RH

$17.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, only 3 left!

0

225

Husqvarna 532403319

Keeper Belt Trans.

$6.99

$

Usually ships in 3-10 days

0

226

Husqvarna 532400831

Bracket Mount Torque

$18.99

$

Usually ships in 3-10 days

0

230

Husqvarna 532188967

Washer Hardened

$4.99

$

In Stock, Qty 20+

0

231

Husqvarna 532407287

Idler V-Groove 1.688" Offset

$22.99

$

In Stock, only 1 left!

0

232

Husqvarna 874780716

Bolt 7/16-14 x 1 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

233

Husqvarna 532405296

Washer Serrated

$6.49

$

Usually ships in 3-10 days

0

279
