LGT 54 (960430199-00) - Jonsered Lawn Tractor (2014-10) ENGINE Parts Diagram

Lawn Tractor

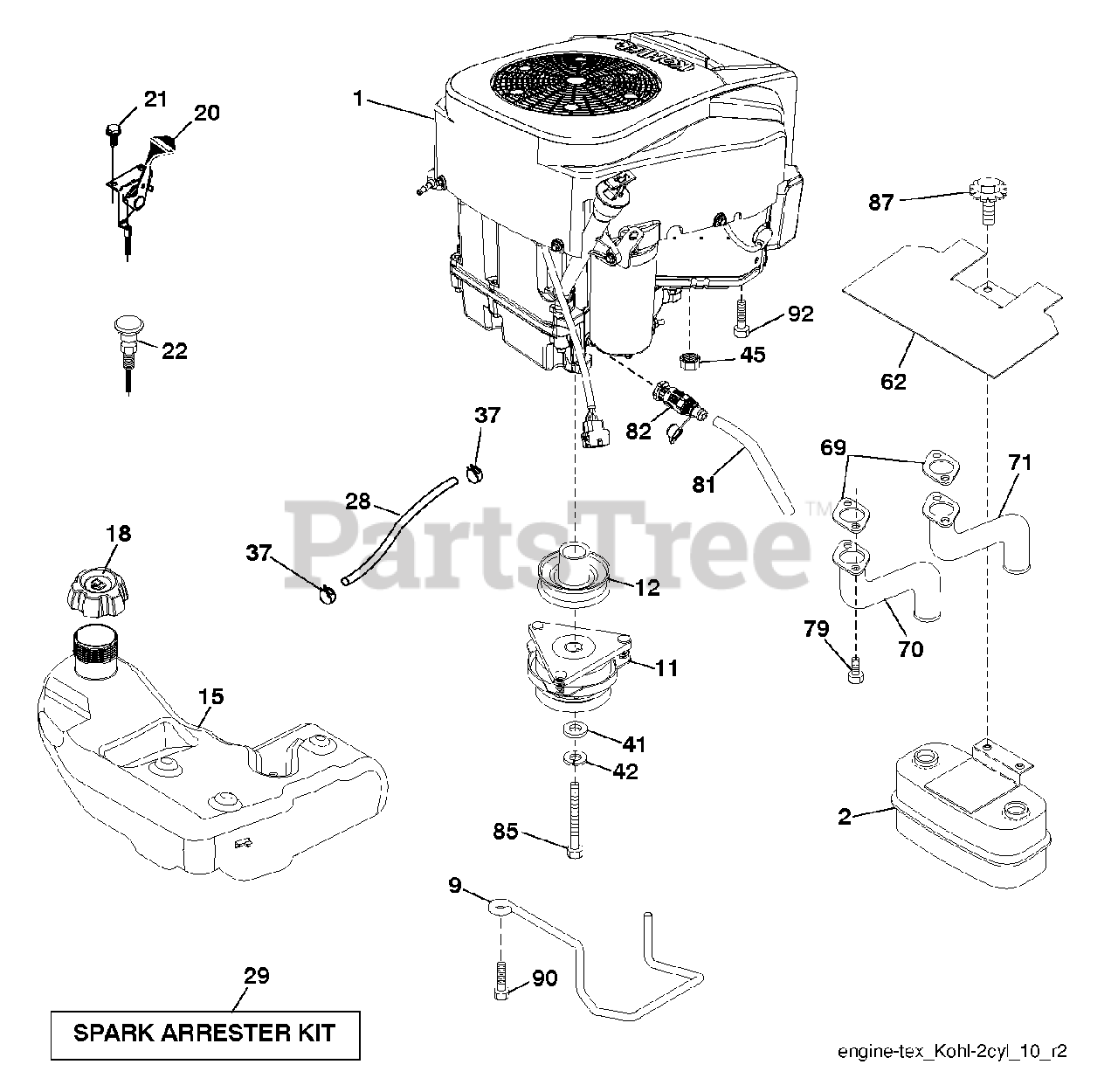

ENGINE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: ENGINE KOHL MODEL NO KT735-3058 (587959801)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Jonsered 584908001

Belt Keeper, 4 25"2 Blt 431
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

11

Jonsered 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

12

Jonsered 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Jonsered 532438081

TANK.ASM.4.GAL.EPA
(Superseded to 598731101)

$194.99

$

Usually ships in 3-10 days

0

18

Jonsered 585124802

Fuel Cap Assembly, 3" Black

$18.99

$

In Stock, only 1 left!

0

20

Jonsered 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

22

Jonsered 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

28

Jonsered 532401135

LINE.FUEL.64"REAR.EMIS

$27.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

70

Jonsered 583954501

Exhaust Pipe, LH CV18/20

$22.99

$

In Stock, only 1 left!

0

71

Jonsered 583954801

Exhaust Pipe, RH CV18/20
(Superseded to 532146700)

$20.99

$

In Stock, only 1 left!

0

79

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Jonsered 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

85

Jonsered 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5

$7.49

$

Usually ships in 3-10 days

0

87

Jonsered 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

92

Jonsered 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0
