LGT 54 (960430199-00) - Jonsered Lawn Tractor (2014-10) CHASSIS / FRAME Parts Diagram

Lawn Tractor

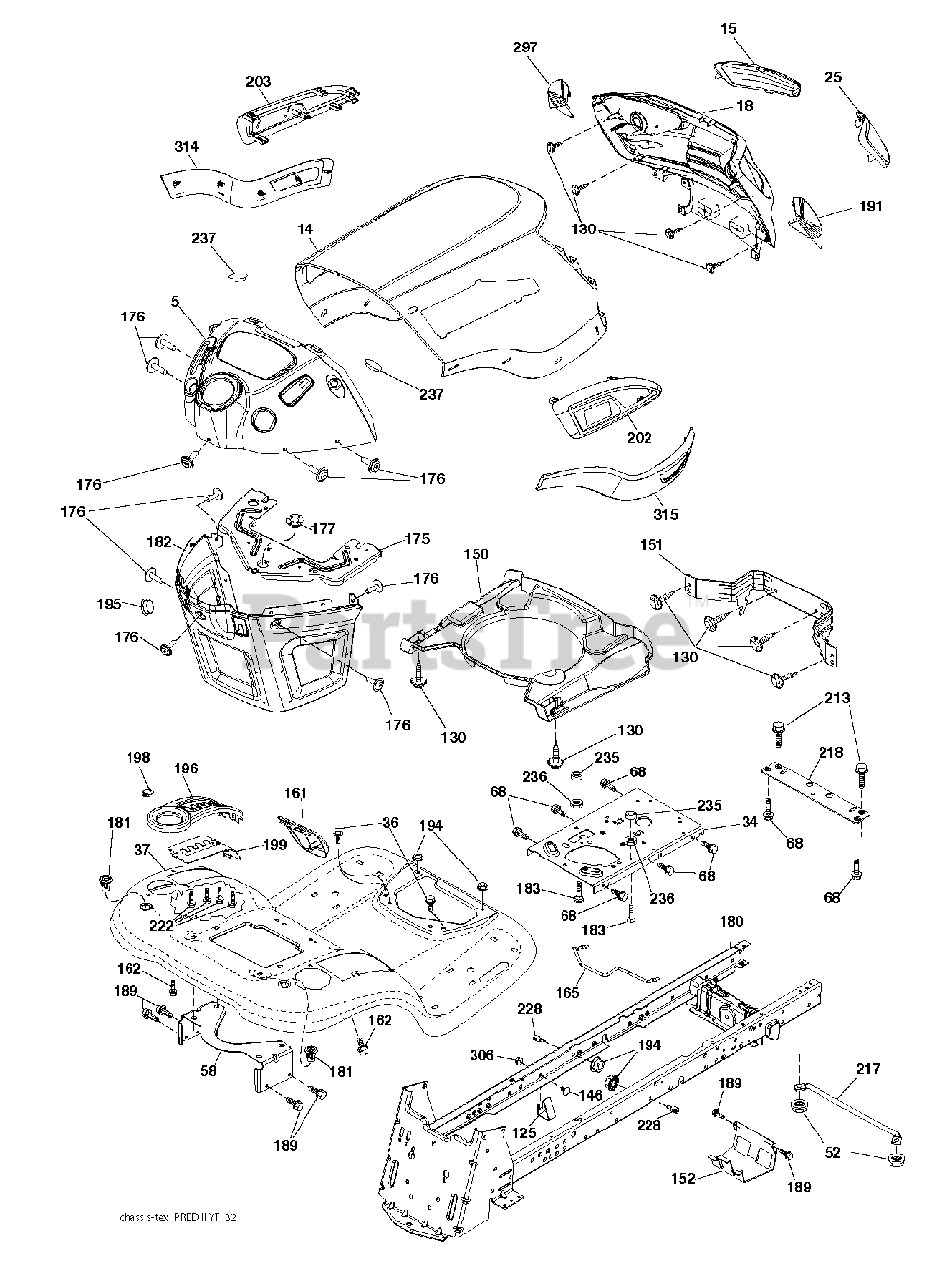

CHASSIS / FRAME Parts Diagram

  • Title

5

Jonsered 532424738

No Description Available

$72.99

$

Usually ships in 3-10 days

0

14

587899801

$

$

Not available

15

587898601

Note: LH

$

$

Not available

18

587785401

$

$

Not available

25

587898401

Note: RH

$

$

Not available

34

Jonsered 580910801

No Description Available

$74.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532443816

No Description Available

$241.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Jonsered 532194314

BRKT.SUPPORT.FNDR/TANK

$45.99

$

Usually ships in 3-10 days

0

68

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

125

Jonsered 581684801

Fuel Line Clip

$3.99

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

146

Jonsered 581857901

BOLT.RDHD.SHT.SQNK.3

$6.49

$

Usually ships in 3-10 days

0

150

Jonsered 584862901

PREDATOR.YT.GT.HOOD.A

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532445494

No Description Available

$37.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

161

Jonsered 532411879

CONSOLE.FUEL.WINDOW.STGT.BLACK

$8.99

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Jonsered 532196826

SUPPORT.TANK.REAR.W/TE

$31.99

$

Usually ships in 3-10 days

0

175

Jonsered 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

180

Jonsered 532195477

CHASSIS.GT.SLOPED.DRAWBAR.
(Superseded to 582033001)

$341.99

$

Usually ships in 3-10 days

0

181

Jonsered 532439746

BUSHING.MNT.FEND.CRGO.TEX.49
(Superseded to 532403025)

$

$

Not available

182

Jonsered 586738602

DASH LOWER.HUSQ.PRED NO CRUISE

$79.99

$

Usually ships in 3-10 days

0

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

532425407

$

$

Not available

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

195

Jonsered 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

Jonsered 532411878

No Description Available

$34.99

$

Usually ships in 3-10 days

0

198

Jonsered 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

Jonsered 532196377

PLATE DECK LIFT

$43.99

$

Usually ships in 3-10 days

0

202

Jonsered 587785201

VENT.SIDE.RH.PRED2.GTYT.JONS

Note: RH

$9.96

$

Usually ships in 3-10 days

0

203

Jonsered 587785101

VENT.SIDE.LH.PRED2.GTYT.JONS

Note: LH

$28.99

$

Usually ships in 3-10 days

0

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

222

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

0

237

Jonsered 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

297

532425406

$

$

Not available

306

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

314

Jonsered 587777701

TRIM.SIDE.PRED2.LH.LGT54
(Superseded to 587777301)

$136.99

$

Usually ships in 3-10 days

0

315

Jonsered 587777601

TRIM.SIDE.PRED2.RH.LGT54
(Superseded to 587777201)

$43.99

$

Usually ships in 3-10 days

0

--

Jonsered 532400944

No Description Available
(Superseded to 531307007)

$83.99

$

Usually ships in 3-10 days

0
