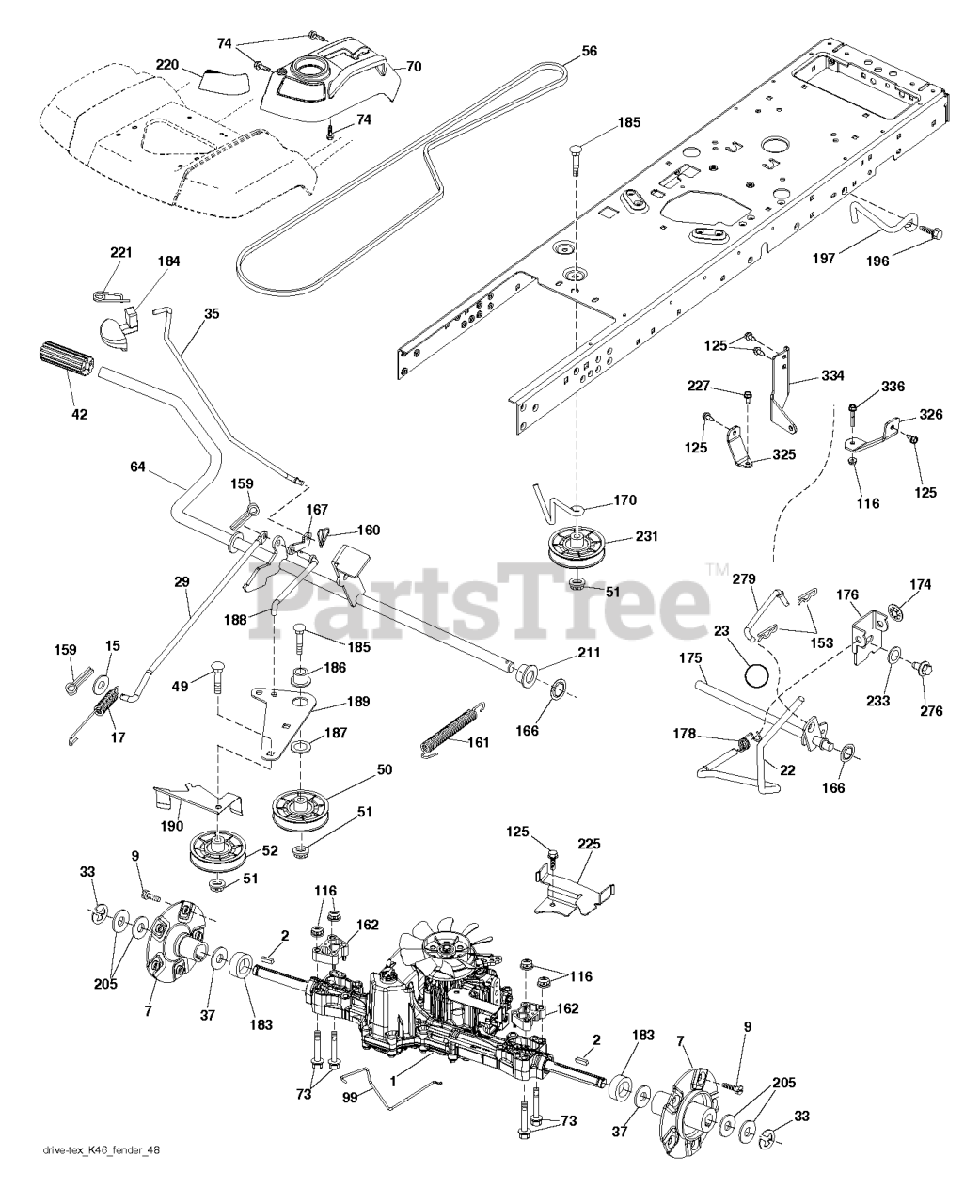

LGT 48 DXL (960430260-00) - Husqvarna 48" Yard Tractor (2017-09) DRIVE Parts Diagram

48" Yard Tractor

DRIVE Parts Diagram

  • Title
174

Husqvarna 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

225

Husqvarna 532403319

KEEPER.BELT.TRANSAXLE.K46

$6.99

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532130969

V-BELT.MOWER.92.40.42/K46

$31.99

$

In Stock, Qty 20+

0

7

Husqvarna 532199844

HUB.ASM.WHEEL.REAR.22"

$56.99

$

In Stock, only 1 left!

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

183

Husqvarna 532400424

SPACER.SPLIT.800X.350

$8.99

$

In Stock, only 2 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

326

Husqvarna 585993102

BRACKET.TRQ.STP.46.22".TIRE.RH

$4.99

$

In Stock, only 1 left!

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

233

Husqvarna 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 590605902

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

$9.49

$

In Stock, only 1 left!

0

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532406208

SHAFT ASM SHIFT

$26.99

$

Usually ships in 3-10 days

0

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

$17.99

$

In Stock, only 1 left!

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

176

Husqvarna 532196214

ARM.CLEVIS.ROD.SHIFT

$7.99

$

Usually ships in 3-10 days

0

33

$4.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

9

$3.99

$

Usually ships in 3-10 days

0

279

Husqvarna 532406207

LINK.SHIFT.T/A.K46.FEND.TX

$15.99

$

Usually ships in 3-10 days

0

334

Husqvarna 585882202

SWAY.ROD.BRACKET.K46.X431

$13.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 10

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

211

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

2

Husqvarna 532186211

KEY.SQUARE.187X2.500

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, Qty 9

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

162

Husqvarna 580457401

SPACER.TRANSAXLE.1"

$24.99

$

In Stock, only 2 left!

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

99

Husqvarna 532415743

ROD.SPRING.BYPASS.K46.TEX.GT

$10.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

205

$4.99

$

In Stock, Qty 20+

0

1

000000000

Note: Transaxle, TUFFTORQ K46 AW (532448354)

$

$

Not available

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

227

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

In Stock, only 1 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$6.49

$

Usually ships in 3-10 days

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

336

Husqvarna 587259601

BOLT.5/16-18X1-3/4.FLANGED.HEX

$

$

Not available

276

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

197

Husqvarna 585658601

CLUTCH.ANTIROTATION.WIREFORM.

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532197329

ROD.SHIFT.FENDER.STGT.

$85.99

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

70

Husqvarna 532439660

SUBASM.CONSOLE.HUSQ.GT.HYDRO

$91.99

$

Usually ships in 3-10 days

0

325

Husqvarna 585995702

BRACKET.TRQ.STP.46.22".TIRE.LH

$4.99

$

In Stock, only 1 left!

0
