LGT-310 (135-782-190) - White Outdoor Lawn Tractor (1985) Steering Assembly Parts Diagram

Lawn Tractor

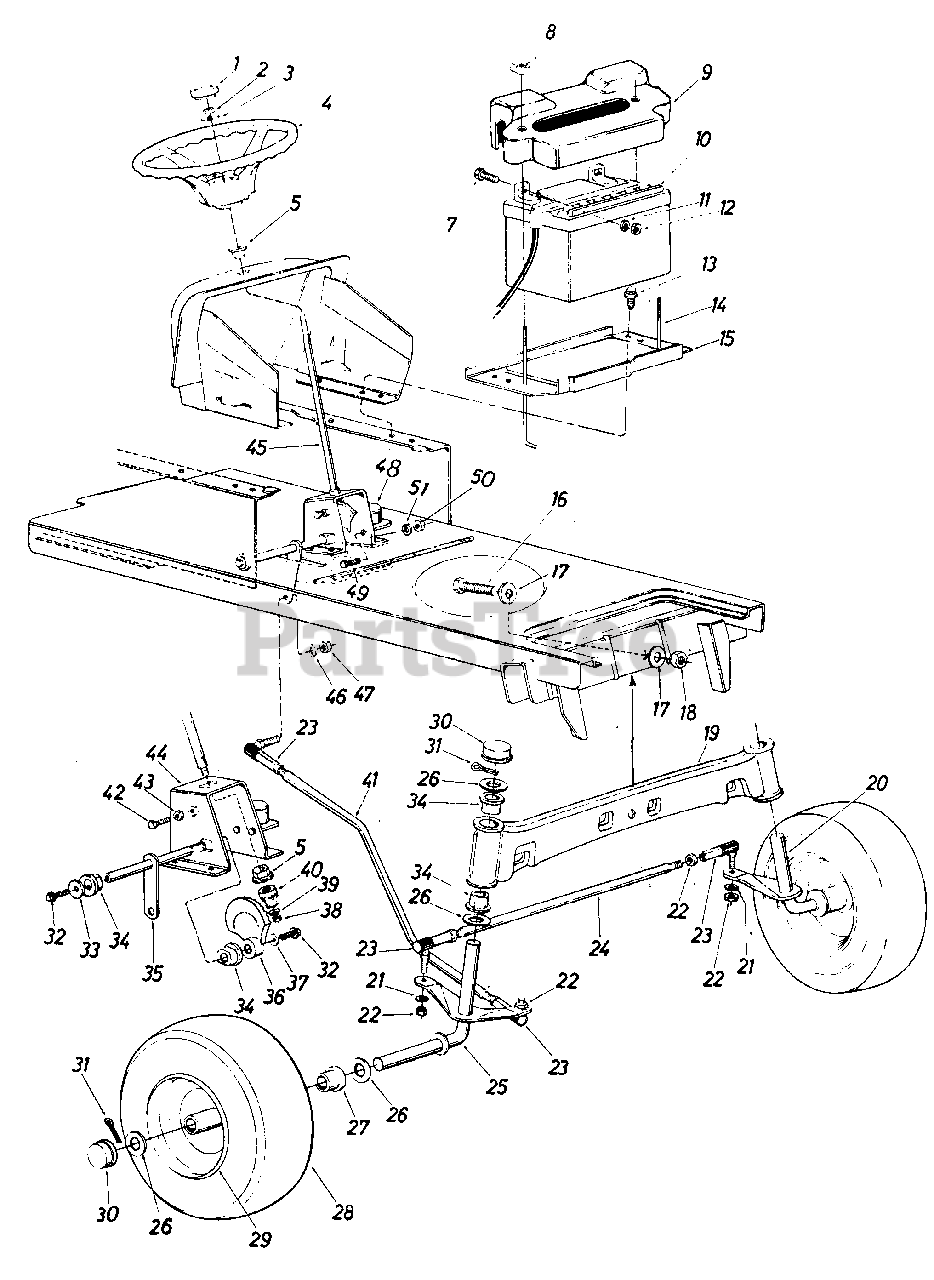

Steering Assembly Parts Diagram

  • Title

1

MTD 931-0220

Steering Wheel Cap

$9.49

$

In Stock, only 2 left!

0

2

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

3

MTD 736-0242

Bell-Wash. 5/16" I.D. x .87" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0356

Steering Wheel

Note: NLA

$

$

Not available

5

MTD 941-0225

Plastic Hex Bearing 5/8" I.D.

$7.49

$

In Stock, Qty 20+

0

7

MTD 710-0751

Hex Scr. 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 912-0113

Wing Nut Plastic 1/4-20 Thd.

$6.99

$

In Stock, only 2 left!

0

9

MTD 731-0707

Battery Cover

Note: NLA

$

$

Not available

10

MTD 925-0453G

12-V Battery

$

$

Not available

11

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 11

0

12

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

13

MTD 710-0599

Hex Thd. Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 911-0222A

Battery Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

15

MTD 13379

Battery Plate

Note: NLA

$

$

Not available

16

MTD 710-0533

Hex Scr. 5/8-18 x 2.50" Lg.*

Note: NLA

$

$

Not available

17

MTD 736-0282

Flat Wash. .66" I.D. x 2.25" O.D. x .17

Note: NLA

$

$

Not available

18

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

MTD 13865

Front Pivot Bar Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 13839

Front Axle Ass'y. L.H.

Note: NLA

$

$

Currently unavailable

21

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

23

MTD 923-0156

Ball Joint Ass'y.

$16.99

$

In Stock, Qty 20+

0

24

MTD 747-0301

Tie Rod

Note: NLA

$

$

Not available

25

MTD 13838

Front Axle Ass'y. R.H.

Note: NLA

$

$

Currently unavailable

26

MTD 936-0316

Fl-Wash. .780 I.D. x 1.59 O.D.
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

27

MTD 941-0382

Flange Bearing

$

$

Not available

28

MTD 734-0960

Front Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

28

MTD 734-0498

Front Wheel Tire Only

Note: NLA

$

$

Currently unavailable

29

MTD 734-0961

Front Wheel Rim Only

Note: NLA

$

$

Currently unavailable

29

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

29

MTD 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

30

MTD 931-0484A

Dust Cover

$6.49

$

In Stock, Qty 20+

0

31

MTD 914-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.*

$

$

Not available

32

MTD 710-0180

Hex Scr. 3/8-24 x .75" Lg. Grade 5

$6.99

$

In Stock, only 3 left!

0

33

MTD 936-0133

Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090
(Superseded to 736-0133)

$

$

Not available

34

MTD 941-0490

Flange Double "D" Brg. .753 I.D.

$13.99

$

In Stock, only 1 left!

0

35

MTD 12749

Steering Arm Shaft Ass'y.

Note: NLA

$

$

Not available

36

MTD 748-0236

Side Gear Steering

$101.99

$

In Stock, only 1 left!

0

37

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

39

MTD 936-0264

Fl-Wash. 5/16" I.D. x .62 O.D. x .059

$6.99

$

In Stock, only 3 left!

0

40

MTD 948-0237

Pinion Gear Steering

$21.99

$

In Stock, only 1 left!

0

41

MTD 747-0302

Drag Link

$84.99

$

In Stock, only 1 left!

0

42

MTD 710-0670

Hex Nylon Scr. 3/8-16 x 1.25 " Lg.

$6.99

$

Usually ships in 3-6 days

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

44

MTD 12850

Steering Gear Sup. Ass'y.

Note: NLA

$

$

Not available

45

MTD 738-0317

Steering Shaft

Note: NLA

$

$

Not available

46

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

48

MTD 925-0771

Solenoid

$35.99

$

In Stock, only 1 left!

0

49

MTD 710-0751

Hex Scr. 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

50

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

51

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 11

0
