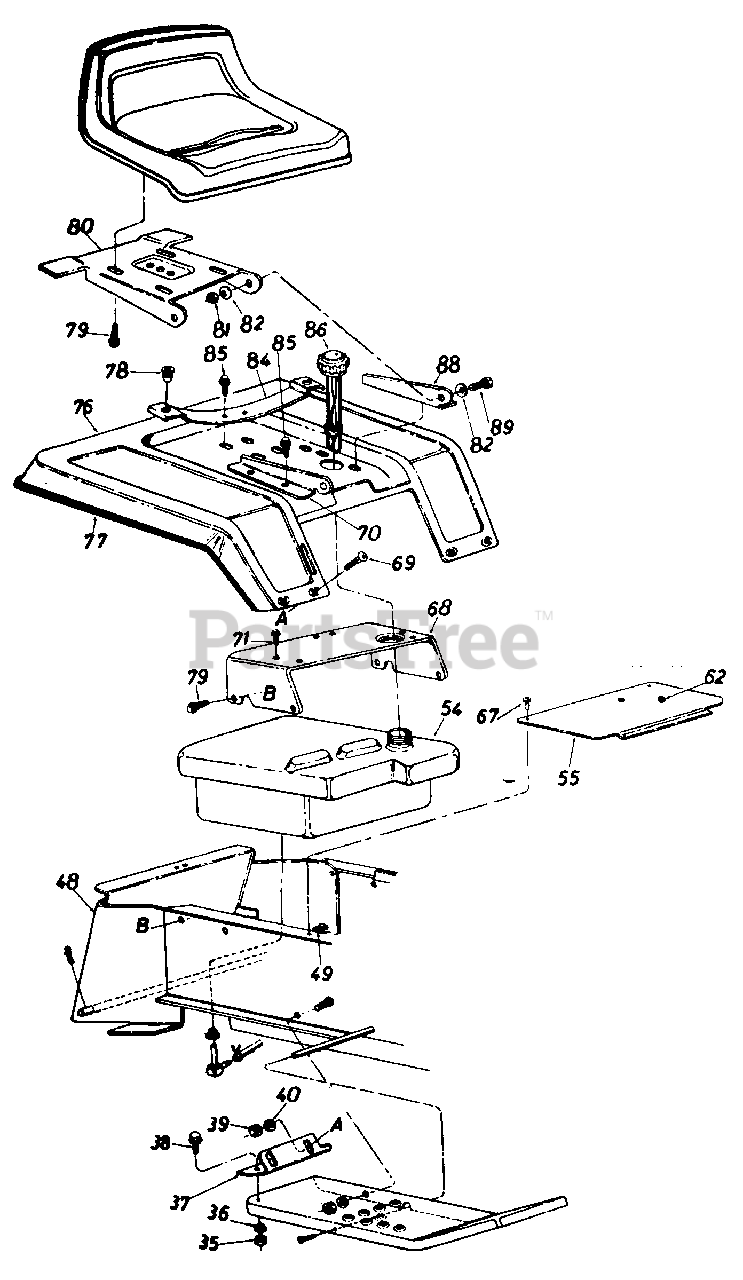

LGT-310 (135-782-190) - White Outdoor Lawn Tractor (1985) Seat Assembly Parts Diagram

Lawn Tractor

Seat Assembly Parts Diagram

  • Title

35

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0242

Bell-Wash. .34" I.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 15846-0637

Fender Brkt. R.H.

$

$

Not available

37

MTD 15847

Fender Brkt. L.H.

Note: NLA

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

39

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

40

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

48

MTD 13813

Hitch Plate

Note: NLA

$

$

Not available

49

MTD 726-0156

Speed Nut

Note: NLA

$

$

Not available

54

MTD 751-0367

Fuel Tank

Note: NLA

$

$

Not available

55

MTD 15832

Transmission Cover Ass'y.

Note: NLA

$

$

Currently unavailable

55

MTD 15831

Transmission Cover Ass'y.

Note: NLA

$

$

Currently unavailable

62

MTD 731-0405

Snap Bushing

$

$

Not available

67

MTD 726-0151

Fastener

Note: NLA

$

$

Not available

68

MTD 15849

Seat Mounting Channel

Note: NLA

$

$

Not available

69

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 15802

Seat Bracket R.H.

Note: NLA

$

$

Not available

71

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

76

MTD 15886

Rear Fender

Note: NLA

Variations

MTD 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

77

MTD 731-0511

Trim Strip 81"

$3.99

$

Usually ships in 3-6 days

0

78

MTD 731-0555A

Grommet

$

$

Not available

79

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

MTD 783-0039A

Seat Pivot Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

81

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

82

MTD 736-0242

Belleville Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

84

MTD 732-0431

Seat Spring

Note: NLA

$

$

Currently unavailable

85

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

86

MTD 751-0370

Gas Cap w/ Gauge

Note: NLA

$

$

Not available

88

MTD 15803

Seat Bracket L. H .

Note: NLA

$

$

Not available

89

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0
