LGT-310 (135-782-190) - White Outdoor Lawn Tractor (1985) Drive Assembly Parts Diagram

Lawn Tractor

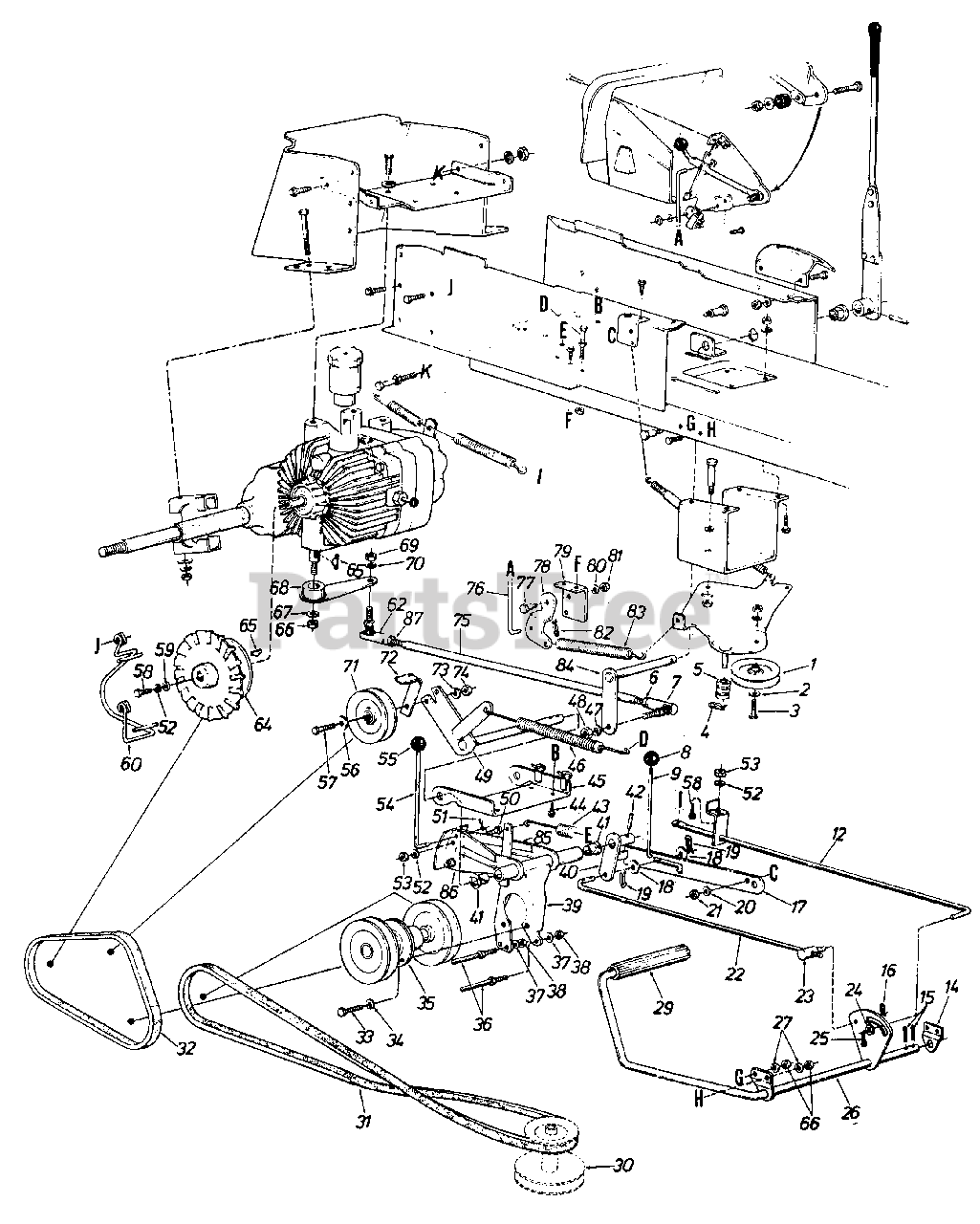

Drive Assembly Parts Diagram

  • Title

1

MTD 756-0487

4" Dia. 'V"-ldler Pulley

$48.99

$

In Stock, only 1 left!

0

2

MTD 936-0300

F I-Was h . 3/8 " 1. D .
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-3005

Hex Bolt 3/8-16 x 1.25" Lg.*

$3.99

$

In Stock, Qty 20+

0

4

MTD 914-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

MTD 948-0278

Spacer

$11.99

$

In Stock, Qty 5

0

6

MTD 712-0711

Hex Jam L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

7

MTD 923-0156

Ball Joint Ass'y. 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

8

MTD 720-0166

Ball Knob

$

$

Not available

9

MTD 747-0300

Parking Brake Link

Note: NLA

$

$

Currently unavailable

9

MTD 14027

Brake Rod Hanger

Note: NLA

$

$

Currently unavailable

12

MTD 747-0400

Brake Rod

Note: NLA

$

$

Not available

14

MTD 13859

Clutch Rod Brg. Brkt.

Note: NLA

$

$

Not available

15

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

16

MTD 914-0145

Hairpin Cotter 1/2" Dia.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

17

MTD 13832

Parking Brake Cam

Note: NLA

$

$

Not available

18

MTD 936-0101

Fl-Wash. .406 I.D. x 1.00" O.D. x .030

$4.99

$

Usually ships in 3-6 days

0

19

MTD 914-0145

Hairpin Cotter 1/2" Dia.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

20

MTD 936-0275

Fl-Wash. 5/16" Scr.*
(Superseded to 736-0275)

$

$

Not available

21

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 747-0306

Brake Cam Rod

Note: NLA

$

$

Not available

23

MTD 911-0198

Pivot Bushing

$13.99

$

In Stock, Qty 17

0

24

MTD 936-0275

Fl-Wash. .401" I.D. x .749" O.D. x .057" Thk.
(Superseded to 736-0275)

$

$

Not available

25

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

26

MTD 13856

Clutch Brake Pedal Ass'y.

Note: NLA

$

$

Currently unavailable

27

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

30

MTD 756-0328

Two-Step Engine Pulley 4.75" and 5.56"

$

$

Not available

31

MTD 954-0245

V-Belt 1/2" x 59" Lg.

$

$

Not available

32

MTD 954-0255

V-Belt 1/2" x 37" Lg.

$

$

Not available

33

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75" Lg.*

$

$

Not available

34

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

35

MTD 756-0324

Jack Shaft Ass'y.

$

$

Not available

36

MTD 711-0696

Stud 3/8-16 x 3.62" Lg.

Note: NLA

$

$

Currently unavailable

37

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

39

MTD 13823

Jack Shaft Mtg. Brkt. Ass'y.

Note: NLA

$

$

Not available

40

MTD 13871

Clutch Idler Horn Ass'y.

Note: NLA

$

$

Not available

41

MTD 941-0591

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 741-0591)

$

$

Not available

42

MTD 915-0114

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

43

MTD 732-0153

Ext. Spring (Jack Shaft)

$

$

Not available

44

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

45

MTD 13822

Idler Mtg. Brkt.

Note: NLA

$

$

Not available

46

MTD 932-0384

Ext. Spring (Drive Idler)

$14.99

$

In Stock, Qty 11

0

47

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

48

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

49

MTD 13815

Clutch Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

50

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.*

$3.99

$

In Stock, only 3 left!

0

51

MTD 914-0104

Internal Cotter Pin 5/16" Dia. Rod
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

52

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 9

0

53

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

54

MTD 747-0312

Relief Valve Lockout Rod

Note: NLA

$

$

Currently unavailable

55

MTD 720-0187

Ball Knob

$10.99

$

Usually ships in 3-6 days

0

56

MTD 936-0300

Fl-Wash. 3/8" I.D.
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-3005

Hex Bolt 3/8-16 x 1.25" Lg.*

$3.99

$

In Stock, Qty 20+

0

58

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

59

MTD 936-0176

Fl-Washer
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

60

MTD 14016

Belt Guard Ass'y.

Note: NLA

$

$

Not available

62

MTD 923-0351

Ball Joint Ass'y. 3/8-24 0 L.H. Thd.

$44.99

$

Usually ships in 3-6 days

0

64

MTD 756-0364

Transaxle Pulley w/ Fan

Note: NLA

$

$

Currently unavailable

65

MTD 714-0156

Hi-Pro Key 1/8" x 1/2" Dia.

Note: NLA

$

$

Not available

66

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

67

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

68

MTD 14022

Pintle Arm Ass'y.

Note: NLA

$

$

Currently unavailable

69

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

70

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

71

MTD 756-0487

4" "V"-ldler Pulley

$48.99

$

In Stock, only 1 left!

0

72

MTD 13819

Belt Guard (Clutch Idler)

Note: NLA

Variations

MTD 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

74

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

75

MTD 747-0321

Speed Control Rod

Note: NLA

$

$

Not available

76

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

77

MTD 938-0155

Shld. Scr. .437" Dia. x .162" Lg. (5/16-18)

$6.99

$

Usually ships in 3-6 days

0

78

MTD 13887A

Deck Control Pivot Brkt.

$

$

Not available

79

MTD 13833

Parking Brake Cam Mtg. Brkt.

Note: NLA

$

$

Not available

80

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

81

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

82

MTD 914-0104

Internal Cotter Pin 5/16" Rod
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

83

MTD 932-0384

Extension Spring

$14.99

$

In Stock, Qty 11

0

84

MTD 14034

Speed Control Shaft Ass'y.

Note: NLA

$

$

Not available

85

MTD 14025

Relief Valve Cam L.H.

Note: NLA

$

$

Currently unavailable

86

MTD 14026

Relief Valve Cam R.H.

Note: NLA

$

$

Currently unavailable

87

MTD 712-0312A

Hex Jam L-Nut 3/8-24 L.H. Thd.*

$3.99

$

Usually ships in 3-6 days

0
