LGT-310 (135-782-190) - White Outdoor Lawn Tractor (1985) Chassis Assembly Parts Diagram

Lawn Tractor

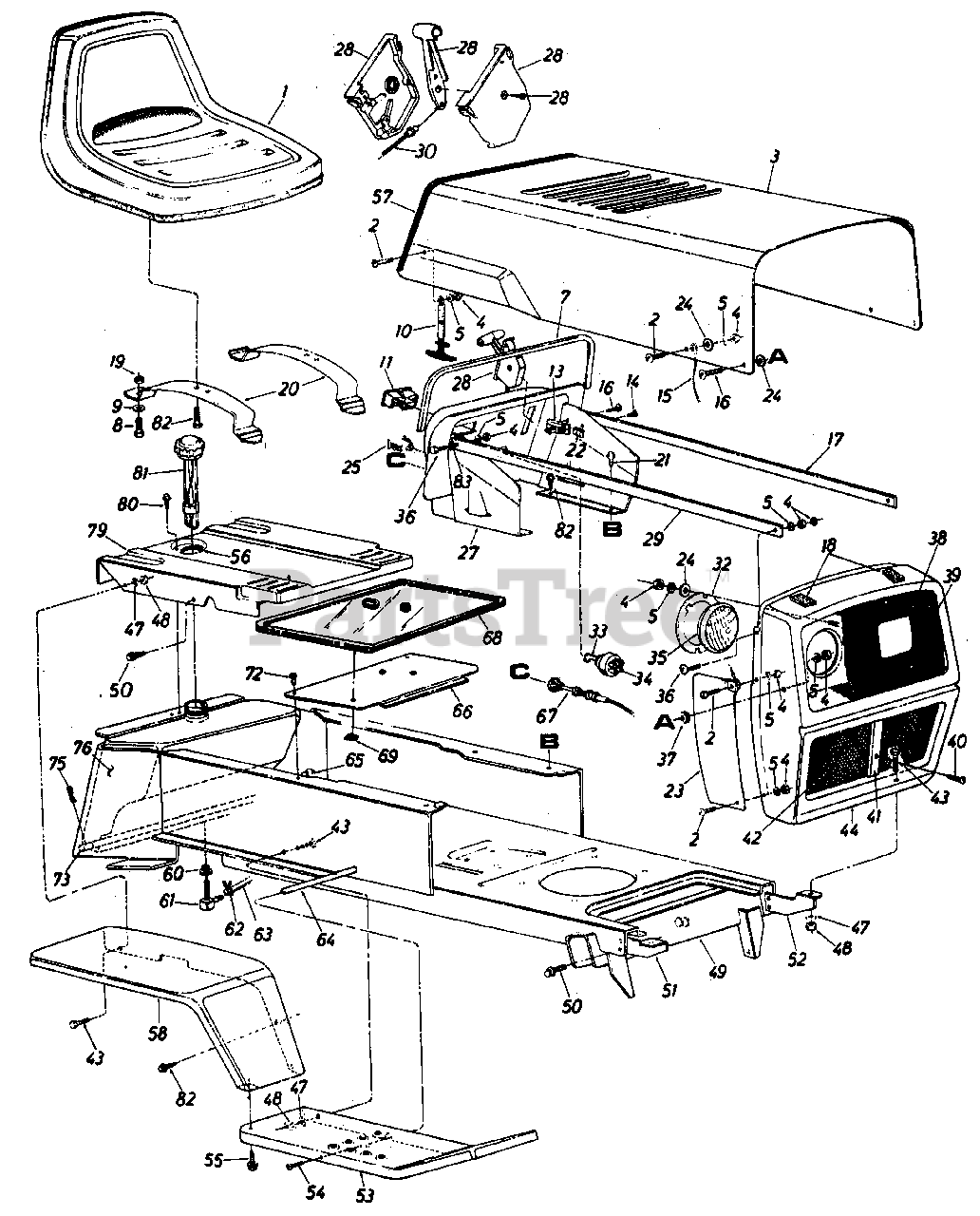

Chassis Assembly Parts Diagram

  • Title

1

MTD 757-0308

Seat Assembly

Note: NLA

$

$

Currently unavailable

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

3

MTD 13808

Hood

Note: NLA

Variations

MTD 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

5

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 11

0

7

MTD 731-0511

Vinyl Molding Strip 29"

$3.99

$

Usually ships in 3-6 days

0

8

MTD 710-0689

Hex Nylon Scr. 1/2-13 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 936-0192

Fl-Wash. .50" I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 18

0

10

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

11

MTD 925-0925

Ammeter

$31.99

$

Usually ships in 3-6 days

0

13

MTD 753-0685

Circuit Breaker 8 Amp.

$

$

Not available

14

MTD 710-0351

Hex Tap Scr. #10 x .50" Lg.*

$4.49

$

In Stock, only 2 left!

0

15

MTD 727-0199

Hood Stop

Note: NLA

$

$

Not available

16

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

17

MTD 749-0220

Grille Positioning Rod

Note: NLA

$

$

Not available

18

MTD 722-0135

PVC Foam Strip 1/2 x 1.00" x 2.00" Lg.

Note: NLA

$

$

Not available

19

MTD 912-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

20

MTD 13123-0637

Seat Spring

$

$

Not available

21

MTD 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0344

Speed Nut #10Z

Note: NLA

$

$

Not available

23

MTD 14748

Grille Side Panel R.H.

Note: NLA

$

$

Currently unavailable

23

MTD 14749

Grille Side Panel L.H.

Note: NLA

$

$

Currently unavailable

24

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 1 left!

0

25

MTD 925-0634

Light Switch

$17.99

$

In Stock, only 4 left!

0

27

MTD 15939

Dash Panel Ass'y.

Note: NLA

$

$

Currently unavailable

28

MTD 831-0796A

Throttle Control Box Comp.

$21.99

$

In Stock, only 2 left!

0

29

MTD 749-0220

Grille Positioning Rod

Note: NLA

$

$

Not available

30

MTD 946-0503

Throttle Control Wire

$

$

Not available

32

MTD 09960

Head Lamp Retainer

Note: NLA

$

$

Not available

33

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

34

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 8

0

35

MTD 925-0222

Head Lamp

$58.99

$

In Stock, Qty 5

0

36

MTD 710-0924

Truss Machine Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 735-0144

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

Note: NLA

$

$

Not available

38

MTD 731-0465

Headlight Bezel

$

$

Not available

39

MTD 710-0148

Hex Wash. Hd. Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

40

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

41

MTD 723-0347

Center Moulding

Note: NLA

$

$

Currently unavailable

42

MTD 13730

Grille Screen

Note: NLA

$

$

Not available

43

MTD 710-3008

Hex Scr. 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

44

MTD 13800

Grille Ass'y.

Note: NLA

$

$

Currently unavailable

47

MTD 936-0119

L-Wash. 5/16" Scr.*

$4.99

$

In Stock, Qty 20+

0

48

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 13820

Lower Frame Ass'y.

Note: NLA

$

$

Not available

50

MTD 710-0726

Hex Thd. Rolling AB Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 13862

Grille Mount Brkt. R.H.

Note: NLA

$

$

Not available

52

MTD 13863

Grille Mount Brkt. L.H.

Note: NLA

$

$

Not available

53

MTD 13828

Running Board R.H.

Note: NLA

$

$

Not available

53

MTD 13827

Running Board L.H.

Note: NLA

$

$

Not available

54

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

55

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

56

MTD 735-0179

Grommet (Gas Tank Neck)

Note: NLA

$

$

Currently unavailable

57

MTD 731-0511

Vinyl Moulding Strip 30"

$3.99

$

Usually ships in 3-6 days

0

58

MTD 13810

Fender Ass'y. R.H.

Note: NLA

$

$

Currently unavailable

58

MTD 13809

Fender Ass'y. L.H.

Note: NLA

$

$

Not available

60

MTD 935-0149

Bushing (Gas Tank)

$2.99

$

In Stock, Qty 20+

0

61

MTD 751-3054

90ø Nipple

Note: NLA

$

$

Currently unavailable

62

MTD 726-0199

Hose Clamp 3/8"

Note: NLA

$

$

Not available

63

MTD 751-10349-16

Gas Line 46" Lg.

$19.99

$

In Stock, Qty 11

0

64

MTD 738-0435

Running Board Rod

Note: NLA

$

$

Not available

65

MTD 712-0526

Speed Nut

Note: NLA

$

$

Not available

66

MTD 14023

Transmission Cover

Note: NLA

$

$

Currently unavailable

67

MTD 746-0394

Choke Control Comp.

$

$

Not available

68

MTD 731-0752

Transmission Cover

Note: NLA

$

$

Not available

69

MTD 1539-019

Speed Nut 1/4" Stud

$4.49

$

In Stock, Qty 10

0

72

MTD 710-0473

Truss Hd. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

73

MTD 738-0482

Hitch Rod

$

$

Not available

75

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

76

MTD 751-0259

Gas Tank

Note: NLA

$

$

Not available

79

MTD 13814

Seat Plate

Note: NLA

$

$

Not available

80

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 723-0346A

Gas Gauge

$40.99

$

In Stock, only 2 left!

0

82

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 936-0222

External Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available
