LGT 2554 (960450032-00) - Husqvarna 54" Lawn Tractor (2011-03) ENGINE Parts Diagram

54" Lawn Tractor

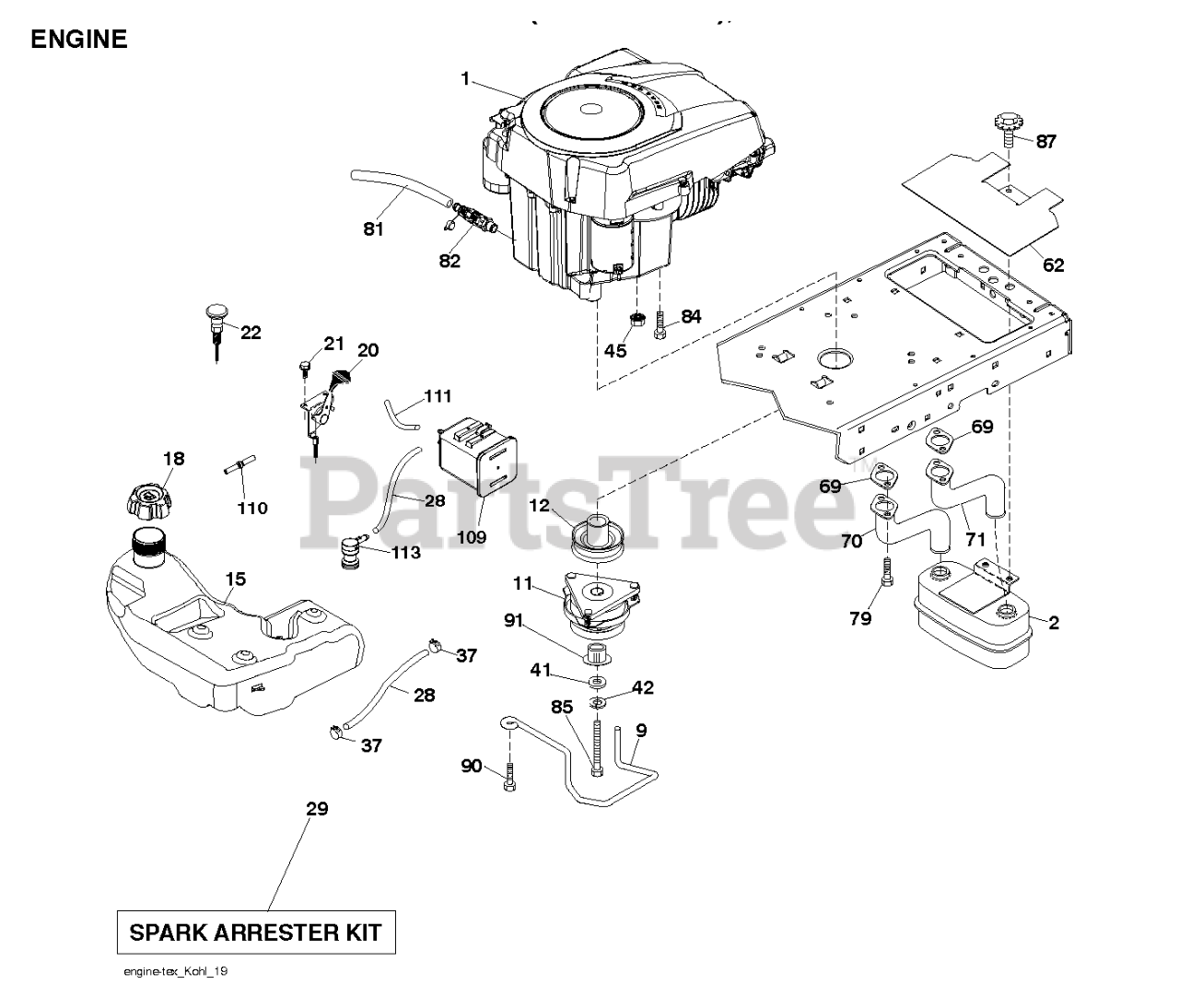

ENGINE Parts Diagram

  • Title

111

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532414152

RP TANK.ASM.FUEL.4GA.CARB
(Superseded to 532420723)

$

$

Not available

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

71

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

Note: RH

$20.99

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

70

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

Note: LH

$22.99

$

In Stock, only 1 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

$

$

Not available

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

109

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

20

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$53.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

1

Husqvarna 532439944

NEEDS DESCRIPTION

Note: ENGINE KOHL MODEL NO. SV730-3047

$

$

Currently unavailable

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0
