LGT 2554 (960450015-00) - Husqvarna 54" Lawn Tractor (2009-01) Mower Lift Parts Diagram

54" Lawn Tractor

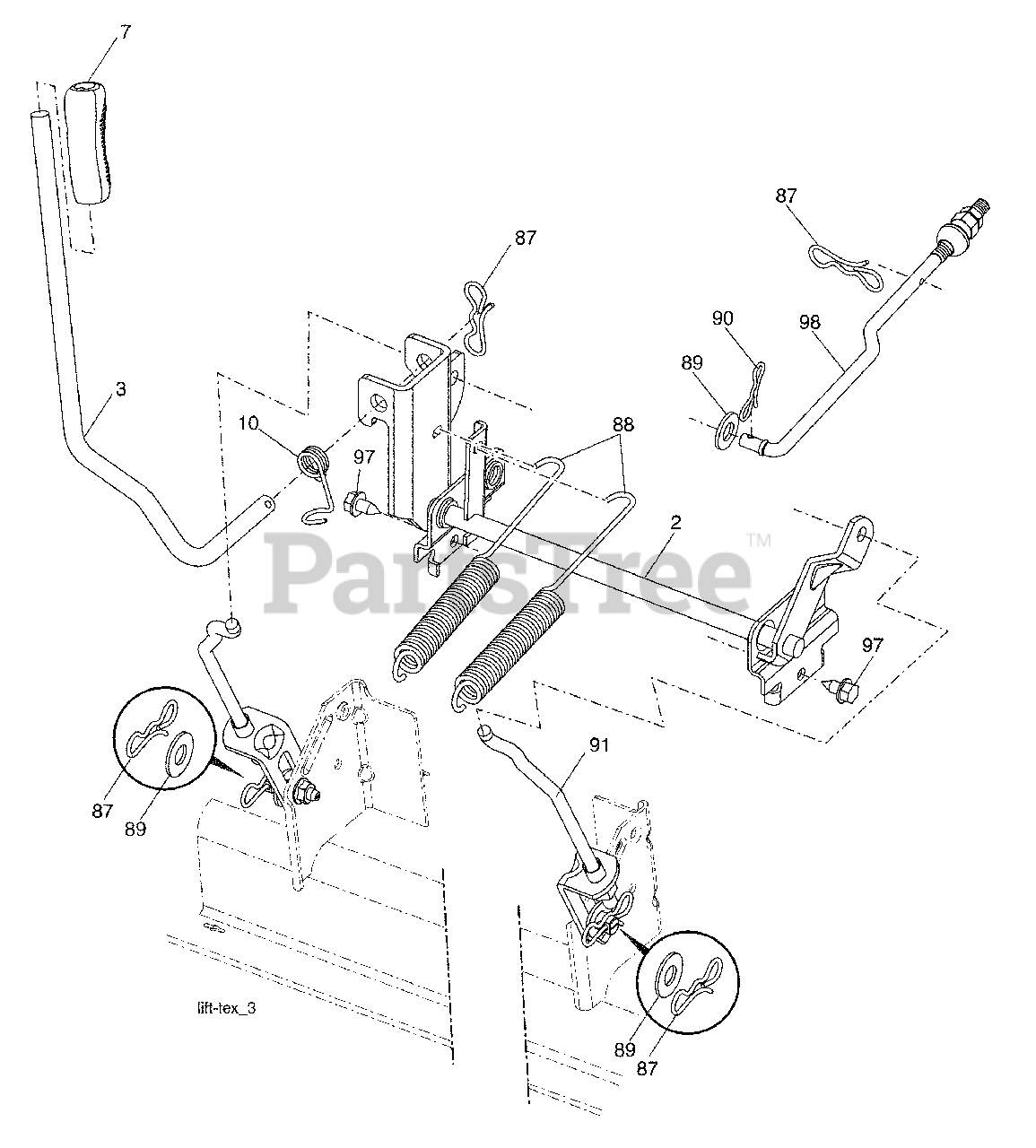

Mower Lift Parts Diagram

  • Title
2

Husqvarna 532195223

Shaft Asm., Lift
(Superseded to 532422027)

$80.99

$

In Stock, only 1 left!

0

3

Husqvarna 532195230

Lever Asm., Lift RH

$54.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532411555

Grip, Lever

$9.49

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

Spring Torsion

$6.49

$

In Stock, only 2 left!

0

87

Husqvarna 532194209

Pin Cotter 7/16 Bow Tie Lock

$3.99

$

In Stock, only 1 left!

0

88

Husqvarna 532195304

Spring Lift Assist
(Superseded to 532195301)

$13.99

$

Usually ships in 3-10 days

0

89

Husqvarna 819171912

Washer Clear Zinc

$7.49

$

In Stock, only 1 left!

0

90

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532403407

Link Lift Susp Mower Rear

$

$

Not available

97

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

98

Husqvarna 532195264

Link Lift Susp. Front Mower
(Superseded to 581506902)

$11.99

$

In Stock, Qty 16

0
