LGT 24 K54 (917240472) - Husqvarna 54" Lawn Tractor (2012-11) MOWER DECK / CUTTING DECK Parts Diagram

54" Lawn Tractor

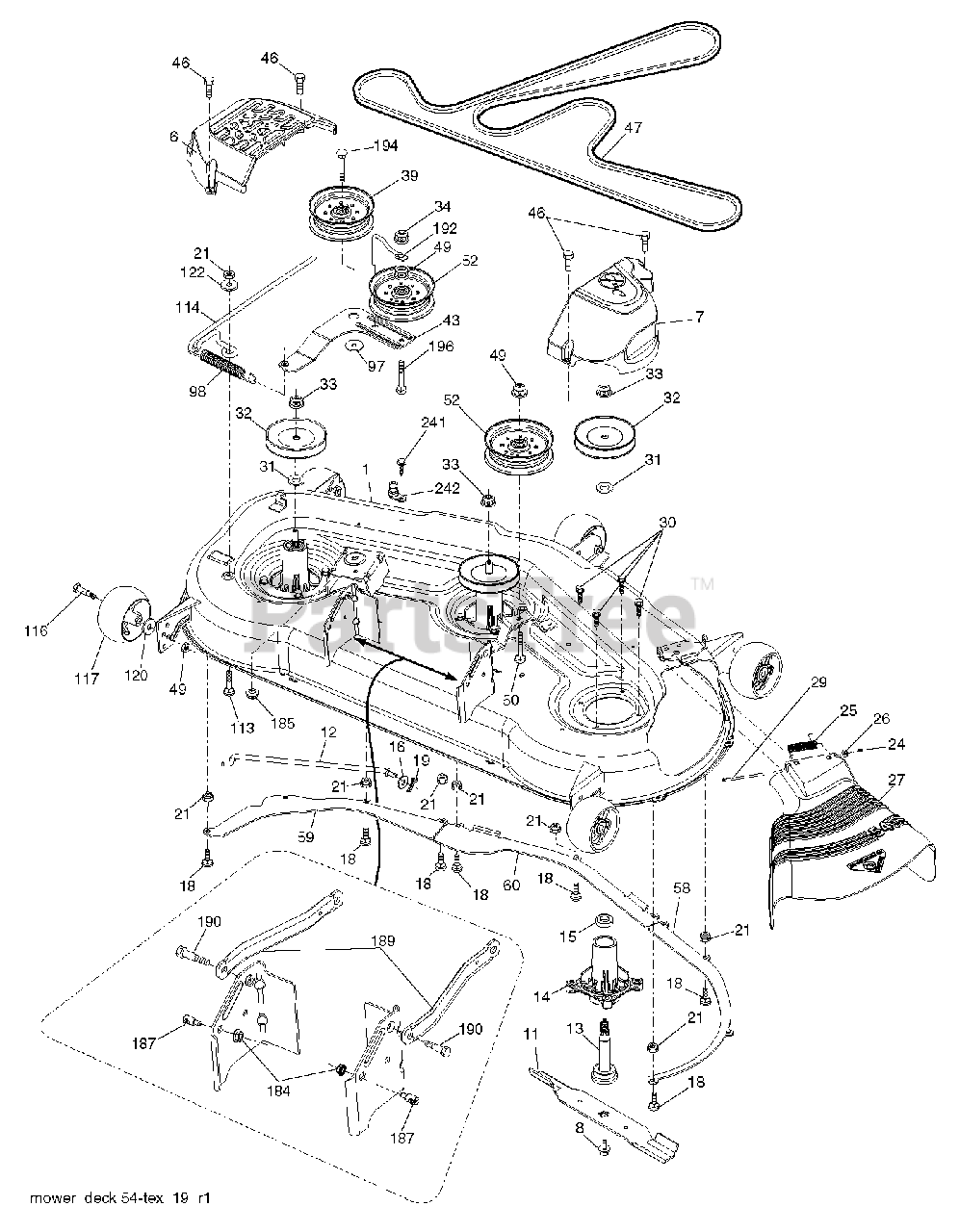

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532441547

DECK.WELDMENT.54"MS-498
(Superseded to 532199298)

$512.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532196066

COVER.MANDREL.LH.54"20

Note: LH

$34.99

$

In Stock, only 1 left!

0

7

Husqvarna 532197181

COVER.MANDREL.RH.54.20

Note: RH

$47.99

$

In Stock, only 1 left!

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187256

BLADE.BAGGING.54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 10

0

12

Husqvarna 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, only 2 left!

0

13

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 14

0

14

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

16

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 10

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532188938

DEFLECTOR
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Husqvarna 873980600

NUT SPECIAL T
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532197380

RB PULLEY.IDLER.4.50/HUB SPEC
(Superseded to 532196104)

Note: LH

$43.99

$

In Stock, Qty 14

0

43

Husqvarna 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532196103

BELT.DRIVE.54."2006
(Superseded to 587686701)

$62.99

$

In Stock, Qty 5

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

58

Husqvarna 532187342

BAFFLE.RIGHT.54"

Note: RIGHT

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532187344

BAFFLE.LEFT.54"

Note: LEFT

$

$

Not available

60

Husqvarna 532187607

BAFFLE CENTER 54" MOWER

Note: CENTER

$22.99

$

In Stock, only 1 left!

0

97

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 6

0

113

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532187556

ROD TENSION RELIEF

$24.99

$

In Stock, only 1 left!

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

185

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 12

0

187

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

184

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

189

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

Note: REAR

$14.99

$

In Stock, Qty 5

0

190

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

192

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

194

Husqvarna 874490736

BOLT.HEX.WASHER.HEAD.7/16-24X

$13.99

$

In Stock, only 4 left!

0

196

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 16

0

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

Husqvarna 532187292

RB MANDREL ASM. SERVICE
(Superseded to 587820301)

Note: MANDREL ASSEMBLY (Includes housing (key 14) shaft assembly (key 13) and bearing (key 33) only- pulley /washer and blade bolt /washer not included)

$56.99

$

In Stock, Qty 8

0

Husqvarna 532432907

DECK.SVC.54"E.HD/HP.5GW.WP.GRY
(Superseded to 532199298)

Note: COMPLETE

$512.99

$

Usually ships in 3-10 days

0
