LGT-1655 (137-776-190) - White Outdoor Lawn Tractor (1987) Transaxle Parts Diagram

Lawn Tractor

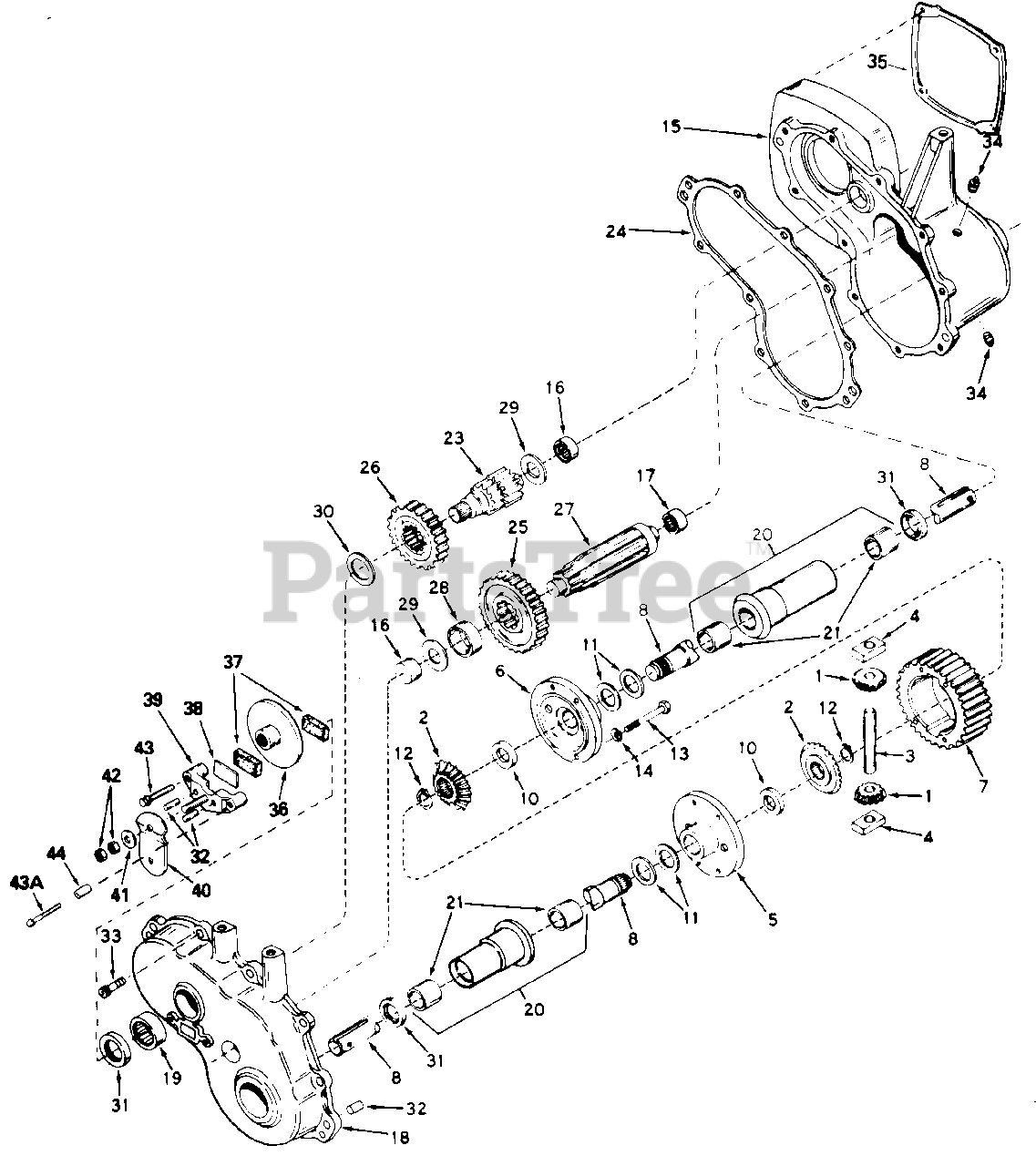

Transaxle Parts Diagram

  • Title

1

MTD TC-778014

Pinion, Bevel

Note: NLA

$

$

Currently unavailable

2

MTD TC-778039

Gear, Bevel

Note: NLA

$

$

Not available

3

MTD TC-786019

Pin, Drive

Note: NLA

$14.99

$

Usually ships in 3-12 days

0

4

MTD TC-786027

Block, Drive

Note: NLA

$10.99

$

In Stock, only 1 left!

0

5

MTD TC-774028A

Carrier, Differential

Note: NLA

$

$

Not available

6

MTD TC-774029A

Carrier, Differential

Note: NLA

$

$

Not available

7

MTD TC-778033A

Gear, Ring

Note: NLA

$

$

Currently unavailable

8

MTD TC-774434

Axle (16-1/64" Long)

Note: NLA

$

$

Currently unavailable

10

MTD TC-780107

Washer

$4.49

$

Usually ships in 3-12 days

0

11

MTD TC-780042

Washer, Thrust

Note: NLA

$4.49

$

Usually ships in 3-12 days

0

12

MTD 716-3001

Ring, Snap

$4.99

$

In Stock, only 1 left!

0

13

MTD 936-0329

Screw, Hex Hd. 1/4-20 x 21/4

$4.49

$

In Stock, Qty 11

0

14

MTD TC-792006

Lock Washer, 1/4"

Note: NLA

$

$

Currently unavailable

15

MTD TC-770052

Case Ass'y.

Note: NLA

$

$

Not available

16

MTD 941-0362

Bearing, Needle

$109.99

$

Usually ships in 3-6 days

0

17

MTD TC-780088

Bearing, Needle

Note: NLA

$21.99

$

Usually ships in 3-12 days

0

18

MTD TC-772035

Cover Ass'y.

Note: NLA

$

$

Not available

19

MTD TC-780089

Bearing, Needle

Note: NLA

$24.99

$

Usually ships in 3-12 days

0

20

MTD TC-782041

Housing Ass'y., Axle

Note: NLA

$

$

Currently unavailable

21

MTD TC-780054

Bushing

$10.99

$

Usually ships in 3-12 days

0

23

MTD TC-776207

Shaft, Brake

Note: NLA

$

$

Currently unavailable

24

MTD TC-788044A

Gasket, Case to Cover

$6.49

$

Usually ships in 3-12 days

0

25

MTD TC-778036

Gear, Output

Note: NLA

$76.99

$

Usually ships in 3-12 days

0

26

MTD TC-778037

Gear, Idler

Note: NLA

$56.99

$

Usually ships in 3-12 days

0

27

MTD TC-778041

Shaft, Output

Note: NLA

$

$

Not available

28

MTD TC-786017

Spacer

Note: NLA

$5.59

$

In Stock, only 2 left!

0

29

MTD TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

30

MTD TC-780090

Washer

$4.49

$

In Stock, Qty 7

0

31

MTD TC-788008

Seal, Oil

$8.49

$

In Stock, only 2 left!

0

32

MTD TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

33

MTD TC-792046

Screw, Hex Hd., Self-Tapping, 1/4-20 x 1

Note: NLA

$

$

Not available

34

MTD TC-792010

Plug, Pipe

Note: NLA

$

$

Not available

35

MTD TC-788046

Gasket

Note: NLA

$

$

Currently unavailable

36

MTD TC-790027

Disc, Brake

Note: NLA

$

$

Currently unavailable

37

MTD TC-799021A

Pad, Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

38

MTD TC-790007

Plate, Brake Pad

$5.99

$

In Stock, only 1 left!

0

39

MTD TC-790025

Holder, Brake Pad

$17.99

$

Usually ships in 3-12 days

0

40

MTD TC-790010

Lever, Brake

Note: NLA

$

$

Currently unavailable

41

MTD 736-3078

Washer, Flat

$4.49

$

In Stock, only 3 left!

0

42

MTD 912-0237

Lock Nut 5/16-24
(Superseded to 712-0237)

$

$

Not available

43

MTD TC-792073A

Screw, Hex Hd., Self-Tapping, 1/4-20 x 11/4

$1.99

$

Usually ships in 3-12 days

0

43A

MTD TC-792085A

Screw, Hex Hd., Self-Tapping, 1/4-20 x 2-1/4

$4.49

$

In Stock, only 1 left!

0

44

MTD TC-786066

Spacer

Note: NLA

$4.49

$

In Stock, only 2 left!

0
