LGT-1655 (137-776-190) - White Outdoor Lawn Tractor (1987) Rear Drive Mounting Assembly Parts Diagram

Lawn Tractor

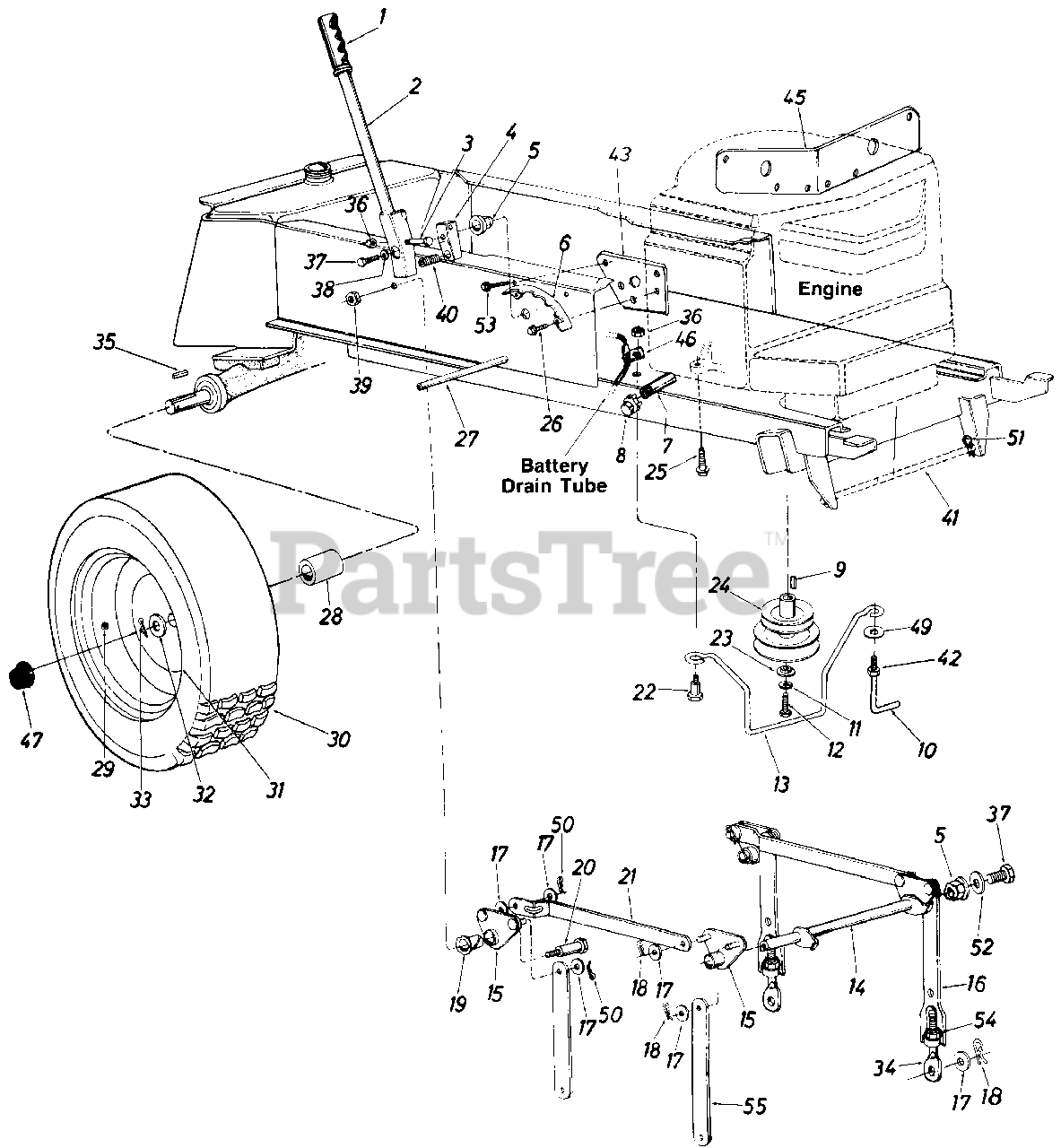

Rear Drive Mounting Assembly Parts Diagram

  • Title

1

MTD 920-0233

Grip

$

$

Not available

2

MTD 14233

Lift Handle Ass'y.

Note: NLA

$

$

Not available

3

MTD 710-0805

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 748-0274A

Lift Shaft Drive

$

$

Not available

5

MTD 941-0225

Plastic Hex Brg. 5/8" I.D.

$7.49

$

In Stock, Qty 20+

0

6

MTD 14231-0637

Index Brkt. Deck Lift

$

$

Not available

7

MTD 937-0164

Pipe Nipple 3/8-18 Npt.

$

$

Not available

8

MTD 737-0143

Pipe Cap 3/8-18 Npt.

Note: NLA

$

$

Not available

9

MTD 714-0118

Sq. Key 1/4" x 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

10

MTD 747-0216

Belt Guard Lock Pin

$

$

Not available

11

MTD 936-0171

L-Wash. 7/16" Scr.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

12

MTD 710-0757

Hex Scr. 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

13

MTD 747-0299

Belt Guard

Note: NLA

$

$

Currently unavailable

14

MTD 13889

Lift Shaft Ass'y.

$

$

Not available

15

MTD 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

MTD 16092

Adj. Deck Lift Link

Note: NLA

$

$

Not available

17

MTD 936-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 18

0

18

MTD 914-0101

Hairpin Cotter
(Superseded to 714-0101)

$

$

Not available

19

MTD 941-0591

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 741-0591)

$

$

Not available

20

MTD 938-0445A

Shld. Scr. 5/8" Dia. x .96" Lg. 3/8-16

$

$

Not available

21

MTD 13790-0637

Connecting Link

$

$

Not available

22

MTD 938-0296

Shld. Scr. .437 Dia. x .268 0 Lg. 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0322

Flat Wash. .44" I.D. x 1.25" O.D. x .17

$9.49

$

In Stock, Qty 8

0

24

MTD 756-0328

Two-Step Engine Pulley 4.75" & 5.56

$

$

Not available

25

MTD 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

26

MTD 710-0600

Hex Thd. Rolling Scr. 5/16-24 x .50" Lg .

$3.49

$

Usually ships in 3-6 days

0

27

MTD 738-0435

Running Board Rod

Note: NLA

$

$

Not available

28

MTD 750-0490

Spacer 1.0" I.D. x 1.25" O.D. x 2.12" Lg.

Note: NLA

$

$

Not available

29

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

30

MTD 734-1004

Rear Wheel Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

30

MTD 734-0967

Rear Wheel Tire Only

Note: NLA

Variations

MTD 734-0967-0901

No Longer Available TIRE-TUBEL - Carlisle (0901)

$

$

Not available

MTD 734-0967-0902

No Longer Available - Dico (0902)

$

$

Not available

MTD 734-0967-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

31

MTD 734-1015

Rear Wheel Rim Only

Note: NLA

Variations

MTD 734-1015-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1015-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1015-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

32

MTD 936-0345

Flat Washer
(Superseded to 736-04605)

$4.49

$

In Stock, Qty 12

0

33

MTD 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

34

MTD 711-0773

Eye Bolt Adj. Link 1/2-13 Thd.

$

$

Not available

35

MTD 714-0120

Sq. Key 1/4 x 3.0"

Note: NLA

$

$

Not available

36

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

37

MTD 710-0237

Hex Scr. 5/16-24 x .62" Lg.*

$4.49

$

In Stock, only 1 left!

0

38

MTD 936-0119

L-Wash. 5/16" Scr.

$4.99

$

In Stock, Qty 20+

0

39

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

40

MTD 932-0369

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

41

MTD 738-0392

Deck Connecting Rod

$

$

Not available

42

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

43

MTD 14170-0637

Index Brkt. Reinforcement Plate

$

$

Not available

45

MTD 14282

Heat Sheild

Note: NLA

$

$

Currently unavailable

46

MTD 726-0175

Mounting Clamp

$

$

Not available

47

MTD 731-0556

Hub Cap

$4.99

$

In Stock, only 4 left!

0

49

MTD 736-0242

Belle-Wash. .39" I.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 914-0111

Cotter Pin .09 Dia. x 1.0" Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

51

MTD 914-0149B

Int. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

52

MTD 936-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125
(Superseded to 736-0231)

$

$

Not available

53

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

54

MTD 912-0206

Hex Nut '/2-13 Thd.
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

55

MTD 13791

Deck Link

Note: NLA

$

$

Not available

MTD 751-0444

Muffler

Note: NLA

$

$

Not available
