46" Lawn Tractor

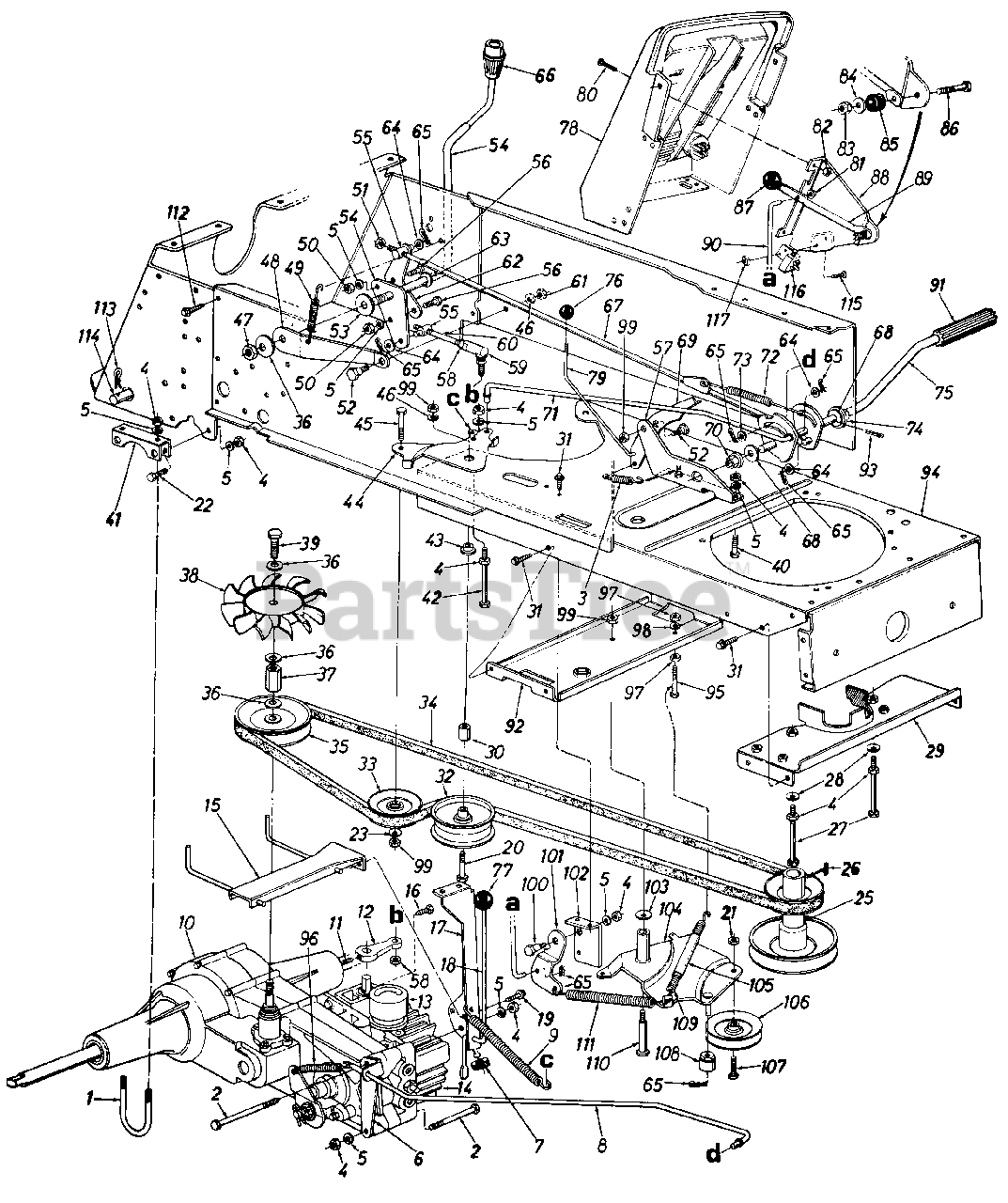

Drive Mounting Assembly Parts Diagram

  • Title

1

White Outdoor 711-0827

U-Bolt 5/16-18 x 3.25" Lg.

$

$

Not available

2

White Outdoor 710-3196

Hex Patch Bolt 5/16-18 x 4.5" Lg. (Gr. 5)

$

$

Not available

3

White Outdoor 732-0445

Ext. Spring .5" O.D. x 1.55"

$8.99

$

In Stock, only 2 left!

0

4

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 17355

Brake Rod Guide Brkt.

$

$

Not available

7

White Outdoor 735-0126

Rubber Wash. .33" I.D. x .87"
(Superseded to 735-0126A)

$

$

Not available

8

White Outdoor 747-0731

Brake Rod

$

$

Not available

9

White Outdoor 732-0384

Ext. Spring .62" O.D. x 6.12" Lg.
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

10

White Outdoor 717-0950

Transaxle

$

$

Not available

11

710-0985

Set Screw 5/16-24 x .38" Lg.

$

$

Not available

12

White Outdoor 748-0328

Pintle Shift Lever
(Superseded to 748-0328A)

$

$

Not available

13

White Outdoor 717-3049

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0

14

White Outdoor 717-0940

Hydrostatic Pump

$

$

Not available

15

White Outdoor 16929

Belt Guard Ass'y.

$

$

Not available

16

White Outdoor 710-3195

Hex Bolt 5/16-18 x 4.5" Lg. (Gr. 5)

$7.49

$

Usually ships in 3-6 days

0

17

16807

Transaxle Torque Bracket

$

$

Not available

18

White Outdoor 747-0570

Transaxle Control Rod

$

$

Not available

19

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8

$4.99

$

Usually ships in 3-6 days

0

20

White Outdoor 710-3066

Hex Bolt 3/8-16 x 2.75" Lg.

$5.49

$

In Stock, Qty 7

0

21

White Outdoor 712-0214

Hex Cent. Lock Nut 3/8-16 Thd.

$6.49

$

In Stock, only 3 left!

0

22

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 756-0540

Engine Pulley

$

$

Not available

26

White Outdoor 714-0118

Sq. Key 1/4 x 1.5" Lg.

$6.99

$

In Stock, only 4 left!

0

27

White Outdoor 710-0833

Hex Bolt 5/16-18 x 5.25" Lg.

$9.49

$

In Stock, only 1 left!

0

28

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17357

Belt Keeper Brkt. Ass'y.
(Superseded to 17358D-0637)

$

$

Not available

30

White Outdoor 711-0396

Spacer .375" I.D. x .75" Lg.

$11.99

$

Usually ships in 3-6 days

0

31

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 756-0515

Fl-ldler Pulley 3.25" Dia.

$

$

Not available

33

White Outdoor 756-0116

V-Belt Idler
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

34

White Outdoor 754-0365

V-Belt
(Superseded to 954-0365)

$77.99

$

Usually ships in 3-6 days

0

35

White Outdoor 756-0539

Transmission Pulley 4.25" O.D.

$

$

Not available

36

White Outdoor 736-0112

Bell-Wash. .56" I.D. x 1.5"

$9.99

$

Usually ships in 3-6 days

0

37

White Outdoor 712-0356

Fan Adapter Nut 9/16-18 Thd.

$

$

Not available

38

White Outdoor 731-0974

Fan

$

$

Not available

39

White Outdoor 710-1043

Hex Bolt 9/16-18 x .5" Lg.

$

$

Not available

40

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 16925

Transaxle Mtg. Bracket

$

$

Not available

42

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

43

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

44

16926

Clutch Idler Bracket

$

$

Not available

45

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, Qty 11

0

46

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

48

White Outdoor 16931

Speed Control Rod Torque Brkt.

$

$

Not available

49

732-0609

Ext. Spring 2.5" Lg.

$

$

Not available

50

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

51

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 738-0147

Shld. Bolt .50" Dia. x .170"

$

$

Not available

53

White Outdoor 736-0428

Fiber Washer .54" I.D. x 1.75"

$

$

Not available

54

White Outdoor 16930

Speed Control Handle Ass'y.

$

$

Not available

55

White Outdoor 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

56

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

57

17348

Foot Pedal Mtg. Brkt.

$

$

Not available

58

White Outdoor 712-0312

Hex Jam Nut 3/8-24 L.H. Thd.
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

59

White Outdoor 723-0351

Ball Joint Ass'y.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

60

747-0508

Control Rod 3/8-24 x 3.75" Lg.

$

$

Not available

61

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

62

White Outdoor 16940

Speed Selector Handle Brkt.

$

$

Not available

63

White Outdoor 736-0257

Fl-Wash. .531" I.D. x 1.25" O.D.
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

64

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

65

White Outdoor 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

67

17416

Neutral Return Rod

$

$

Not available

68

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

69

17351

Parking Brake Lock Brkt.

$

$

Not available

70

White Outdoor 741-0225

Hex Flange Brg. .634" Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

71

747-0728

Clutch Idler Rod

$

$

Not available

72

White Outdoor 732-0608

Extension Spring 8" Lg.

$

$

Not available

73

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

74

White Outdoor 748-0209

Flange Bearing w/Flats
(Superseded to 948-0209)

$22.99

$

Usually ships in 3-6 days

0

75

17350

Foot Pedal Ass'y.

$

$

Not available

76

White Outdoor 720-0166

Ball Knob Brake

$

$

Not available

77

White Outdoor 720-0187

Ball Knob 1/4-20 Thd.

$10.99

$

Usually ships in 3-6 days

0

78

White Outdoor 731-0957

Dash Panel Ass'y.

$

$

Not available

79

White Outdoor 747-0722

Parking Brake Link

$

$

Not available

80

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

81

White Outdoor 726-0106

Push Nut 1/4" O.D. Rod

$3.99

$

Usually ships in 3-6 days

0

82

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 712-0107

Hex Patch L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

84

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

85

White Outdoor 736-0126

Rubber Wash. .33" I.D. x .87"
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

86

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

87

White Outdoor 720-0165

Knob-Blade Clutch
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

88

White Outdoor 13950A

Deck Clutch Cont. Brkt.

$

$

Not available

89

White Outdoor 747-0513

Blade Clutch Lever

$

$

Not available

90

White Outdoor 747-0708

Deck Control Rod
(Superseded to 747-0708A)

$

$

Not available

91

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

92

White Outdoor 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

93

White Outdoor 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

94

White Outdoor 17359

Lower Frame

$

$

Not available

95

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

96

White Outdoor 732-0607

Ext. Spring 3.675" Lg.

$

$

Not available

97

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

98

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

99

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

100

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

101

White Outdoor 13887

Deck Control Pivot Brkt.
(Superseded to 13887A)

$

$

Not available

102

White Outdoor 13833

Parking Brake Mtg. Brkt.
(Superseded to 13833A)

$

$

Not available

103

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

104

White Outdoor 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

105

White Outdoor 731-0483

Convoluted Conduit 4" Lg.
(Superseded to 731-0757-4)

$15.99

$

In Stock, only 2 left!

0

106

White Outdoor 756-0293A

V-Belt Idler
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

107

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

108

White Outdoor 748-0278

Spacer
(Superseded to 948-0278)

$11.99

$

In Stock, Qty 5

0

109

White Outdoor 732-0308

Ext. Spring 6.37" Lg.
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

110

White Outdoor 738-0129

Shld. Bolt .498" Dia. x 2.05"

$11.99

$

In Stock, only 1 left!

0

111

White Outdoor 732-0478

Ext. Spring 6.12" Lg.
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 10

0

112

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

113

White Outdoor 714-0147

Hitch Pin Clip

$4.99

$

In Stock, Qty 6

0

114

White Outdoor 738-0482

Hitch Rod

$

$

Not available

115

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0

116

White Outdoor 725-0465A

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

117

White Outdoor 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0
