LGT-165 (139-786-190) - White Outdoor 46" Lawn Tractor (1989) Body Assembly Parts Diagram

46" Lawn Tractor

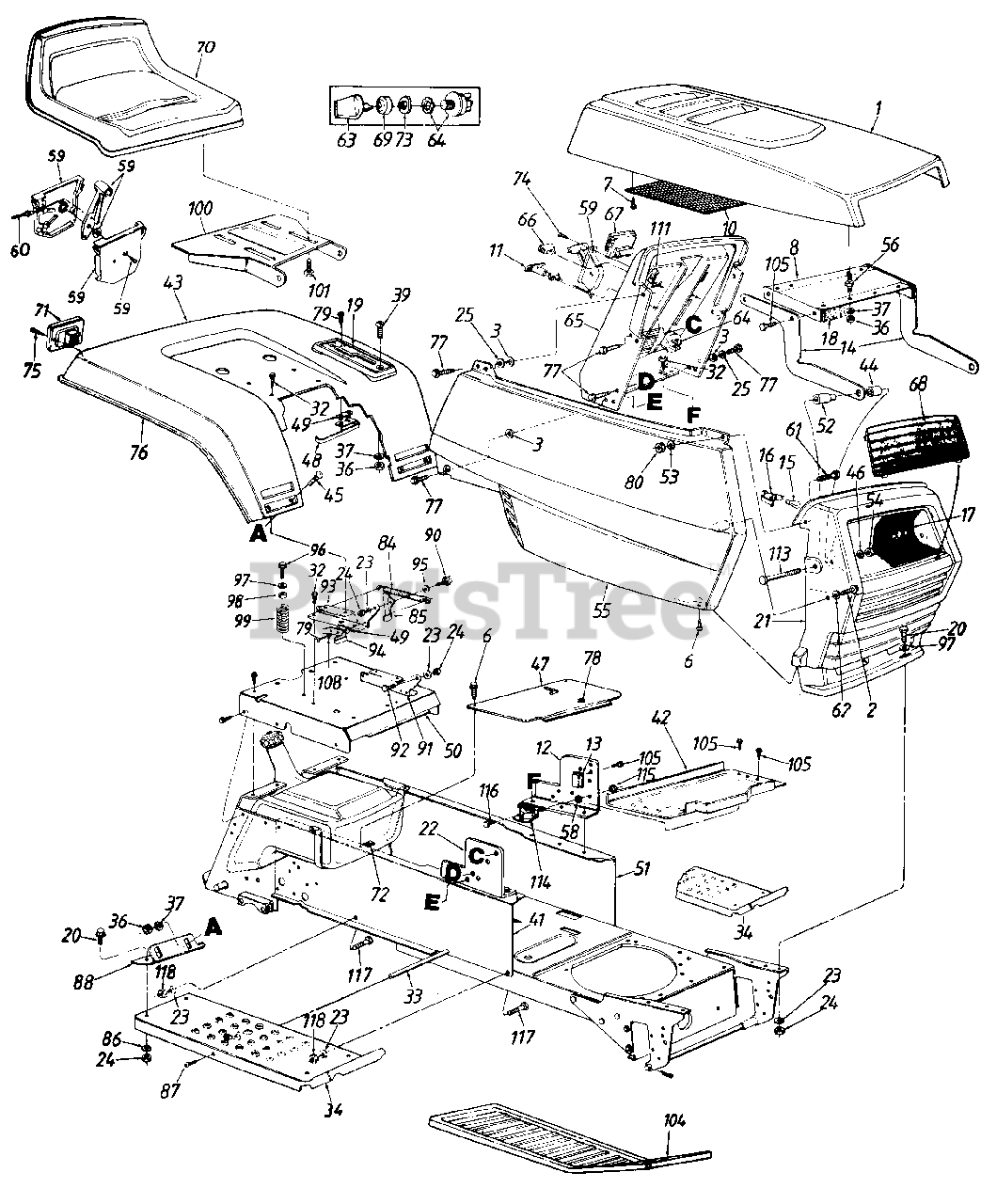

Body Assembly Parts Diagram

  • Title

1

White Outdoor 731-1036

Hood

Variations

White Outdoor 731-1036-0629

HOOD - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 731-1036-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 731-1036-0662

HOOD OYSTER GRAY - OYSTER GRAY (0662)

$

$

Not available

$

$

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 710-0200

Hex Wash Hd. AB-Tap Scr. #8 x .5" Lg.

$

$

Not available

8

White Outdoor 16903

Hood Plate
(Superseded to 16903A-0637)

$

$

Not available

10

White Outdoor 723-0416

Screen

$

$

Not available

11

White Outdoor 746-3022B

Choke Control
(Superseded to 946-3022B)

$39.99

$

In Stock, only 4 left!

0

12

White Outdoor 17294

Dash Support Brkt.-L.H.

$

$

Not available

13

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

14

White Outdoor 16902

Hood Hinge

$

$

Not available

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

White Outdoor 725-1058

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

17

777-8516

Reflector-Headlight

$

$

Not available

18

White Outdoor 722-0199

Foam Seal

$

$

Not available

19

731-1053

Speed Control Index Brkt.

$

$

Not available

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 731-1037A

Grille

Variations

White Outdoor 731-1037A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 731-1037A-0638

GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

22

White Outdoor 17293

Dash Support Bracket-R.H.
(Superseded to 17293B-0637)

$

$

Not available

23

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 738-0435

Running Board Rod

$

$

Not available

34

White Outdoor 16922

Running Board-R.H.

Variations

White Outdoor 16922-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16922-0499

No Longer Available RUNNING BOARD-RH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16922-0629

No Longer Available RUNNING BOARD-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16922-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16922-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16922-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 16922-0650

No Longer Available RUNNING BOARD-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 16922-0660

No Longer Available RUNNING BOARD-RH - TEAL (0660)

$

$

Not available

White Outdoor 16922-0662

No Longer Available RUNNING BOARD-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16922-0665

No Longer Available RUNNING BOARD-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 16922-0667

No Longer Available RUNNING BOARD-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 16922-0674

No Longer Available RUNNING BOARD-RH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 16922-0686

No Longer Available RUNNING BOARD-RH - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 16922-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

White Outdoor 16922-0691

No Longer Available RUNNING BOARD-RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 16922-0692

No Longer Available RUNNING BOARD-RH - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 16922-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

White Outdoor 16921

Running Board-L.H.

Variations

White Outdoor 16921-0483

No Longer Available RUNNING BOARD-LH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16921-0498

No Longer Available RUNNING BOARD-LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 16921-0499

No Longer Available RUNNING BOARD-LH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16921-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16921-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16921-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16921-0648

No Longer Available RUNNING BOARD-LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 16921-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 16921-0662

No Longer Available RUNNING BOARD-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16921-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 16921-0667

No Longer Available RUNNING BOARD-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 16921-0674

No Longer Available RUNNING BOARD-LH - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 16921-0686

No Longer Available RUNNING BOARD-LH - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 16921-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

White Outdoor 16921-0691

No Longer Available RUNNING BOARD-LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 16921-0692

No Longer Available RUNNING BOARD-LH - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 16921-0709

No Longer Available RUNNING BOARD-LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

White Outdoor 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

41

White Outdoor 17360

R.H. Side Frame

$

$

Not available

42

White Outdoor 13379

Battery Carrier

$

$

Not available

43

White Outdoor 17330

Rear Fender

Variations

White Outdoor 17330-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17330-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 17330-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17330-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 17330-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17330-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

White Outdoor 17393

Transmission Panel
(Superseded to 17393B-0637)

$

$

Not available

48

White Outdoor 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

49

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

White Outdoor 16848

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

51

White Outdoor 17361

L.H. Side Frame

$

$

Not available

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

White Outdoor 17448

Side Cover-R.H.

$

$

Not available

White Outdoor 17447

Side Cover-L.H.

Note: (Not Shown)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

58

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

65

White Outdoor 731-0957

Dash Panel

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

70

White Outdoor 757-0351

Seat Ass'y.

$

$

Not available

71

725-3018

Taillight Ass'y.

$

$

Not available

72

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

76

White Outdoor 731-0511

Trim Strip-81"

$3.99

$

Usually ships in 3-6 days

0

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 731-0405

Snap Bushing

$

$

Not available

79

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

84

White Outdoor 732-0581

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

85

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

86

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 710-0323

Truss Machine Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

88

White Outdoor 17406

Fender Bracket-R.H.
(Superseded to 17406-0637)

Variations

White Outdoor 17406-0637

BRACKET-FENDER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17407

Fender Bracket-L.H.

Variations

White Outdoor 17407-0637

No Longer Available BRKT-FENDER LH - POWDER BLACK (0637)

$

$

Not available

$

$

90

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 17243

Seat Pivot Brkt. Support-L.H.

$

$

Not available

92

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

93

White Outdoor 17244

Seat Pivot Brkt. Support-R.H.

$

$

Not available

94

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

95

White Outdoor 736-0141

Spr.-Wash..445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

96

White Outdoor 710-0601

Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

97

White Outdoor 736-0159

Fl-Wash. .344" I.D.

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 722-0160

Bushing

$

$

Not available

99

White Outdoor 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

100

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

101

White Outdoor 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

104

White Outdoor 731-1052

Foot Pad

$

$

Not available

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

108

White Outdoor 736-0426

Fiber Washer

$

$

Not available

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

114

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

115

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

116

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

117

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

118

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0
