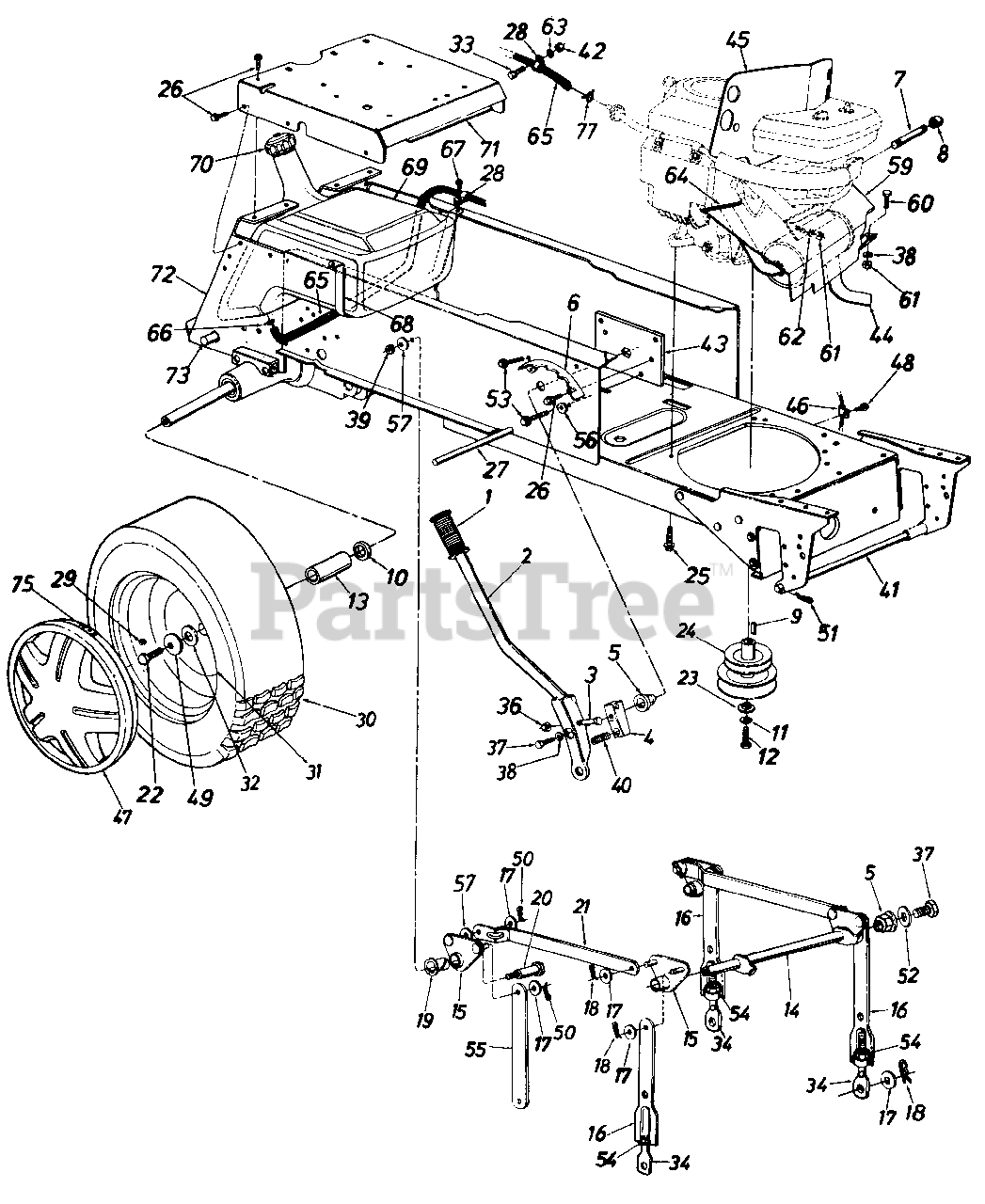

LGT-165 (131-826H190) - White Outdoor 46" Lawn Tractor (1991) Lift Assembly Parts Diagram

46" Lawn Tractor

Lift Assembly Parts Diagram

  • Title

1

White Outdoor 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

White Outdoor 17282

Lift Handle Ass'y.

$

$

Not available

3

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 748-0274A

Lift Shaft Drive

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Brg. 5/8" l.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

White Outdoor 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

White Outdoor 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

8

White Outdoor 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

9

White Outdoor 714-0118

Sq. Key 1/4" x 1/4n x 1,50" Lg.

$6.99

$

In Stock, only 4 left!

0

10

White Outdoor 736-0188

Fl-Wash. .76" l.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0171

L-Wash. 7/16" l.D.

$4.49

$

In Stock, only 4 left!

0

12

White Outdoor 710-0757

Hex Scr. 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

13

White Outdoor 731-1086

Sleeve .75" l.D. x 1.0" O.D.
(Superseded to 731-1086A)

$10.99

$

In Stock, only 1 left!

0

14

White Outdoor 13889

Lift Shaft Ass'y.

$

$

Not available

15

White Outdoor 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

White Outdoor 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

White Outdoor 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

17

White Outdoor 736-0192

Fl-Wash. 1/2" l.D. x 1.00n O.D. x ,ogon

$4.49

$

In Stock, Qty 18

0

18

White Outdoor 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

19

White Outdoor 741-0295

Nyliner 5/8" l.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

20

White Outdoor 738-0445

Shld. Bolt .618" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

White Outdoor 13790

Connecting Link
(Superseded to 13790-0637)

Variations

White Outdoor 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0322

Flat Wash. .44" I.D. x 1.25" O.D. x .17"

$9.49

$

In Stock, Qty 8

0

24

White Outdoor 756-0540

Two-Step Engine Pulley 5.56 & 3.5

$

$

Not available

25

White Outdoor 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25n Lg.

$6.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-18 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0435

Running Board Rod

$

$

Not available

28

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

29

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 734-1679

Rear Wheel Ass'y. Comp.
(Superseded to 634-0177)

Variations

White Outdoor 734-1679-0911

WHEEL ASS'Y COMP - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1679-0912

WHEEL ASS'Y COMP - Dico Gray (0912)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1679-0915

WHEEL ASS'Y COMP - Duro Gray (0915)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1679-0931

WHEEL ASS'Y COMP - Carlisle Beige (0931)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1679-0942

WHEEL ASS'Y COMP - Dico Yellow (0942)

$473.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1679-0945

WHEEL ASS'Y COMP - Duro Yellow (0945)

$473.99

$

Usually ships in 3-6 days

0

$384.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1680

Tire Only

Variations

White Outdoor 734-1680-0901

No Longer Available TIRE-20.0X10X8 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1680-0905

No Longer Available TIRE-20.0X10X8 - Duro (0905)

$

$

Not available

$

$

31

White Outdoor 734-0603A

Rear Wheel Rim Only
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0346

Flat Washer ,34n l.D.

$

$

Not available

33

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62n Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62n Lg.

$4.49

$

In Stock, only 1 left!

0

38

White Outdoor 736-0119

L-Wash. 5/16n l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

White Outdoor 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

42

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

White Outdoor 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

White Outdoor 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

White Outdoor 751-0474

Muffler

$

$

Not available

45

White Outdoor 17452

Heat Shield

$

$

Not available

46

White Outdoor 726-0273

Mounting Clamp

$7.49

$

In Stock, only 1 left!

0

47

White Outdoor 734-1504

Hubcap
(Superseded to 734-1615A)

$32.99

$

Usually ships in 3-6 days

0

48

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5n Lg.

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0242

Bell-Wash..39" l.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

White Outdoor 714-0149B

Int. Cotter Pin

$4.49

$

In Stock, Qty 18

0

52

White Outdoor 736-0231

Flat Wash. .34" l.D. x 1.12" O.D. x .125"

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0600

Hex Wash. Hd. AB-Tap Scr. 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

54

White Outdoor 712-0206

Hex Nut 1/2-13 Thd .

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 14399

Deck Link
(Superseded to 14399-0637)

Variations

White Outdoor 14399-0637

LINK-DECK - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

56

White Outdoor 736-0264

Fl-Wash. .344n l.D.

$6.99

$

In Stock, only 1 left!

0

57

White Outdoor 736-0219

Bell-Wash. .4n l.D. x 1.13n O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

59

White Outdoor 16934

Front Heat Shield

$

$

Not available

60

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75n Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

62

White Outdoor 736-0170

L-Wash. 5/16n l.D.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

63

White Outdoor 736-0329

L-Wash. 1/4n l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

64

White Outdoor 731-0511-12

Trim Strip 12n Lg.

$22.99

$

Usually ships in 3-6 days

0

65

White Outdoor 751-0535-50

Fuel Line 50n Lg.
(Superseded to 751-10349-54)

$53.99

$

Usually ships in 3-6 days

0

66

726-0206

Hose Clamp

$

$

Not available

67

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 17424

Fuel Tank Strap

$

$

Not available

69

751-0528B

Gas Tank

$

$

Not available

70

White Outdoor 751-0531B

Gas Gauge

$83.99

$

In Stock, Qty 5

0

71

White Outdoor 16848B

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

72

White Outdoor 17343

Hitch Plate

Variations

White Outdoor 17343-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 738-0482

Hitch Rod

$

$

Not available

75

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

77

White Outdoor 726-0272

Hose Clamp

$7.49

$

Usually ships in 3-6 days

0
