LGT-165 (131-826H190) - White Outdoor 46" Lawn Tractor (1991) 46" Mowing Deck Assembly Parts Diagram

46" Lawn Tractor

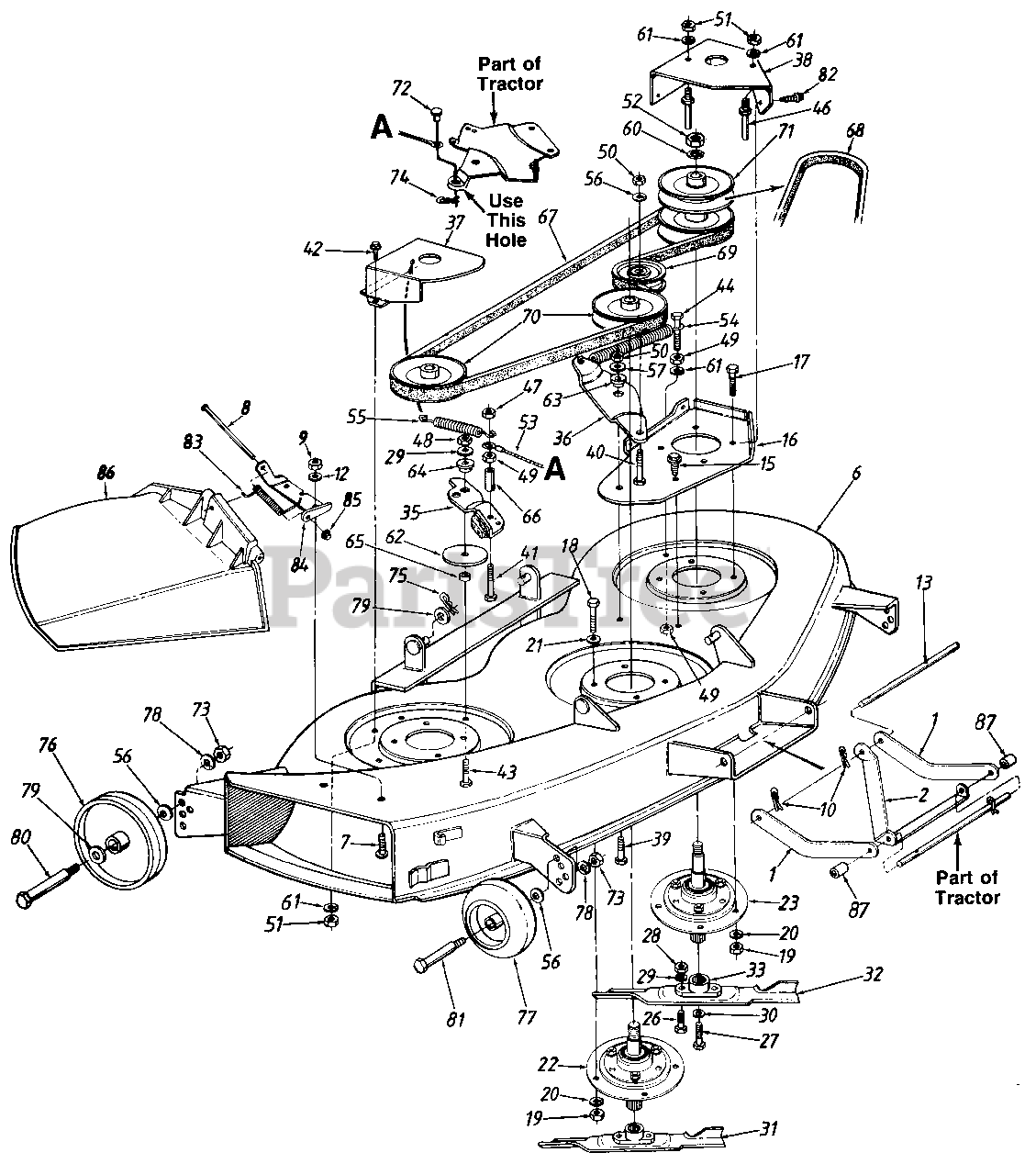

46" Mowing Deck Assembly Parts Diagram

  • Title

1

White Outdoor 17347

Deck Stabilizer
(Superseded to 17347-0637)

Variations

White Outdoor 17347-0637

STABILIZER-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 17264

Diagonal Brace

Variations

White Outdoor 17264-0637

BRACE-DIAGONAL - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 17218D

46" Deck Ass'y.
(Superseded to 983-0118A-0637)

$

$

Not available

White Outdoor 17212

46" Deck Ass'y. Comp.

$

$

Not available

7

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

9

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

10

UNKNOWN

$

$

Not available

12

White Outdoor 736-0270

Bell-Wash. l/4" I.D.

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 738-0392

Deck Connecting Rod

$

$

Not available

15

White Outdoor 710-0604

Hex TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 17261

Idler Mtg. Brkt.

Variations

White Outdoor 17261-0637

No Longer Available BRACKET-IDLER MTG - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1" Lg.

Note: (Spec.)

$4.49

$

In Stock, Qty 5

0

18

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

19

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 717-0912

Spindle Ass'y.
(Superseded to 917-0912)

Note: (R.H. & Center)

$

$

Not available

23

White Outdoor 717-0913

Spindle Ass'y.
(Superseded to 917-0913)

Note: (L.H.)

$

$

Not available

26

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.0" Lg.

Note: (Spec.)

$4.49

$

In Stock, Qty 5

0

27

White Outdoor 710-0877

Hex Cl-Bolt 3/8-24 x .88" Lg.
(Superseded to 710-0696)

$6.99

$

In Stock, only 2 left!

0

28

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

29

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 9

0

31

White Outdoor 742-0486

High Lift Blade 14.88" Lg.
(Superseded to 942-0486)

$29.99

$

In Stock, only 1 left!

0

32

White Outdoor 742-0487

High Lift Blade 16.28" Lg.

$

$

Not available

33

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

35

White Outdoor 17116

Deck Brake Brkt. Ass y.
(Superseded to 97116)

$52.99

$

Usually ships in 3-6 days

0

36

White Outdoor 17213

Idler Bracket
(Superseded to 17213A-0637)

$19.99

$

Usually ships in 3-6 days

0

37

White Outdoor 17258

Belt Cover Brkt.-R.H.
(Superseded to 17258E)

Variations

White Outdoor 17258-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

White Outdoor 17258-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$54.99

$

In Stock, only 2 left!

0

White Outdoor 17258-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

38

White Outdoor 17260

Belt Keeper Bracket

Variations

White Outdoor 17260-0637

BRACKET-BELT KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

40

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

41

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

42

White Outdoor 710-0599

Hex Wash. Hd. Tap-Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.25" Lg. (Grade 5)

$4.49

$

In Stock, Qty 18

0

44

White Outdoor 710-0698

Hex Bolt 1/4-28 x 1.5" Lg.

$

$

Not available

46

White Outdoor 711-0747

Belt Guard Pin 1/4" Dia.

$10.99

$

Usually ships in 3-6 days

0

47

White Outdoor 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

48

White Outdoor 712-0123

Hex Nut 5/16-24 Thd
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

49

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

50

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

51

White Outdoor 712-0287

Hex Nut 1/4-20 Thd. *
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

52

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

53

White Outdoor 727-0426

Brake Cable Ass y.

$

$

Not available

White Outdoor 727-0445

Brake Cable Ass'y.

Note: (Style 9)

$

$

Not available

54

White Outdoor 732-0594A

Extension Spring 6.17" Lg.
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

55

White Outdoor 732-0429A

Extension Spring 3.97n Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

56

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88n O.D.

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 16

0

60

White Outdoor 736-0317

Bell-Wash. 618n l.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0329

L-Wash. 1/4n l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

62

White Outdoor 736-0416

Fl-Wash. 5/16" I.D. x 3" O.D.

$

$

Not available

63

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

64

White Outdoor 748-0234

Shld. Spacer

$4.49

$

Usually ships in 3-6 days

0

65

White Outdoor 750-0214

Spacer.34" I.D.

$

$

Not available

66

White Outdoor 750-0470

Spacer.326" I.D.

$6.99

$

Usually ships in 3-6 days

0

67

White Outdoor 754-0349

V-Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

68

White Outdoor 754-0350

V-Belt
(Superseded to 954-0350)

$54.99

$

Usually ships in 3-6 days

0

69

White Outdoor 756-0365

Fl-ldler w/Flanges 3.5" O.D.
(Superseded to 956-0365)

$48.99

$

In Stock, Qty 7

0

70

White Outdoor 756-0519

Pulley 5.0n Dia.

$85.99

$

In Stock, only 3 left!

0

71

White Outdoor 756-0520

Pulley 5.0n Dia.

$

$

Not available

72

White Outdoor 711-0701

Clevis Pin 1/4" Dia. x .53" Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

73

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

74

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 714-0145

Intern. Cotter Pin 3/8 Dia.

$4.99

$

In Stock, Qty 20+

0

76

White Outdoor 734-0973

Deck Wheel 5" Dia.

$12.99

$

In Stock, Qty 20+

0

77

White Outdoor 734-3058B

Deck Wheel w/lnsert 5n Dia.
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

78

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 736-0192

Fl-Wash. .531" I.D.

$4.49

$

In Stock, Qty 8

0

80

White Outdoor 738-0533

Shoulder Bolt .498n Dia. x 1.64" Lg.

$7.99

$

Usually ships in 3-6 days

0

81

White Outdoor 738-3056

Shoulder Bolt
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

82

White Outdoor 710-0653

Hex Wash. Hd. Tap-Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 13

0

83

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

84

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

85

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

86

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. 8, 83, 84, 85, 86)

$81.99

$

In Stock, Qty 6

0

87

White Outdoor 750-0757

Spacer 5/8" I.D. x 7/8" O.D.
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11
