LGT-1600 (138-756-190) - White Outdoor 46" Lawn Tractor (1988) Linkage Assembly Parts Diagram

46" Lawn Tractor

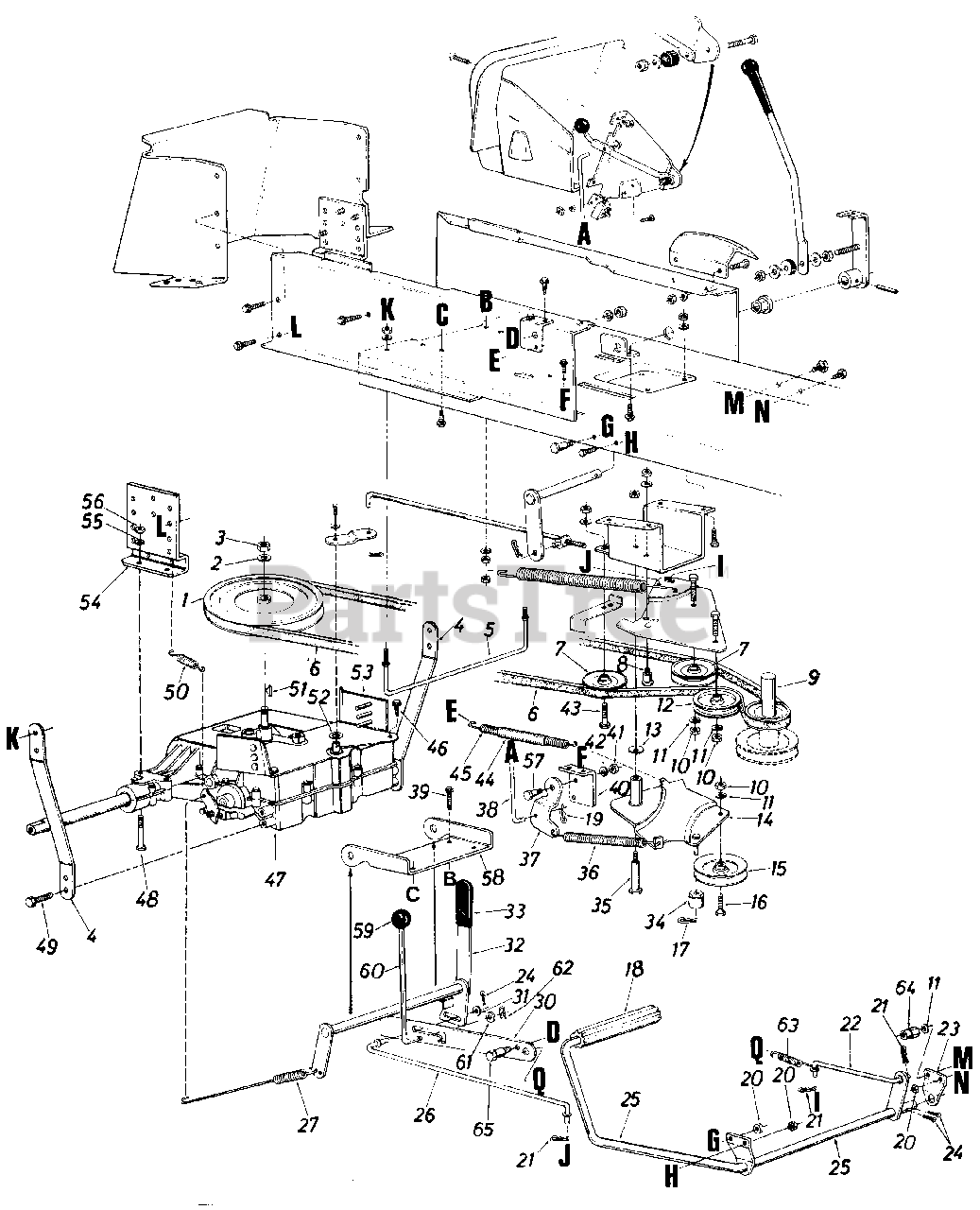

Linkage Assembly Parts Diagram

  • Title

1

White Outdoor 756-0341

8" "V"-Pulley

Note: (Transaxle)

$

$

Not available

2

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

3

White Outdoor 712-0922

Hex Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

4

14066

Transaxle Brace

$

$

Not available

5

White Outdoor 747-0322

Belt Guard

$

$

Not available

6

White Outdoor 754-0248

"V"-Belt
(Superseded to 954-0248)

$74.99

$

Usually ships in 3-6 days

0

7

White Outdoor 756-0116

"V"-Belt Idler Pulley .38n l.D. x 3-1/16" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

8

White Outdoor 738-0155

Shoulder Bolt .435" Dia. x 160 (5/16-18)
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 756-0342

Two Step Engine Pulley 3.10" & 5.56" Dia.

$

$

Not available

10

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

11

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 756-0225

Flat Idler Pulley 2.75" O.D.

$

$

Not available

13

White Outdoor 736-0105

Belleville Wash. .400" I.D. x .88" O.D. x .063

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 14076

Idler Bracket Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

15

White Outdoor 756-0293

4" "V"-ldler Pulley
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

16

White Outdoor 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

17

White Outdoor 714-0104

Hairpin Cotter 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

19

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

White Outdoor 714-0507

Hairpin Cotter 3/32" Dia. x 3/4 " Lg

$4.49

$

In Stock, only 2 left!

0

22

White Outdoor 747-0318

Brake Clutch Rod (4.60" Lg.)

$

$

Not available

23

White Outdoor 13859

Clutch Rod Bearing Brkt.

$

$

Not available

24

White Outdoor 714-0474

Cotter Pin 1/8" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 14

0

25

White Outdoor 14040

Clutch Brake Pedal Ass'y.

$

$

Not available

26

White Outdoor 747-0319

Brake Cam Rod (13.60" Lg.)

$

$

Not available

27

White Outdoor 732-0381

Extension Spring .59" O.D. x.93" Lg.

$

$

Not available

30

White Outdoor 13832

Parking Brake Cam

$

$

Not available

31

White Outdoor 736-0101

Fl-Wash. .406" I.D. x 1.00" O.D. x .030 Thk.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

32

14073

Hand Brake Lever Ass'y.

$

$

Not available

33

White Outdoor 720-0189

Grip-Flat Bar 1-1/4" Wide

$

$

Not available

34

White Outdoor 748-0278

Spacer
(Superseded to 948-0278)

$11.99

$

In Stock, Qty 5

0

35

White Outdoor 738-0129

Shoulder Bolt .496" Dia. x 2.00" Lg. (3/8-16)

$11.99

$

In Stock, only 1 left!

0

36

White Outdoor 732-0478

Extension Spring .75" O.D. x 6.12" Lg.
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 12

0

37

White Outdoor 13887

Deck Control Brkt.
(Superseded to 13887A)

$

$

Not available

38

White Outdoor 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

39

White Outdoor 710-0778

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 13833

Parking Brake Cam Mtg. Brkt.
(Superseded to 13833A)

$

$

Not available

41

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

42

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

44

White Outdoor 731-0483

Convoluted Conduit 50n l.D. x 4.0" Lg.
(Superseded to 731-0757-4)

$15.99

$

In Stock, only 2 left!

0

45

White Outdoor 732-0308

Ext. Spring 50n O.D. x 6.37" Lg.
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

46

White Outdoor 710-0726

Hex Wash. Hd. AB 0 Tap Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

47

Transaxle

Note: (See Breakdown on associated diagram)

$

$

Not available

48

White Outdoor 710-0378

Hex Bolt 5/16-18 x 2.50" Lg.

$4.99

$

In Stock, only 4 left!

0

49

White Outdoor 710-0726

Hex Wash. Hd. AB 0 Tap Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 732-0433

Extension Spring .50" O.D. x 2.75" Lg.

$

$

Not available

51

White Outdoor 714-0129

Hi-Pro Key 3/32" x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

52

White Outdoor 717-0234

Special Wash. 1.00" O.D. (Hdn.)

$

$

Not available

53

14193

Transaxle Belt Keeper Ass'y.

$

$

Not available

54

14067

Transaxle Support Bracket

$

$

Not available

55

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

57

White Outdoor 738-0155

Shoulder Bolt .437n Dia. x .162" Lg. (5/16-18)
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

White Outdoor 13822

Idler Mtg. Brkt.

$

$

Not available

59

White Outdoor 720-0166

Ball Knob

$

$

Not available

60

747-0300

Parking Brake Link

$

$

Not available

61

White Outdoor 736-0101

Fl-Wash.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

62

White Outdoor 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

63

White Outdoor 732-0447

Ext. Spring 3.12" Lg.

$

$

Not available

64

738-0756

Spacer Nut 3/8-16 Thd.

$

$

Not available

65

White Outdoor 738-0155

Shld. Bolt .435n Dia. x .16"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0
