LGT-1600 (138-756-190) - White Outdoor 46" Lawn Tractor (1988) Body Assembly Parts Diagram

46" Lawn Tractor

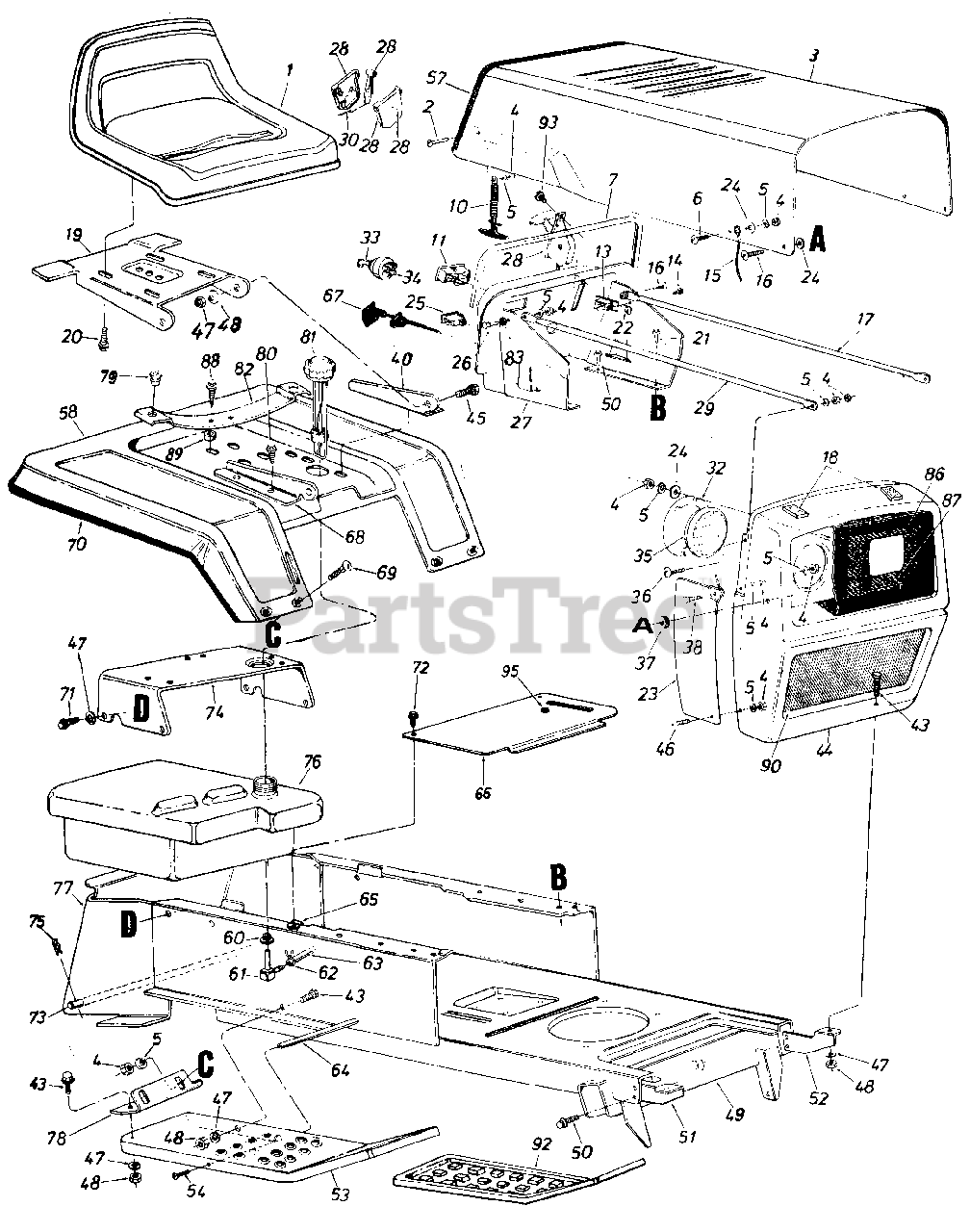

Body Assembly Parts Diagram

  • Title

1

White Outdoor 757-0336

Seat Assembly

$

$

Not available

2

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

3

White Outdoor 13808

Hood

Variations

White Outdoor 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

5

White Outdoor 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 731-0511

Vinyl Molding Strip-29"

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor 723-0296

Hood Latch Ass'y.

$

$

Not available

11

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

13

White Outdoor 725-0459

Circuit Breaker 8 Amp.
(Superseded to 753-0685)

$

$

Not available

14

White Outdoor 710-0351

Hex Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 727-0199

Hood Stop

$

$

Not available

16

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 749-0651

Grille Positioning Rod

$

$

Not available

18

White Outdoor 722-0157

PVC Foam Strip 1/2 x 1.00" x 2.00" Lg.

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 15607

Seat Pivot Brkt.
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

20

White Outdoor 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

21

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0344

Speed Nut #10Z

$

$

Not available

23

14748

Grille Side Panel-R.H.

$

$

Not available

14749

Grille Side Panel-L.H.

Note: (Not Shown)

$

$

Not available

24

White Outdoor 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

26

White Outdoor 710-0166

Truss Hd. Scr. 1/4-20 x 1.00" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

27

White Outdoor 16427

Dash Panel Ass'y.

$

$

Not available

28

White Outdoor 831-0823

Throttle Control Box Comp.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

29

White Outdoor 749-0651

Grille Positioning Rod

$

$

Not available

30

White Outdoor 746-0503

Throttle Control Cable
(Superseded to 946-0503)

$

$

Not available

32

White Outdoor 09960

Head Lamp Retainer

$

$

Not available

33

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

34

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

35

White Outdoor 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

36

White Outdoor 710-0255

Truss Machine Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 735-0144

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

$

$

Not available

38

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

40

White Outdoor 15803

Seat Bracket-L.H.

$

$

Not available

43

White Outdoor 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

44

13800

Grille Ass'y.

$

$

Not available

45

White Outdoor 738-0155

Shld. Bolt .437 Dia. x .162 Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

46

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0119

L-Wash. 5116" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

49

White Outdoor 13820

Lower Frame Ass'y.

$

$

Not available

50

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 13862

Grille Mount Brkt.-R.H.

$

$

Not available

52

White Outdoor 13863

Grille Mount Brkt.-L.H.

$

$

Not available

53

White Outdoor 13828

Running Board-R.H.

$

$

Not available

White Outdoor 13827

Running Board-L.H.

Note: (Not Shown)

$

$

Not available

54

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

White Outdoor 736-0242

Bell-Wash. .34" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 731-0511

Vinyl Moulding Strip-30"

$3.99

$

Usually ships in 3-6 days

0

58

White Outdoor 15886

Fender Ass'y.

Variations

White Outdoor 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

60

White Outdoor 735-0149

Bushing
(Superseded to 935-0149)

Note: (Gas Tank)

$2.99

$

In Stock, Qty 20+

0

61

751-3054

90ø Nipple

$

$

Not available

62

White Outdoor 726-0207

Hose Clamp 3/8"

$

$

Not available

63

White Outdoor 751-0173

Gas Line 46" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

64

White Outdoor 738-0435

Running Board Rod

$

$

Not available

65

White Outdoor 712-0147

Speed Nut #10-24

$6.99

$

Usually ships in 3-6 days

0

66

17150

Transmission Cover Ass'y.

$

$

Not available

67

White Outdoor 746-0613

Choke Control Comp.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

68

White Outdoor 15802

Seat Bracket-R.H.

$

$

Not available

69

White Outdoor 710-0167

Carr. Bolt 1/4-20 x 50n Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 731-0511

Trim Strip-81n Lg.

$3.99

$

Usually ships in 3-6 days

0

71

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 710-0351

Truss Hd. Scr. #10 x 50n Lg.

$4.49

$

Usually ships in 3-6 days

0

73

White Outdoor 738-0482

Hitch Rod

$

$

Not available

74

White Outdoor 15849

Seat Mounting Channel

$

$

Not available

75

White Outdoor 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

76

White Outdoor 751-0367

Gas Tank

$

$

Not available

77

White Outdoor 13813

Hitch Plate

$

$

Not available

78

White Outdoor 15846

Fender Brkt.-R.H.

Variations

White Outdoor 15846-0637

BRACKET-FENDER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt.-L.H.

Note: (Not Shown)

Variations

White Outdoor 15847-0637

No Longer Available BRACKET-FENDER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

79

White Outdoor 731-0555

Grommet
(Superseded to 731-0555A)

$

$

Not available

80

UNKNOWN

$

$

Not available

81

White Outdoor 751-0370

Gas Gauge

$

$

Not available

82

732-0431

Seat Spring

$

$

Not available

83

White Outdoor 736-0222

External Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

86

White Outdoor 731-0465

Headlight Bezel

$

$

Not available

87

White Outdoor 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

88

White Outdoor 710-0817

Hex Self-Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 15

0

89

White Outdoor 750-0706

Spacer
(Superseded to 950-0706)

$

$

Not available

90

White Outdoor 731-0881

Grille Screen

$

$

Not available

92

White Outdoor 731-0755

Foot Pad

$

$

Not available

93

White Outdoor 710-0779

Truss Mach. AB-Tap Scr. #10 x 50n Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

95

White Outdoor 731-0405

Snap Bushing

$

$

Not available

730-0116

Reflectors-Fender

$

$

Not available
