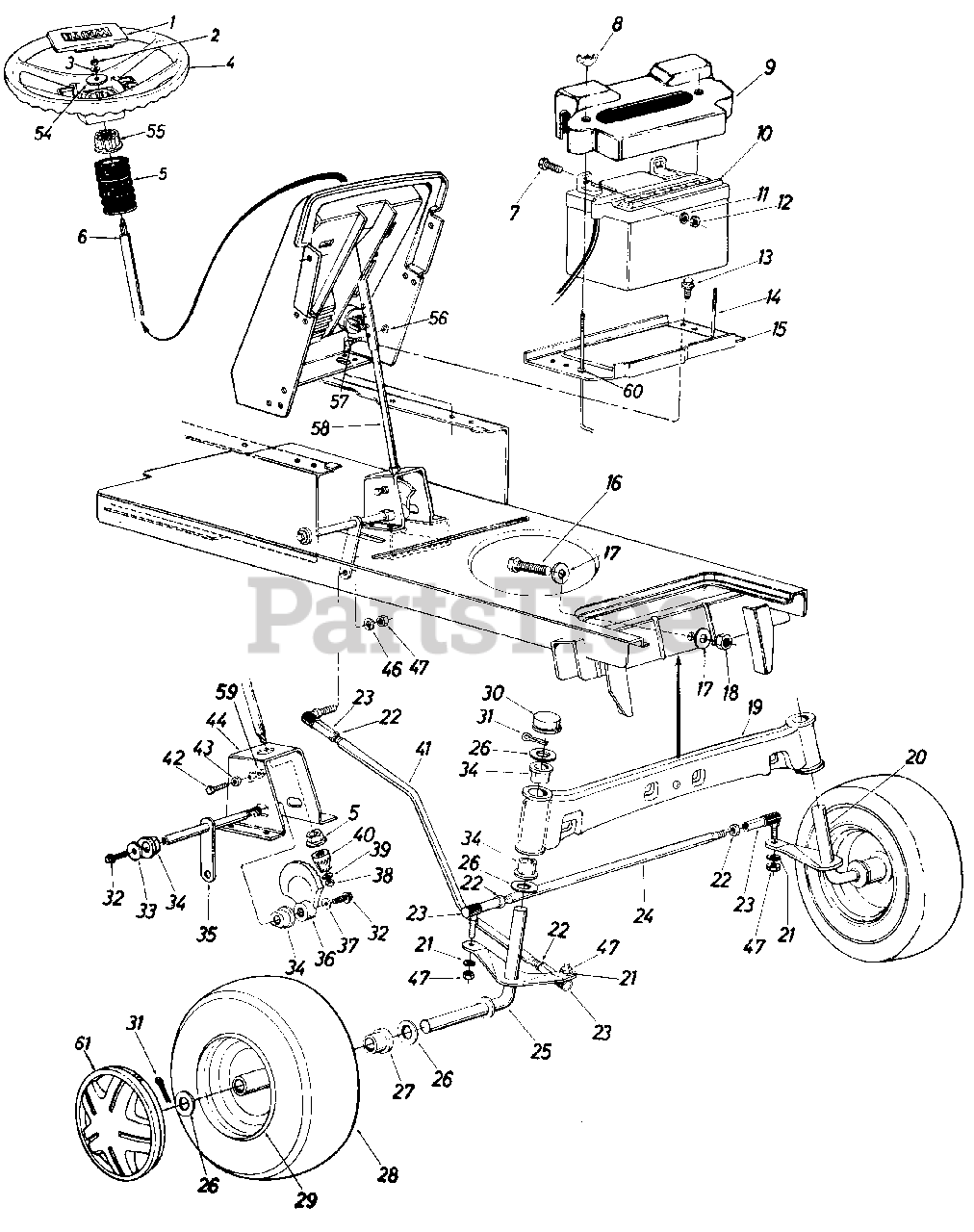

LGT-160 (139-756-190) - White Outdoor 46" Lawn Tractor (1989) Steering Assembly Parts Diagram

46" Lawn Tractor

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-1039

Steering Wheel Insert

$

$

Not available

2

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

White Outdoor 736-0242

Bell-Wash. 5/16" I.D. x .87" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-0971

Steering Wheel

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Bearing 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

UNKNOWN

$

$

Not available

7

White Outdoor 710-0258

Hex BoJt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 731-0707

Battery Cover

$

$

Not available

10

White Outdoor 725-0453A

12-V Battery
(Superseded to 925-0453G)

$

$

Not available

11

White Outdoor 736-0329

L-Wash 1/4 " I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4-20 0 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

15

White Outdoor 13379

Battery Plate

$

$

Not available

16

White Outdoor 710-0533

Hex Bolt 5/8-18 x 2.5" Lg.

$

$

Not available

17

White Outdoor 736-0282

Flat Wash. .66" I.D. x 2.25" O.D. x .17

$

$

Not available

18

White Outdoor 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

13865

Front Pivot Bar Ass'y.

$

$

Not available

20

White Outdoor 17268

Front Axle Ass'y.-L.H.

$

$

Not available

21

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 723-0156

Ball Joint Ass'y.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

24

White Outdoor 747-0301

Tie Rod

$

$

Not available

25

White Outdoor 17267

Front Axle Ass'y.-R.H.

$

$

Not available

26

White Outdoor 736-0316

Fl-Wash. .780 I.D. x 1.59 O.D.

$4.49

$

In Stock, Qty 20+

0

27

Flange Bearing

$

$

Not available

White Outdoor 741-0382

Bearing 15 x 6.00
(Superseded to 941-0382)

Note: (Turf Tread)

$

$

Not available

28

Front Wheel Ass'y. Comp.

$

$

Not available

734-1135

Wheel Ass'y. Comp. 15 x 6.00

Note: (Turf Tread)

$

$

Not available

29

Front Wheel Rim Only

$

$

Not available

734-0961A

Rim Only 15 x 6.00

Note: (Turf Tread)

$

$

Not available

30

White Outdoor 731-0484A

Dust Cover
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

31

White Outdoor 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.
(Superseded to 914-0121)

$

$

Not available

32

White Outdoor 710-0180

Hex Bolt 3/8-24 x .75" Lg. Grade 5

$6.99

$

In Stock, only 3 left!

0

33

White Outdoor 736-0133

Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090

$5.49

$

In Stock, Qty 7

0

34

White Outdoor 741-0199

Flange Double "D" Brg. .753 0 I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

35

White Outdoor 12749

Steering Arm Shaft Ass'y.

$

$

Not available

36

White Outdoor 748-0236

Side Gear-Steering

$101.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

39

White Outdoor 736-0264

Fl-Wash. 5/16" I.D. x .62 O.D. x .059

$6.99

$

In Stock, only 1 left!

0

40

White Outdoor 748-0237

Pinion Gear-Steering
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

41

White Outdoor 747-0302

Drag Link

$84.99

$

In Stock, only 1 left!

0

42

White Outdoor 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

44

White Outdoor 12850

Steering Gear Sup. Ass'y.

$

$

Not available

46

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 16512

Upper Steering Shaft

$

$

Not available

54

White Outdoor 736-0418

Fl-Washer
(Superseded to 736-0418A)

$10.99

$

Usually ships in 3-6 days

0

55

White Outdoor 717-0935

Steering Wheel Adapter

$

$

Not available

56

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

57

White Outdoor 710-0958

Hex Bolt 1/4-20 x 1.25" Lg.
(Superseded to 710-0106)

Note: (Special)

$3.99

$

In Stock, Qty 12

0

58

White Outdoor 738-0588

Lower Steering Shaft

$

$

Not available

59

White Outdoor 731-0988

Nylon Cap

$

$

Not available

60

White Outdoor 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

61

White Outdoor 734-1503

Hub Cap

$

$

Not available
