LGT-160 (139-756-190) - White Outdoor 46" Lawn Tractor (1989) Peerless Transaxle Parts Diagram

46" Lawn Tractor

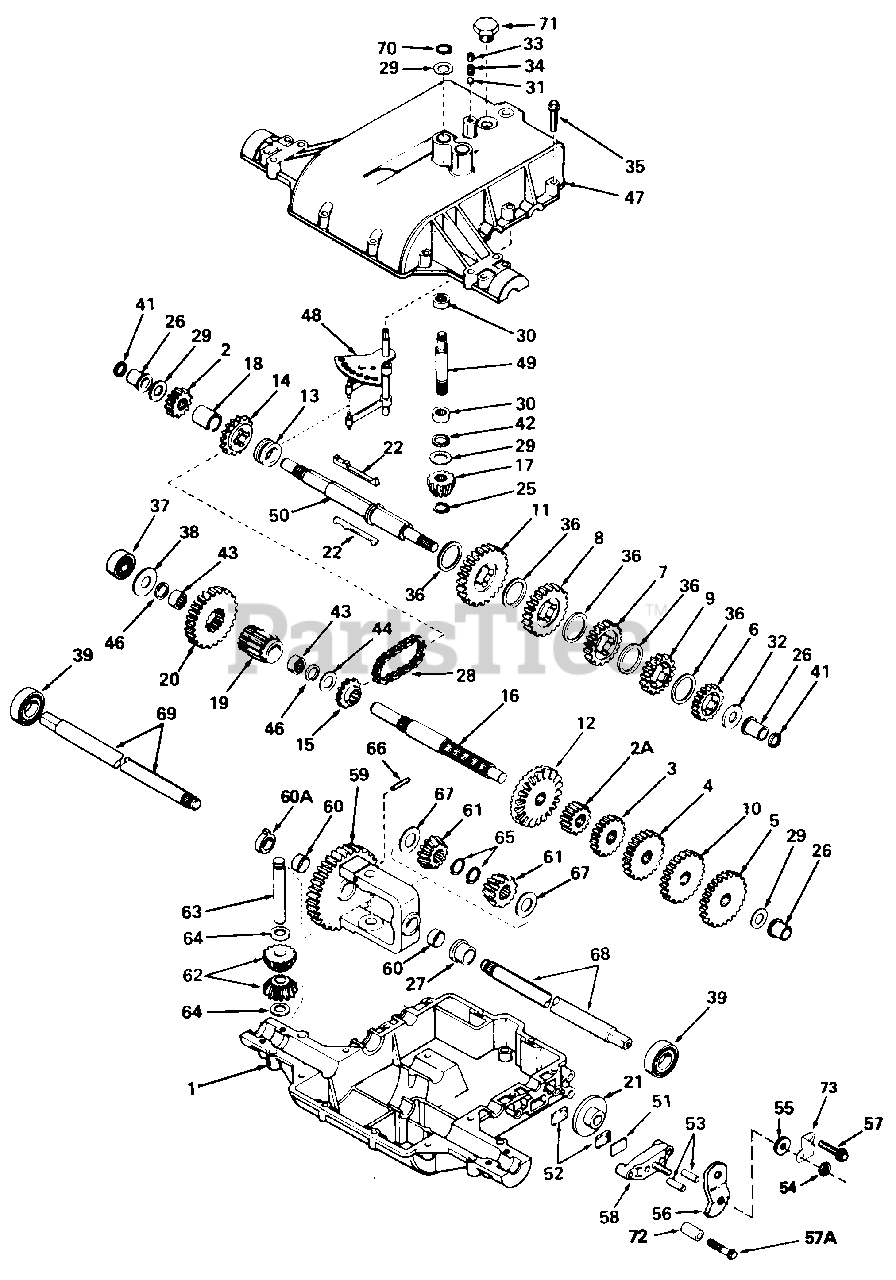

Peerless Transaxle Parts Diagram

  • Title

1

PE-770071A

Case, Transaxle

$

$

Not available

2

PE-778136

Gear, Spur (15 teeth)

$

$

Not available

2A

PE-778145

Gear, Spur (12 teeth)

$

$

Not available

3

MTD PE-778126A

Gear, Spur (20 teeth)
(Superseded to TC-778126A)

$48.99

$

Usually ships in 3-12 days

0

4

MTD PE-778127A

Gear, Spur (25 teeth)
(Superseded to TC-778127A)

$53.99

$

In Stock, only 3 left!

0

5

MTD PE-778129A

Gear, Spur (30 teeth)

$

$

Not available

6

MTD PE-778121A

Gear, Spur (20 teeth)
(Superseded to TC-778121A)

$46.99

$

Usually ships in 3-12 days

0

7

MTD PE-778123A

Gear, Spur (25 teeth)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

8

MTD PE-778124A

Gear, Spur (30 teeth)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

9

PE-778122A

Gear Spur (22 teeth)

$

$

Not available

10

PE-778128A

Gear Spur (28 teeth)

$

$

Not available

11

PE-778146A

Gear, Spur (37 teeth)

$

$

Not available

12

MTD PE-778137A

Gear, Bevel (42 teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

13

MTD PE-784266

Collar, Shift
(Superseded to TC-784266)

$11.99

$

Usually ships in 3-12 days

0

14

MTD PE-786083

Sprocket (18 teeth)
(Superseded to TC-786083)

$20.99

$

In Stock, only 1 left!

0

15

PE-786082

Sprocket (9 teeth)

$

$

Not available

16

MTD PE-776204

Shaft, Counter
(Superseded to TC-776204)

$79.99

$

In Stock, only 1 left!

0

17

MTD PE-778113A

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

18

PE-786074

Spacer

$

$

Not available

19

PE-778138

Pinion, Output

$

$

Not available

20

PE-778139

Gear, Output

$

$

Not available

21

PE-790003

Disk, Brake

$

$

Not available

22

MTD PE-792089A

Key
(Superseded to TC-792089B)

$35.99

$

Usually ships in 3-12 days

0

25

MTD PE-788040

Ring, Retaining
(Superseded to TC-788040)

$4.49

$

In Stock, only 4 left!

0

26

MTD PE-780105A

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

27

MTD PE-780118A

Bushing, Flanged
(Superseded to TC-780118A)

$8.49

$

Usually ships in 3-12 days

0

28

MTD PE-786081

Chain, Roller (No. 41 Chain, 24 Links)
(Superseded to TC-786081)

$22.99

$

Usually ships in 3-12 days

0

29

MTD PE-780072

Washer, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

PE-780122

Bearing, Needle

$

$

Not available

31

MTD PE-792077

Ball, Steel
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

32

MTD PE-780109

Washer, Thrust

$

$

Not available

33

MTD PE-792078

Screw, Set, 3/8-16 x 3/8
(Superseded to TC-792078)

$4.49

$

In Stock, only 1 left!

0

34

MTD PE-792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

35

MTD PE-792073

Screw, Hex Hd. Thread Forming, 1/4 20 x 11/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

36

MTD PE-780108

Washer, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

37

PE-780121

Bearing, Ball

$

$

Not available

38

PE-780113

Washer, Flat

$

$

Not available

39

PE-780119

Bearing, Ball

$

$

Not available

41

PE-788051

Ring, Square Cut

$

$

Not available

42

PE-788057

Ring, Square Cut

$

$

Not available

43

PE-780112

Bearing, Needle

$

$

Not available

44

PE-780114

Washer, Flat

$

$

Not available

46

MTD PE-788053

Ring, Square Cut
(Superseded to TC-788053)

$4.49

$

Usually ships in 3-12 days

0

47

PE-772082

Cover, Transaxle

$

$

Not available

48

PE-784290

Rod & Fork Ass'y., Shift

$

$

Not available

49

MTD PE-776140

Shaft, Input
(Superseded to TC-776140)

$29.99

$

Usually ships in 3-12 days

0

50

PE-776184A

Shaft, Brake

$

$

Not available

51

PE-790007

Plate, Brake Pad

$

$

Not available

52

MTD PE-790006

Pad, Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

53

PE-786026

Pin, Dowel

$

$

Not available

54

PE-792075

Locknut, 5/16-24

$

$

Not available

55

PE-792076

Washer, Flat

$

$

Not available

56

PE-790004

Lever, Brake

$

$

Not available

57

MTD PE-792073

Screw, Hex Hd. Thread Forming, 1/4-20 x 11/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

57A

PE-792085

Screw, Hex Hd. Thread Forming, 1/4-20 x 21/4

$

$

Not available

58

PE-790025

Holder, Brake Pad

$

$

Not available

59

PE-778053A

Gear Ass'y., Differential

Note: (Incl. 2 of No. 60)

$

$

Not available

60

PE-780064

Bushing

$

$

Not available

60A

PE-780120

Bushing

$

$

Not available

61

PE-778166

Gear, Bevel

$

$

Not available

62

PE-778131

Pinion, Bevel

$

$

Not available

63

PE-786034

Pin, Drive

$

$

Not available

64

PE-780065

Washer, Thrust

$

$

Not available

65

PE-792125

Ring, Retaining

$

$

Not available

66

PE-792040

Pin, Roll

$

$

Not available

67

MTD PE-780001

Washer, Thrust

$

$

Not available

68

PE-774643

Axle (15-1/4" Long)

$

$

Not available

69

PE-774642

Axle (13-3/8" Long)

$

$

Not available

70

MTD PE-792035

Ring, Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

71

MTD PE-792074

Plug, Hex Hd., 9/16-18 0 Thread

$

$

Not available

72

PE-786066

Spacer

$

$

Not available

73

PE-786086

Bracket, Brake Lever

$

$

Not available
