LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986) Transaxle Assembly Parts Diagram

Lawn Tractor

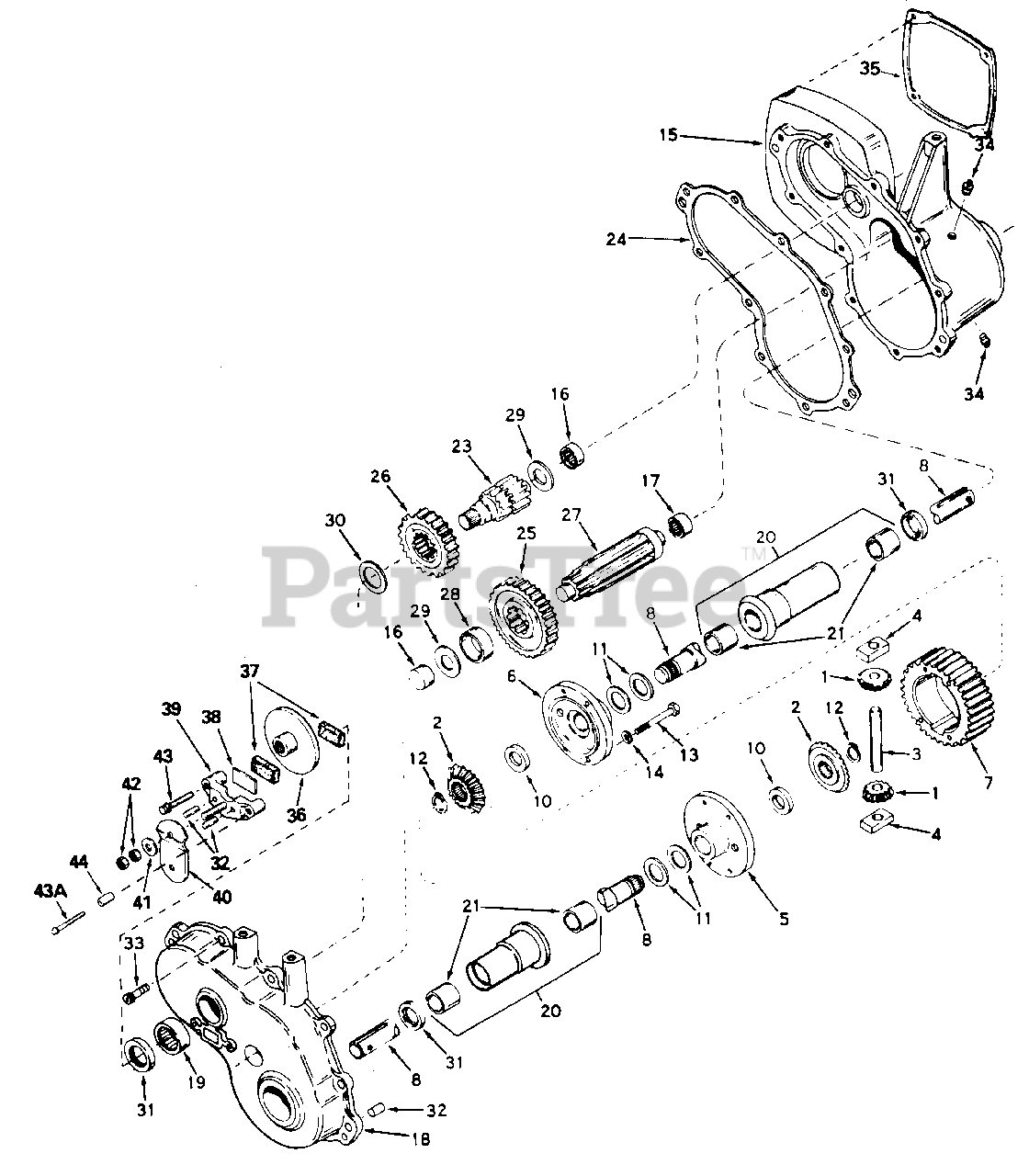

Transaxle Assembly Parts Diagram

  • Title

1

PE-778014

Pinion, Bevel

$

$

Not available

2

PE-778039

Gear, Bevel

$

$

Not available

3

PE-786019

Pin, Drive

$

$

Not available

4

PE-786027

Block, Drive

$

$

Not available

5

MTD PE-774028A

Carrier, Differential

$

$

Not available

6

PE-774029A

Carrier, Differential

$

$

Not available

7

PE-778033A

Gear, Ring

$

$

Not available

8

PE-774434

Axle (16-1/64" Long)

$

$

Not available

10

PE-780107

Washer

$

$

Not available

11

PE-780042

Washer, Thrust

$

$

Not available

12

PE-792018

Ring, Snap

$

$

Not available

13

MTD PE-792020

Screw, Hex Hd. 1/4-20 x 2-1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

PE-792006

Lock Washer, 1/4"

$

$

Not available

15

PE-770052

Case Ass'y.

Note: (Incl. Nos. 16 & 17)

$

$

Not available

16

PE-780013

Bearing, Needle

$

$

Not available

17

PE-780088

Bearing, Needle

$

$

Not available

18

PE-772035

Cover Ass'y.

Note: (Incl. Nos. 16 & 19)

$

$

Not available

19

PE-780089

Bearing, Needle

$

$

Not available

20

PE-782041

Housing Ass'y., Axle

Note: (Incl. 2 of No. 21)

$

$

Not available

21

PE-780054

Bushing

$

$

Not available

23

PE-776207

Shaft, Brake

$

$

Not available

24

MTD PE-788044

Gasket, Case to Cover
(Superseded to TC-788044A)

$6.49

$

Usually ships in 3-12 days

0

25

PE-778036

Gear, Output

$

$

Not available

26

PE-778037

Gear, ldler

$

$

Not available

27

PE-778041

Shaft, Output

$

$

Not available

28

PE-786017

Spacer

$

$

Not available

29

MTD PE-780001

Washer

$

$

Not available

30

PE-780090

Washer

$

$

Not available

31

MTD PE-788008

Seal, Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

32

PE-786026

Pin, Dowel

$

$

Not available

33

PE-792046

Screw, Hex Hd., Self-Tapping, 1/4-20 x 1

$

$

Not available

34

PE-792010

Plug, Pipe

$

$

Not available

35

PE-788046

Gasket

$

$

Not available

36

PE-790027

Disc, Brake

$

$

Not available

37

MTD PE-790006

Pad, Brake
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

38

PE-790007

Plate, Brake Pad

$

$

Not available

39

PE-790005

Holder, Brake Pad

$

$

Not available

40

PE-790010

Lever, Brake

$

$

Not available

41

PE-792076

Washer, Flat

$

$

Not available

42

PE-792075

Lock Nut 5/16-24

$

$

Not available

43

MTD PE-792073

Screw, Hex Hd., Self-Tapping, 1/4-20 x 1-1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

43A

PE-792085

Screw, Hex Hd., Self-Tapping, 1/4-20 x 2-1/4

$

$

Not available

44

PE-786066

Spacer

$

$

Not available
