LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986) Lift Assembly Parts Diagram

Lawn Tractor

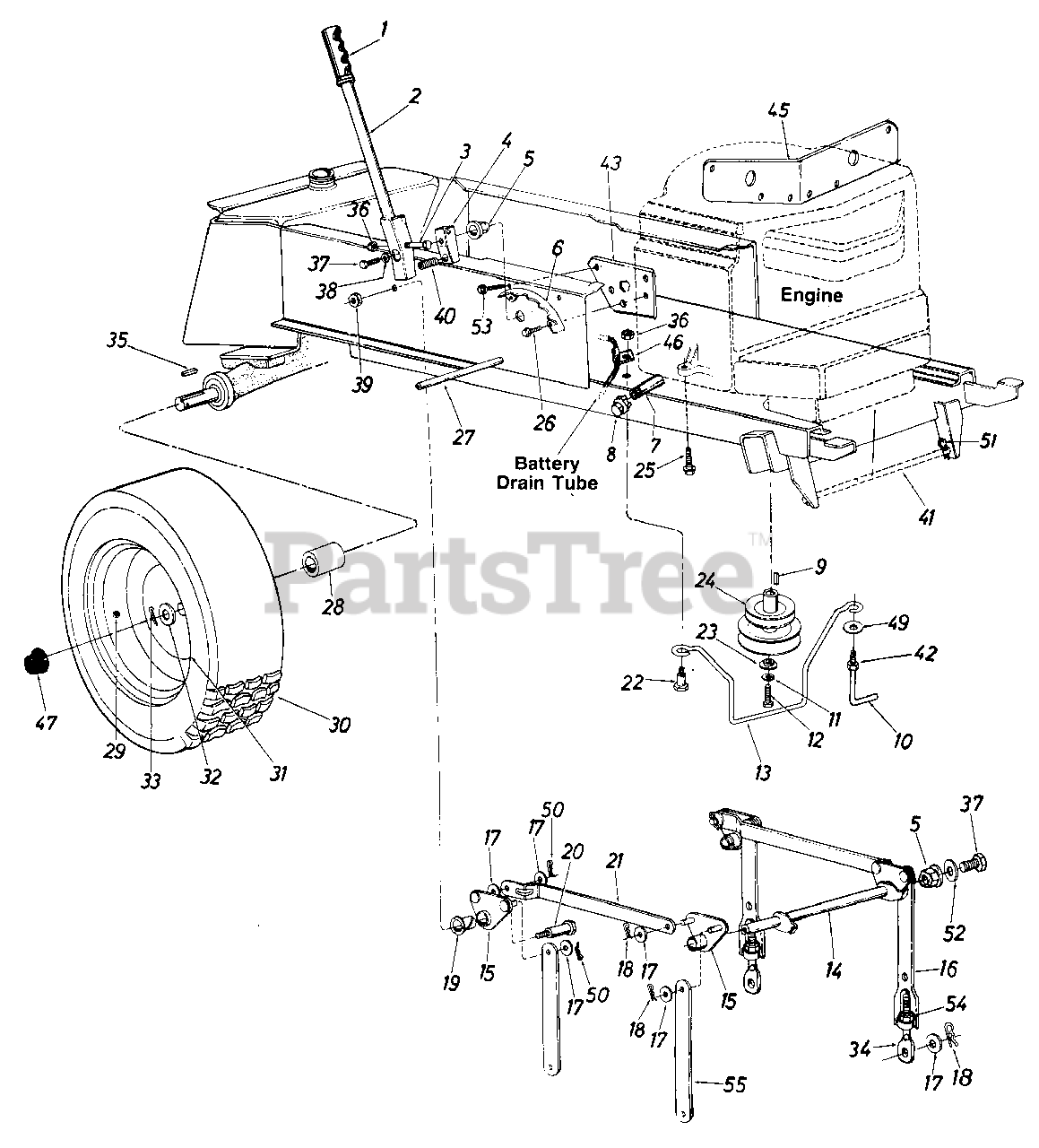

Lift Assembly Parts Diagram

  • Title

1

White Outdoor 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

2

White Outdoor 14233

Lift Handle Ass'y.

$

$

Not available

3

White Outdoor 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 748-0274

Lift Shaft Drive
(Superseded to 748-0274A)

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

6

White Outdoor 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

White Outdoor 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

8

White Outdoor 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

9

White Outdoor 714-0118

Sq. Key 1/4" x 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

10

White Outdoor 747-0216

Belt Guard Lock Pin

$

$

Not available

11

White Outdoor 736-0171

L-Wash. 7/16" Scr.

$4.49

$

In Stock, Qty 5

0

12

White Outdoor 710-0757

Hex Scr. 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

13

747-0299

Belt Guard

$

$

Not available

14

White Outdoor 13889

Lift Shaft Ass'y.

$

$

Not available

15

White Outdoor 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

White Outdoor 16092

Adj. Deck Lift Link

$

$

Not available

17

White Outdoor 736-0192

Fl-Wash. 112" I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 16

0

18

White Outdoor 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 1 left!

0

19

White Outdoor 741-0295

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

20

White Outdoor 738-0445

Shld. Scr. 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

White Outdoor 13790

Connecting Link
(Superseded to 13790-0637)

Variations

White Outdoor 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 738-0296

Shld. Scr. .437 Dia. x .268 0 Lg. 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0322

Flat Wash. .44" I.D. x 1.25" O.D. x .17

$9.49

$

In Stock, Qty 8

0

24

White Outdoor 756-0328

Two-Step Engine Pulley 4.75" & 5.56

$

$

Not available

25

White Outdoor 710-0502

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0600

Hex Thd. Rolling Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

27

White Outdoor 738-0435

Running Board Rod

$

$

Not available

28

White Outdoor 750-0490

Spacer 1.0" I.D. x 1.25" O.D. x 2.12" Lg.

$

$

Not available

29

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

734-1004

Rear Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-0967

Rear Wheel Tire Only

Variations

White Outdoor 734-0967-0901

No Longer Available TIRE-TUBELESS-22.0 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0967-0902

No Longer Available - Dico (0902)

$

$

Not available

White Outdoor 734-0967-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

31

White Outdoor 734-1015

Rear Wheel Rim Only

Variations

White Outdoor 734-1015-0499

No Longer Available WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1015-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 734-1015-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1015-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

32

White Outdoor 736-0345

Flat Washer
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

33

White Outdoor 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

34

White Outdoor 711-0773

Eye Bolt Adj. Link 1/2-13,Thd.

$

$

Not available

35

White Outdoor 714-0120

Sq. Key 1/4 x 3.0"

$

$

Not available

36

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

White Outdoor 710-0237

Hex Scr. 5/16-24 x .62" Lg.*

$4.49

$

In Stock, only 1 left!

0

38

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

White Outdoor 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

White Outdoor 738-0392

Deck Connecting Rod

$

$

Not available

42

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

43

White Outdoor 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

White Outdoor 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

45

15826

Heat Shield

$

$

Not available

46

White Outdoor 726-0175

Mounting Clamp

$

$

Not available

47

White Outdoor 731-0556

Hub Cap

$4.99

$

In Stock, only 4 left!

0

49

White Outdoor 736-0242

Belle-Wash. .39" I.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

White Outdoor 714-0149

Int. Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

52

White Outdoor 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 13791

Deck Link

$

$

Not available

White Outdoor 751-0444

Muffler

Note: (Not Shown)

$

$

Not available
