LGT 1054 (13W793AK056) - Cub Cadet 54" Lawn Tractor (2014) Kohler KT745-3001 Oil Pan & Lubrication Parts Diagram

54" Lawn Tractor

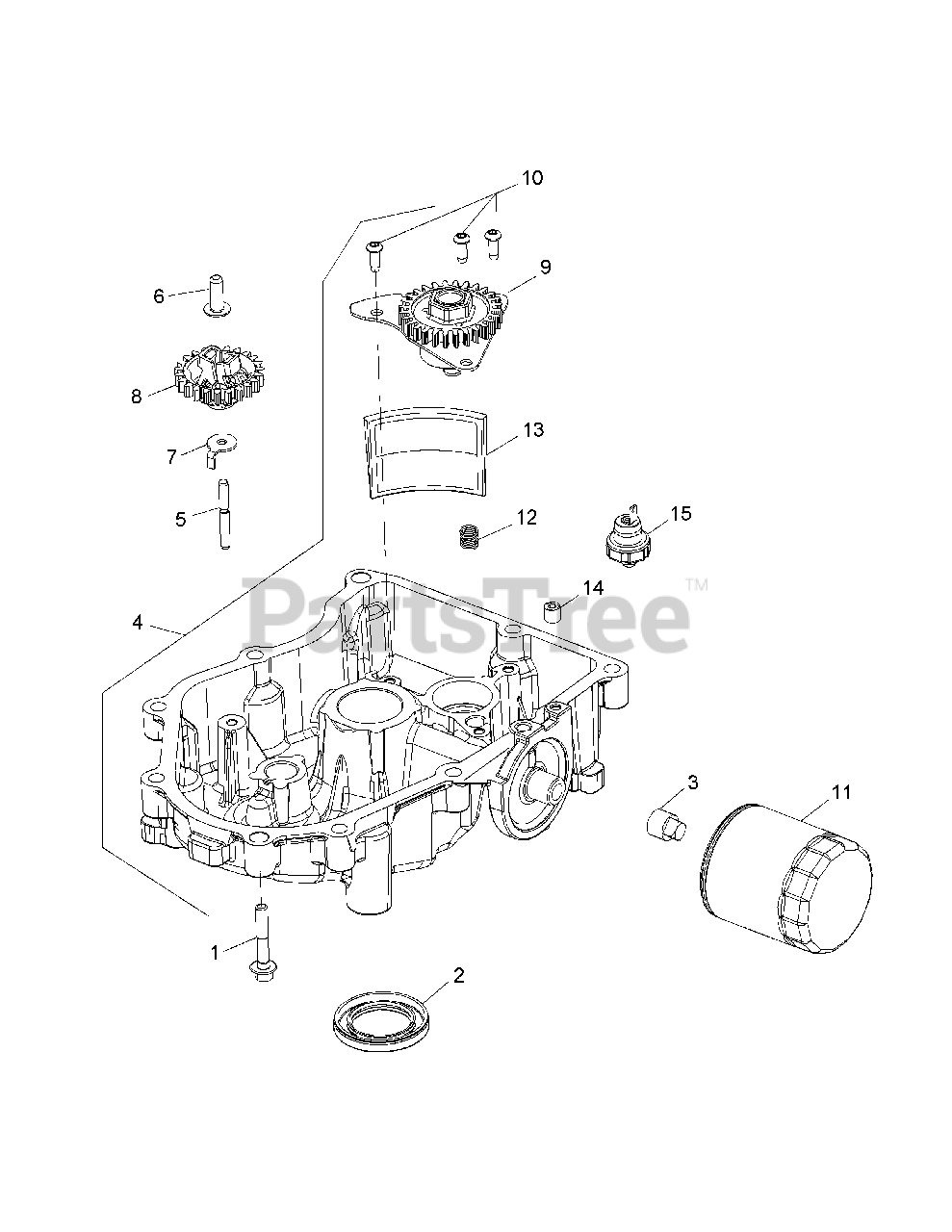

Kohler KT745-3001 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-086-17-S

Flange Screw, M8 x 1.25 x 45

$2.49

$

In Stock, Qty 5

0

2

Cub Cadet KH-25-032-06-S

Oil Seal, 2.38 x 1.45

$10.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-25-139-57-S

Square Head Pipe Plug, 3/8

$2.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-32-199-17-S

Oil Pan Assembly
(Superseded to KH-32-199-24-S)

$

$

Not available

5

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

6

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

7

Cub Cadet KH-24-448-02-S

Locking Tab

$2.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-32-310-02-S

Governor Gear Kit

$9.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-32-393-18-S

Oil Pump Assembly

$30.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-25-086-414-S

Button Head Screw

$

$

Not available

11

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-32-089-06-S

Compression Spring
(Superseded to KH-24-089-74-S)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-32-162-06-S

Oil Screen

$5.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-139-60-S

Pipe Plug, 1/8

$3.49

$

In Stock, only 2 left!

0
