LGT 1050 (13WQ92AP010) - Cub Cadet 50" Lawn Tractor (2014) Mower Deck 50-Inch Parts Diagram

50" Lawn Tractor

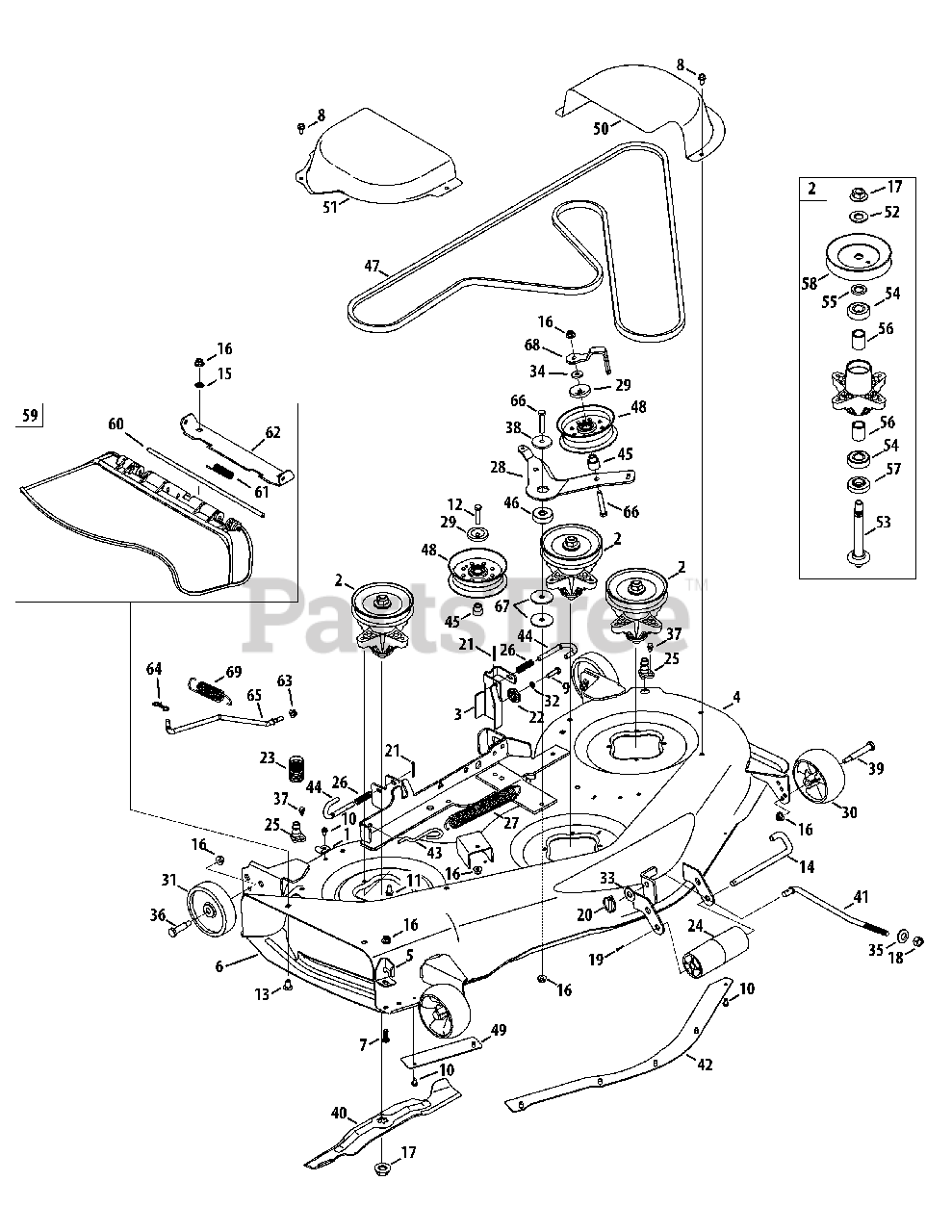

Mower Deck 50-Inch Parts Diagram

  • Title

1

Cub Cadet 96606

Bracket, Hook, Retainer

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 918-04125B

Spindle Assembly, Pulley, 5.39 Dia.
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

Cub Cadet 683-0254B-4021

Bracket Assembly, Deck, Hanger LH

$49.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 983-05148-4021

Deck, 50"

$992.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-3279

Stop, Chute, Deflector

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-3511B-0637

Finger Guard

$69.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 911-3314

Roller Pin-1/2 Dia. x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

15

Cub Cadet 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04243

Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

20

Cub Cadet 753-04070

Pin, Lynch, .1875

$9.99

$

In Stock, Qty 20+

0

21

Cub Cadet 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 917-04074

Gear, Deck, Adjustment

$13.99

$

In Stock, Qty 15

0

23

Cub Cadet 921-04041

Coupler, Water

$23.99

$

In Stock, Qty 20+

0

24

Cub Cadet 731-05679A

Roller, Front
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

25

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

26

Cub Cadet 732-04652

Spring, Compression, .535 OD x 1.751

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 732-04927

Spring, Extension, 1.25 OD x 8.5

$22.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783-08615

Pivot Idler bracket

$79.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

30

Cub Cadet 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

31

Cub Cadet 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

34

Cub Cadet 736-0258

Flat Washer, .385 x 1.00 x .135

$4.49

$

In Stock, only 3 left!

0

35

Cub Cadet 736-0317

Washer, Bell, .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

36

Cub Cadet 938-0373

Bolt, Shoulder, .496 x 1.525, 3/8-16

$9.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

38

Cub Cadet 738-05082

Shoulder Spacer, .970 x .190

$8.49

$

In Stock, only 2 left!

0

39

Cub Cadet 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

40

Cub Cadet 942-04053C

Blade, 17.90 Star 2 In 1

$28.99

$

In Stock, Qty 20+

0

41

Cub Cadet 747-05067A

Rod, Lift, Deck, Front, 11.7

$21.99

$

In Stock, Qty 6

0

42

Cub Cadet 783-04414A-4021

Skirt, Center, 50"

$35.99

$

In Stock, only 2 left!

0

43

Cub Cadet 747-05608

Rod, Deck Spring Hook
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

44

Cub Cadet 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

45

Cub Cadet 748-05037

Shoulder Spacer
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 20+

0

46

Cub Cadet 750-06184

Spacer, .385 ID x 1.75 OD x .585

$11.99

$

In Stock, only 1 left!

0

47

Cub Cadet 954-04077

Belt, V-Type
(Superseded to 954-04077A)

$82.99

$

In Stock, Qty 12

0

48

Cub Cadet 756-05034

Pulley, Idler, 4.50" Dia.
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

49

Cub Cadet 783-04415-4021

Skirt, RH, 50"

$30.99

$

In Stock, only 1 left!

0

50

Cub Cadet 783-04399-4021

Cover, Belt, LH 50"
(Superseded to 783-04399)

$95.99

$

In Stock, only 2 left!

0

51

Cub Cadet 783-04400-4021

Cover, Belt, RH 50"
(Superseded to 783-04400-0637)

$95.99

$

In Stock, Qty 5

0

52

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

53

Cub Cadet 738-1010A

Shaft, Spindle, 5.75

$46.99

$

In Stock, only 2 left!

0

54

Cub Cadet 941-0919A

Bearing, Ball, .787id x 1.85 Od x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

55

Cub Cadet 748-0160A

Spacer, .79 ID x 1.25 OD x .175

$6.99

$

In Stock, only 3 left!

0

56

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

57

Cub Cadet 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

58

Cub Cadet 756-04216

Pulley, Deck, 5.39 Dia.

$33.99

$

In Stock, only 1 left!

0

59

Cub Cadet 631-04070C

Chute Assembly

$122.99

$

In Stock, only 4 left!

0

60

Cub Cadet 711-04565

Pin, Hinge, .3175 Dia. x 14.06 ,1

$15.99

$

In Stock, only 3 left!

0

61

Cub Cadet 732-04372

Spring, Torsion, .44 I.D. x 2.0,

$10.99

$

In Stock, Qty 8

0

62

Cub Cadet 783-05030

Bracket, Chute 50/54"

$29.99

$

In Stock, Qty 5

0

63

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 714-04043

Pin, Cotter, Bow-Tie

$4.99

$

In Stock, Qty 18

0

65

Cub Cadet 747-05701

Rod, Support, Deck (Tuff Torq)

$21.99

$

In Stock, only 3 left!

0

66

Cub Cadet 710-3011

Hex Screw, 3/8-16, 2.25, Gr5, Std

$6.99

$

In Stock, Qty 20+

0

67

Cub Cadet 736-04018

Flat Washer, .380 x 2.00 x .120

$7.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 783-08619

Idler Keeper
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 20+

0

69

Cub Cadet 732-0934

Spring, Extension, 1.15 OD x 5.99

$11.99

$

In Stock, only 1 left!

0
