LGT 1050 (13WQ92AP010) - Cub Cadet 50" Lawn Tractor (2012) Kohler SV730-3002 Head & Valve & Breather Parts Diagram

50" Lawn Tractor

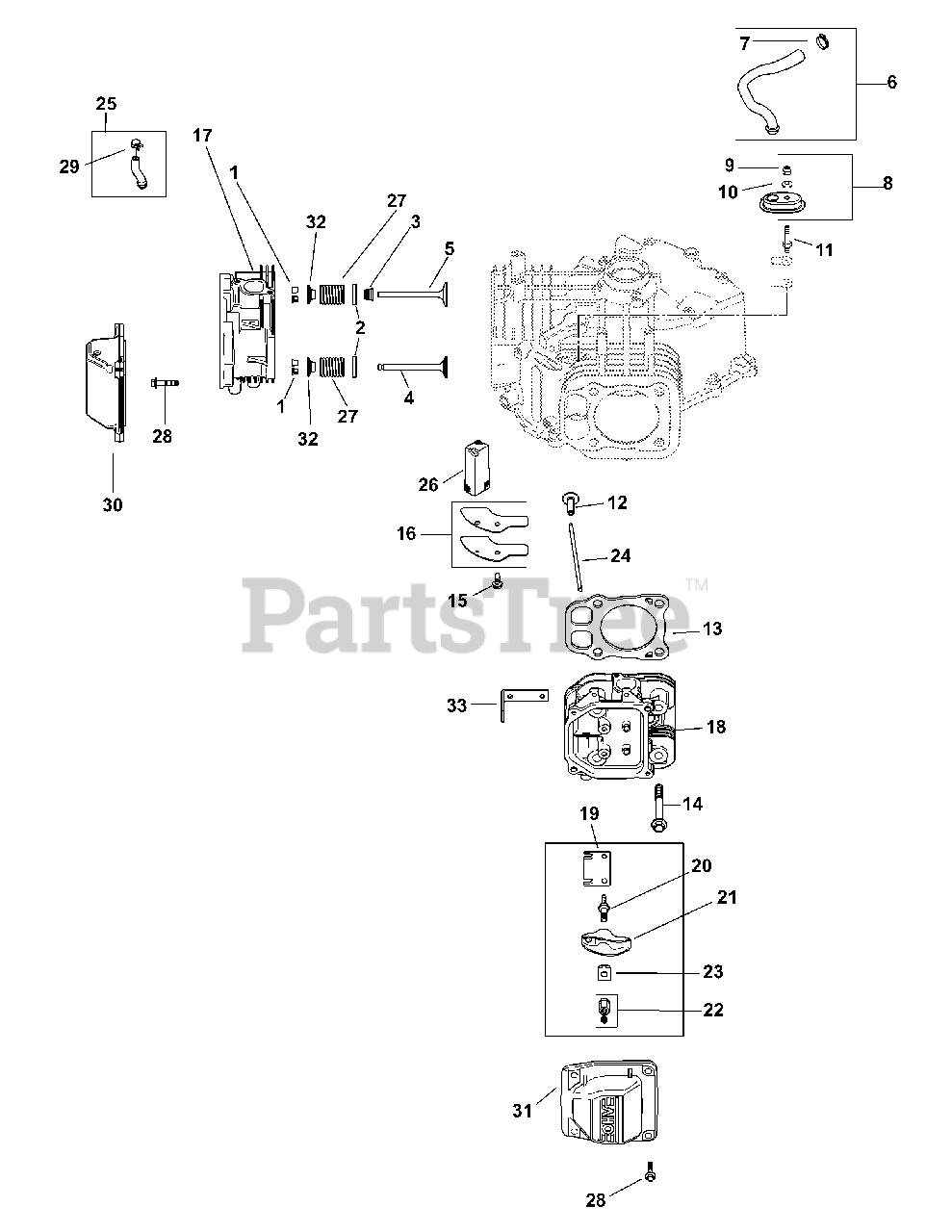

Kohler SV730-3002 Head & Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-016-01

Exhaust Valve
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 7

0

5

Cub Cadet KH-24-017-01

Intake Valve

$

$

Not available

6

Cub Cadet KH-32-326-06-S

Breather Hose Kit (Inc. 7)

$17.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-25-237-31-S

Hose Clamp, 1/2

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-32-081-02-S

Breather Housing Kit (Inc. 9 & 10)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-547050-S

Lock Nut, M5 x .8

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-32-468-01-S

Sealing Washer

$2.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-32-072-03-S

Breather Cover Stud

$2.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-32-019-02-S

Tappet

$13.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-32-841-01-S

Cylinder Head Gasket Kit
(Superseded to KH-32-841-02-S)

$19.99

$

In Stock, Qty 11

0

14

Cub Cadet KH-62-086-08-S

Flg. Screw, M10 x 1.5 x 90

$5.49

$

In Stock, Qty 5

0

15

Cub Cadet KH-M-645016-S

Flg. Thd. Frm. Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

16

Cub Cadet KH-32-096-04-S

Breather Cvr Kit (Inc. KH-32-041-S)

$2.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-32-318-13-S

#1 Cylinder Head Assembly Kit
(Superseded to KH-32-755-39-S)

Note: (Inc.Exhaust Mounting Hardware)

$

$

Not available

18

Cub Cadet KH-32-318-14-S

#2 Cylinder Head Assembly Kit
(Superseded to KH-32-318-22-S)

Note: (Inc.Exhaust Mounting Hardware)

$

$

Not available

19

Cub Cadet KH-32-146-09-S

Guide Plate

$2.49

$

In Stock, Qty 5

0

20

Cub Cadet KH-32-072-04-S

Rocker Stud

$4.99

$

In Stock, only 3 left!

0

21

Cub Cadet KH-32-186-03-S

Rocker Arm

$6.49

$

In Stock, only 1 left!

0

22

Cub Cadet KH-32-100-05-S

Hex Nut Assembly (Incl. set screw)

$3.99

$

In Stock, Qty 7

0

23

Cub Cadet KH-25-599-01-S

Rocker Arm Pivot

$2.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-32-411-04-S

Push Rod

$4.49

$

In Stock, Qty 8

0

25

Cub Cadet KH-32-326-07-S

Fuel Pump Hose Kit w/Clamp

$4.49

$

In Stock, Qty 6

0

26

Cub Cadet KH-32-050-05-S

Breather Filter

$2.99

$

In Stock, Qty 6

0

27

Cub Cadet KH-32-089-05-S

Valve Spring
(Superseded to KH-25-089-17-S)

$2.49

$

In Stock, only 3 left!

0

28

Cub Cadet KH-25-086-374-S

Screw, Pan Head
(Superseded to KH-25-086-660-S)

$2.49

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-25-237-01-S

Hose Clamp

$3.49

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-25-096-10-S

Rocker Stamped Steel Cover
(Superseded to KH-32-755-42-S)

$13.99

$

Usually ships in 3-6 days

0

31

Cub Cadet KH-25-096-09-S

Rocker Stamped Steel Cover

$14.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-25-173-28-S

Valve Spring Cap

$8.49

$

In Stock, Qty 9

0

33

Cub Cadet KH-25-445-03-S

Lifting Strap

$

$

Not available

Cub Cadet KH-32-755-03-S

Cylinder Head Hardware Kit

Note: (Not shown) (Services1 Head.) (Inc. 1-5, & 21-25)

$69.99

$

In Stock, only 1 left!

0
