LGT 1050 (13WQ92AP010) - Cub Cadet 50" Lawn Tractor (2012) Kohler SV730-3002 Blower Housing & Baffles Parts Diagram

50" Lawn Tractor

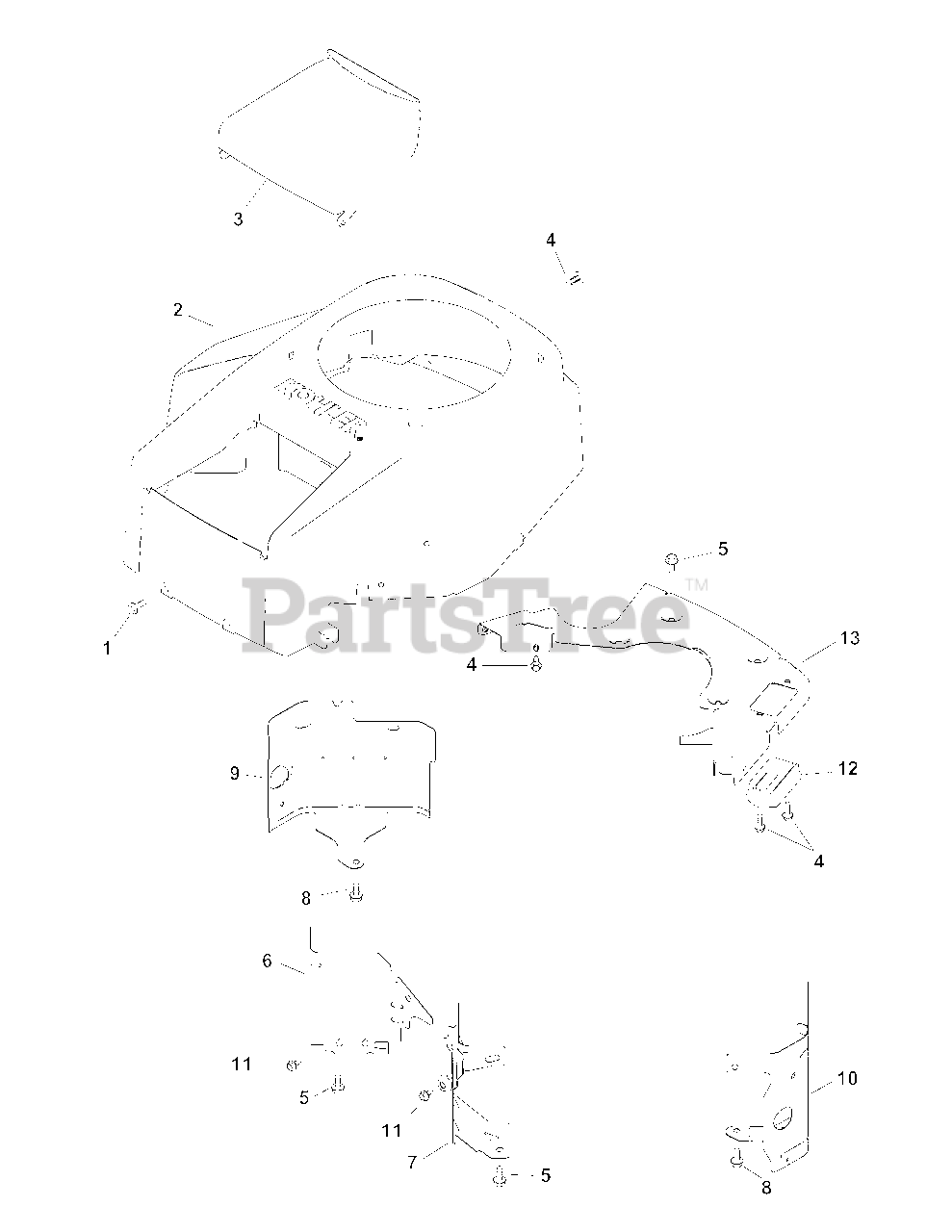

Kohler SV730-3002 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-086-12

Tap Screw, M6 x 1.7 x 18

$

$

Not available

2

Cub Cadet KH-32-027-03-S

Housing Blower Kit

$

$

Not available

3

Cub Cadet KH-32-096-08-S

Air Cleaner Cover

$7.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-M-545016-S

Flg. Thd. Frm. Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-645016-S

Flg. Thd. Frm. Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 13

0

6

Cub Cadet KH-24-063-93-S

Valley Baffle - #1 Cylinder

$

$

Not available

7

Cub Cadet KH-24-063-94-S

Valley Baffle - #2 Cylinder

$9.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-25-086-158-S

Flng. Thd. Frm. Screw, M6 x 1.0 x 10
(Superseded to KH-25-086-406-S)

$2.49

$

In Stock, Qty 9

0

9

Cub Cadet KH-32-063-10-S

Cyl Barrel Baffle - #1 Side

$15.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-32-063-12-S

Cyl Barrel Baffle - #2 Side

$19.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-0545010

Flg. Thd. Frm. Screw, M5 x .8 x 10

$

$

Not available

12

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

13

Cub Cadet KH-32-146-05-S

Backing Plate Kit

$

$

Not available

Cub Cadet KH-41-037-10-S

Nameplate Service

Note: (Not shown)

$8.99

$

In Stock, only 4 left!

0
