LE 720 R (41BJLE-B054) - Troy-Bilt Trimmer Plus Lawn Edger Attachment General Assembly Parts Diagram

Trimmer Plus Lawn Edger Attachment

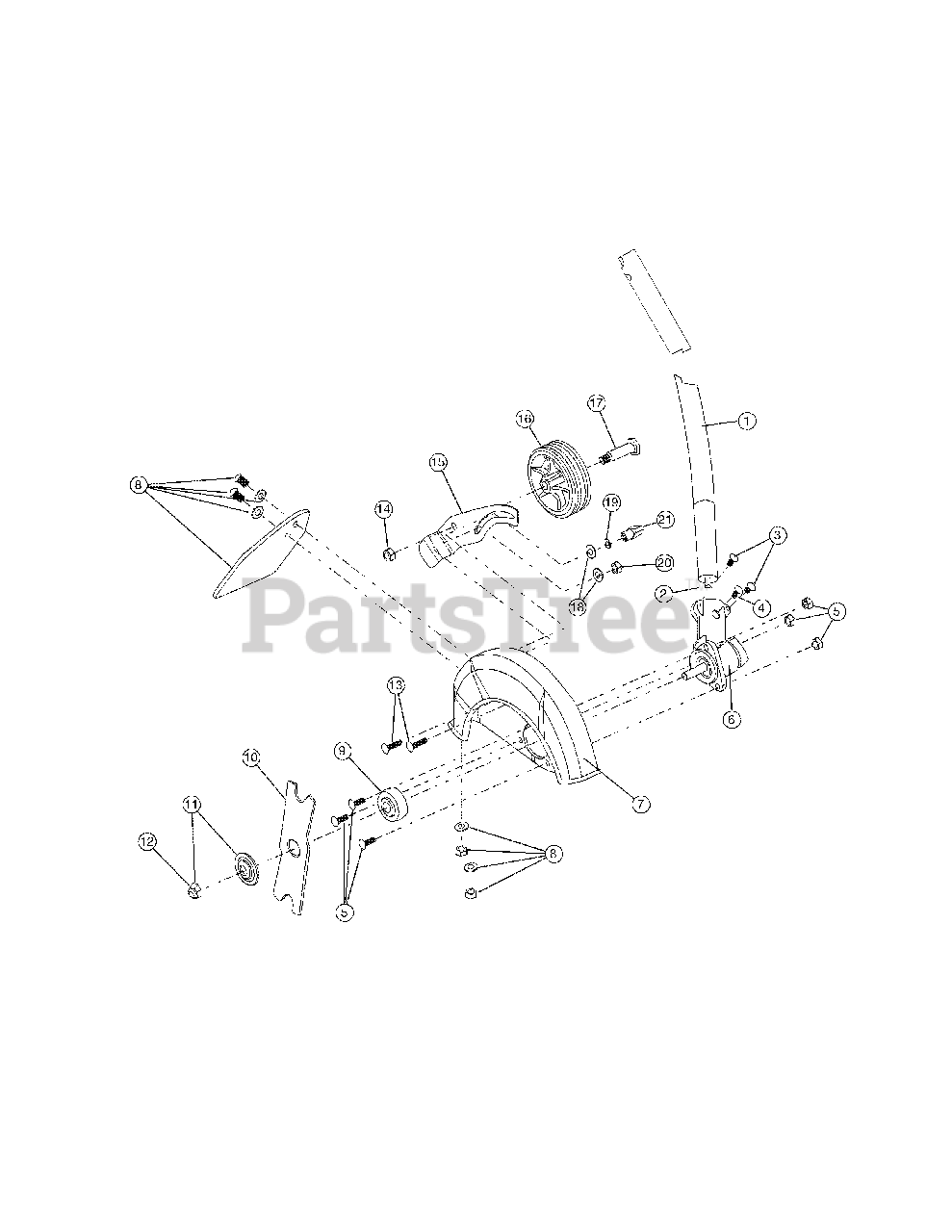

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 753-04259

Boom Assembly

$58.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 791-181570

Drive Shaft

$61.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 791-182195

Boom Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 753-1217

Guard Mounting Hardware

$3.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-04258

Gearbox Assembly

$108.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 753-04260

Blade Guard

$58.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 753-04262

Deflector w/Hardware

$

$

Not available

9

Troy-Bilt 753-04261

Spacer
(Superseded to 792-10785)

$2.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 791-613223B

Blade
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 791-180014B

Blade Clamp Washer

$12.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 791-613221

Blade Retainer Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 753-04270

Wheel Bracket Mounting Bolt

$4.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 753-04264

Nut
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

15

Troy-Bilt 753-04265

Edger Guide

$

$

Not available

16

MTD 791-181242

Wheel

$

$

Not available

17

Troy-Bilt 791-180776

Shoulder Bolt
(Superseded to 5556)

$1.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 791-182216

Washer

$

$

Not available

19

Troy-Bilt 791-182215

Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

20

Troy-Bilt 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

21

MTD 791-182214

Edger Guide Knob

$

$

Not available
