LE 389 - Husqvarna Walk-Behind Edger (2006-04) Wheel Bracket Assembly Parts Diagram

Walk-Behind Edger

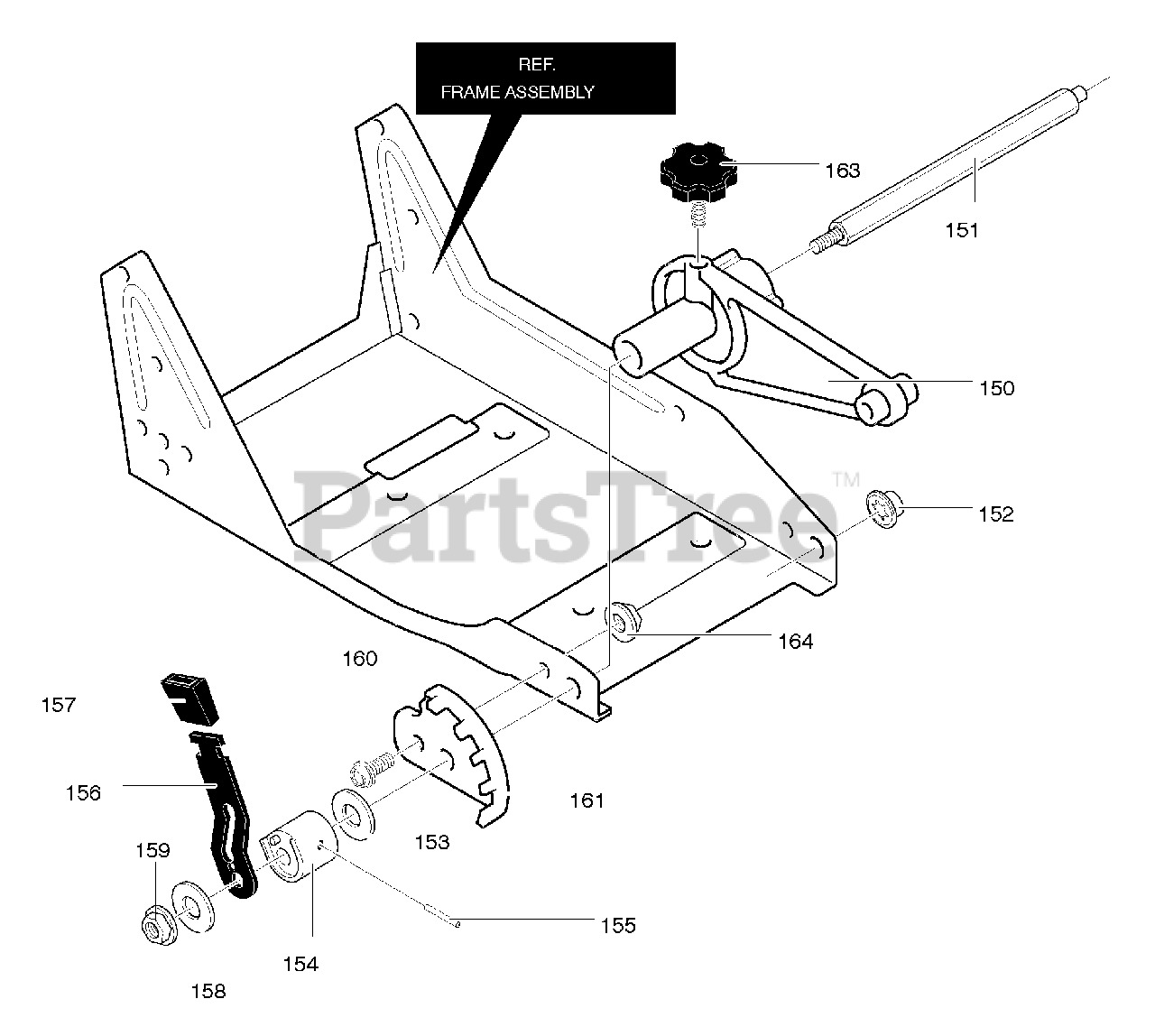

Wheel Bracket Assembly Parts Diagram

  • Title
150

Husqvarna 601002233

Front Wheel Arm

$

$

Not available

151

Husqvarna 601002234

Rod, Front Mount Curb

$

$

Not available

152

Husqvarna 601002235

Pushnut, Washer

$

$

Not available

153

Husqvarna 601002236

Plastic Washer

$

$

Not available

154

Husqvarna 601002237

Spacer, Height Adjust

$

$

Not available

155

Husqvarna 601002238

Pin, Spring

$

$

Not available

156

Husqvarna 601002239

Lever, Height Adjust

$

$

Not available

157

Husqvarna 601002040

Knob, Rectangle

$

$

Not available

158

Husqvarna 601000094

Flatwasher

$

$

Not available

$

$

Not available

160

Husqvarna 601002227

Screw, 5/16-18x.63

$

$

Not available

161

Husqvarna 601002242

Plate, Height Adjust

$

$

Not available

163

Husqvarna 601002243

Knob, Molded

$

$

Not available

164

Husqvarna 601000867

Nut, 5/16-18

$

$

Not available
