LE 389 - Husqvarna Walk-Behind Edger (2006-04) Engine Mount Assembly Parts Diagram

Walk-Behind Edger

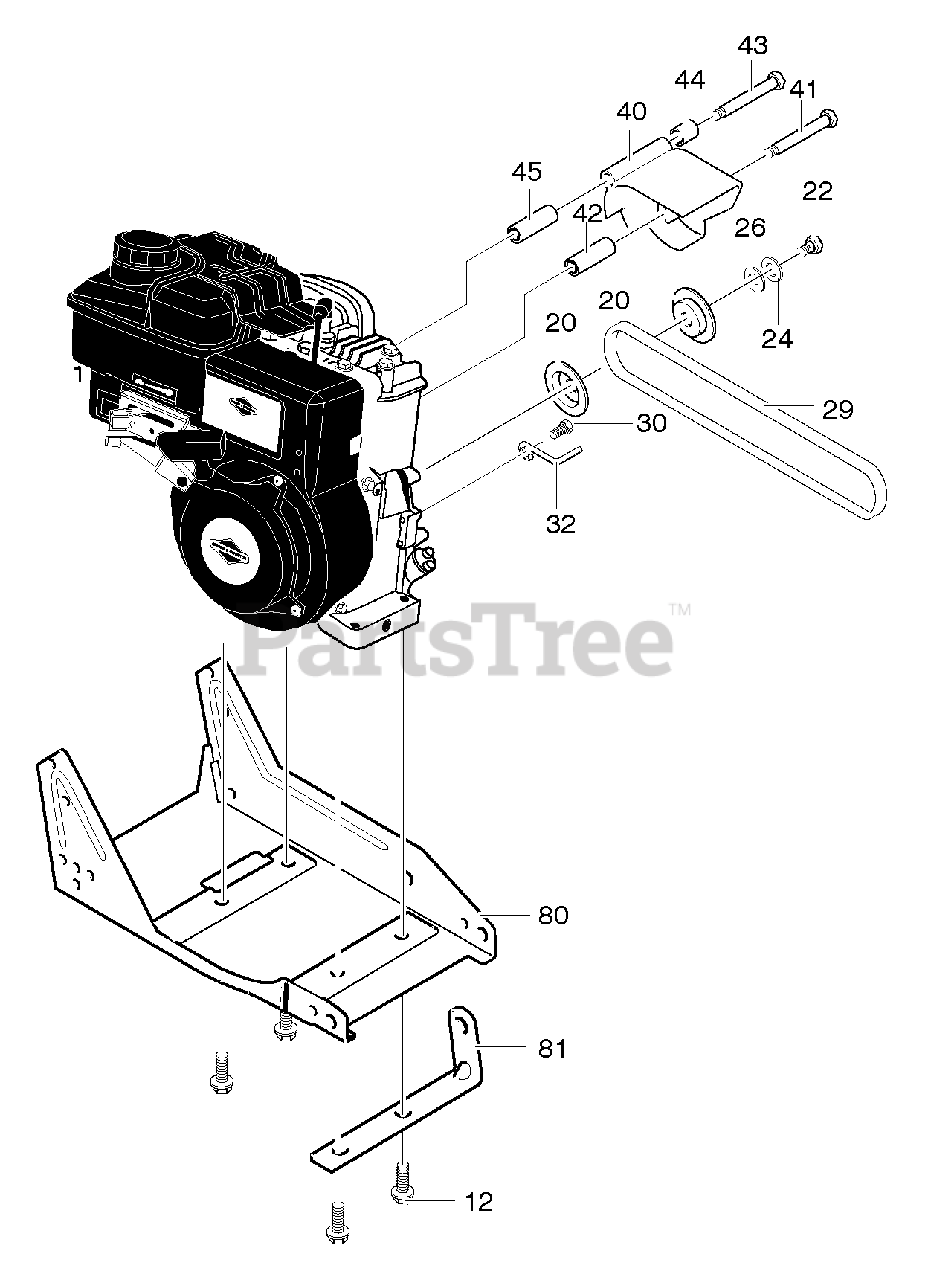

Engine Mount Assembly Parts Diagram

  • Title
10

Engine

$

$

Not available

12

Husqvarna 601000835

Screw, 3/8-16x1.00

$

$

Not available

20

Husqvarna 601002203

Pulley, Half

$

$

Not available

22

Husqvarna 601001327

Screw, 5/16-24x1.00

$

$

Not available

$

$

Not available

26

Husqvarna 601000547

Flatwasher

$

$

Not available

29

Husqvarna 601000509

Belt, V4L 32.60LG

$

$

Not available

30

Husqvarna 601001433

Screw and Washer Assy

$

$

Not available

32

Husqvarna 601000580

Guide, Belt

$

$

Not available

40

Husqvarna 601002204

Cover, Engine Pulley

$

$

Not available

41

Husqvarna 601000080

Screw, 5/16-24x3.00

$

$

Not available

42

Husqvarna 601002205

Spacer, Sleeve

$

$

Not available

43

Husqvarna 601002206

Screw, 5/16-24x3.75

$

$

Not available

$

$

Not available

45

Husqvarna 601002205

Spacer, Sleeve

$

$

Not available

80

Husqvarna 601002208

Frame, Assy. Edger

$

$

Not available

$

$

Not available

Husqvarna MS-3616MA

Manual, Owner's

$

$

Currently unavailable
