LE 389 - Husqvarna Walk-Behind Edger (1996-11) Engine Assembly Parts Diagram

Walk-Behind Edger

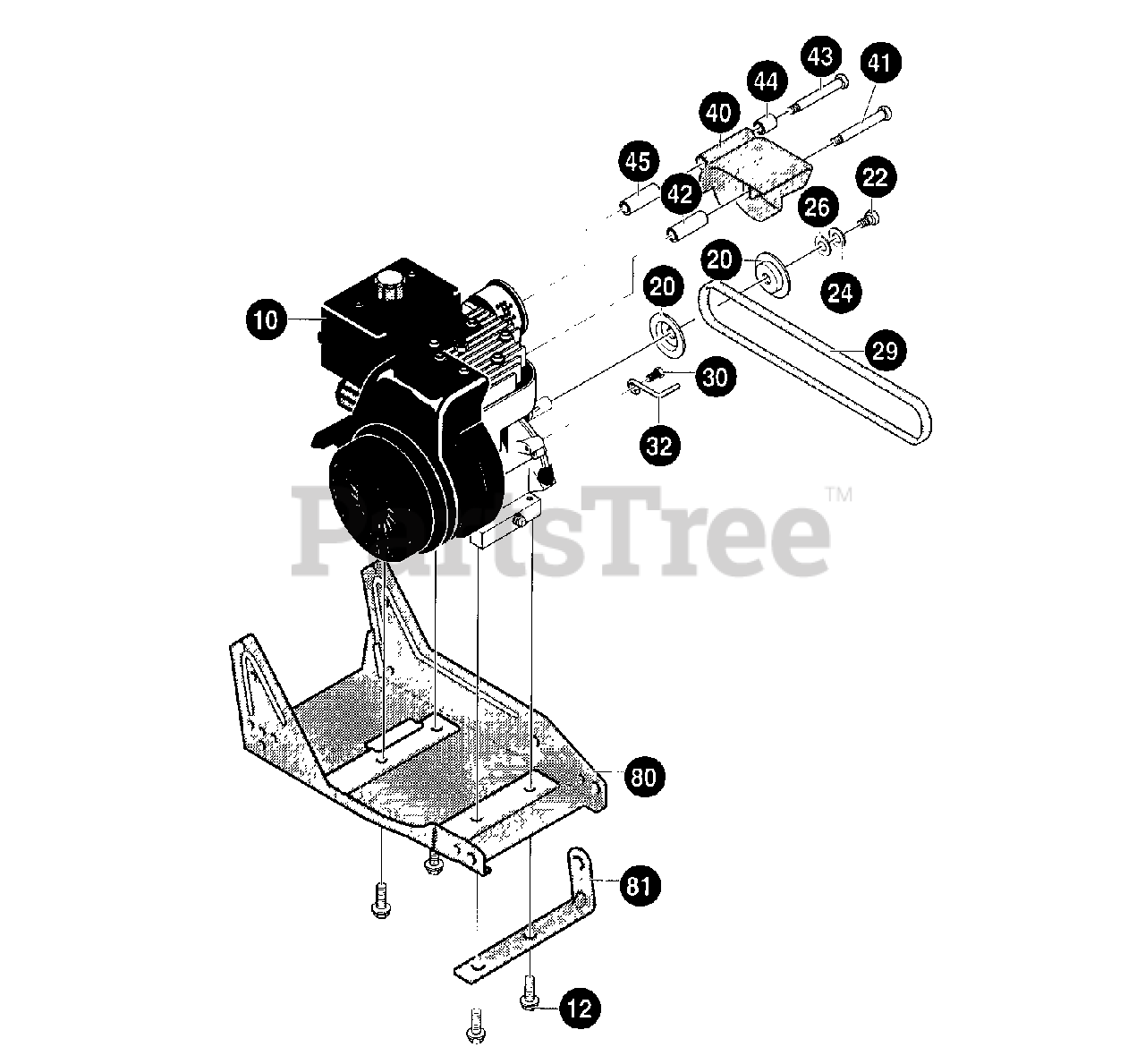

Engine Assembly Parts Diagram

  • Title

10

ENGINE 3.8HP

Note: (See Engine Manual)

$

$

Not available

12

Husqvarna 601002193

Screw, 3/8-16 x 1.00

$

$

Not available

20

Husqvarna 601001327

Pulley, Half V3L

$

$

Not available

22

Husqvarna 601001327

Screw, 5/16-24 x 1.00 HHC

$

$

Not available

24

Husqvarna 601000023

Washer, SPTLK .328 x .60 x .09

$

$

Not available

26

Husqvarna 601000547

Flatwasher .333 x 87 x .119

$

$

Not available

29

Husqvarna 601000509

Belt, V4L 32.60LG

$

$

Not available

30

Husqvarna 601001965

Screw and Washer Assy

$

$

Not available

32

Husqvarna 601000580

Belt Guide

$

$

Not available

40

Husqvarna 601002204

Cover, Engine Pulley

$

$

Not available

41

Husqvarna 601000080

Screw, 5/16-24 x 3.00

$

$

Not available

42

Husqvarna 601000080

Spacer, Sleeve .335 x.431 x 2.50

$

$

Not available

43

Husqvarna 601002206

Screw, 5/16-24 x 3.75

$

$

Not available

44

Husqvarna 601002207

Spacer,.322 ID 562 OD

$

$

Not available

45

Husqvarna 601002205

Spacer, Sleeve .335 x .431 x 2.50

$

$

Not available

80

Husqvarna 601002208

Frame, Assy Edger

$

$

Not available

81

Husqvarna 601002209

Strap

$

$

Not available

Husqvarna 601002232

Owner's Manual

$

$

Not available
