LE 389 (EH4000x37NB) - Husqvarna Walk-Behind Edger (2007) Edger Blade Assembly Parts Diagram

Walk-Behind Edger

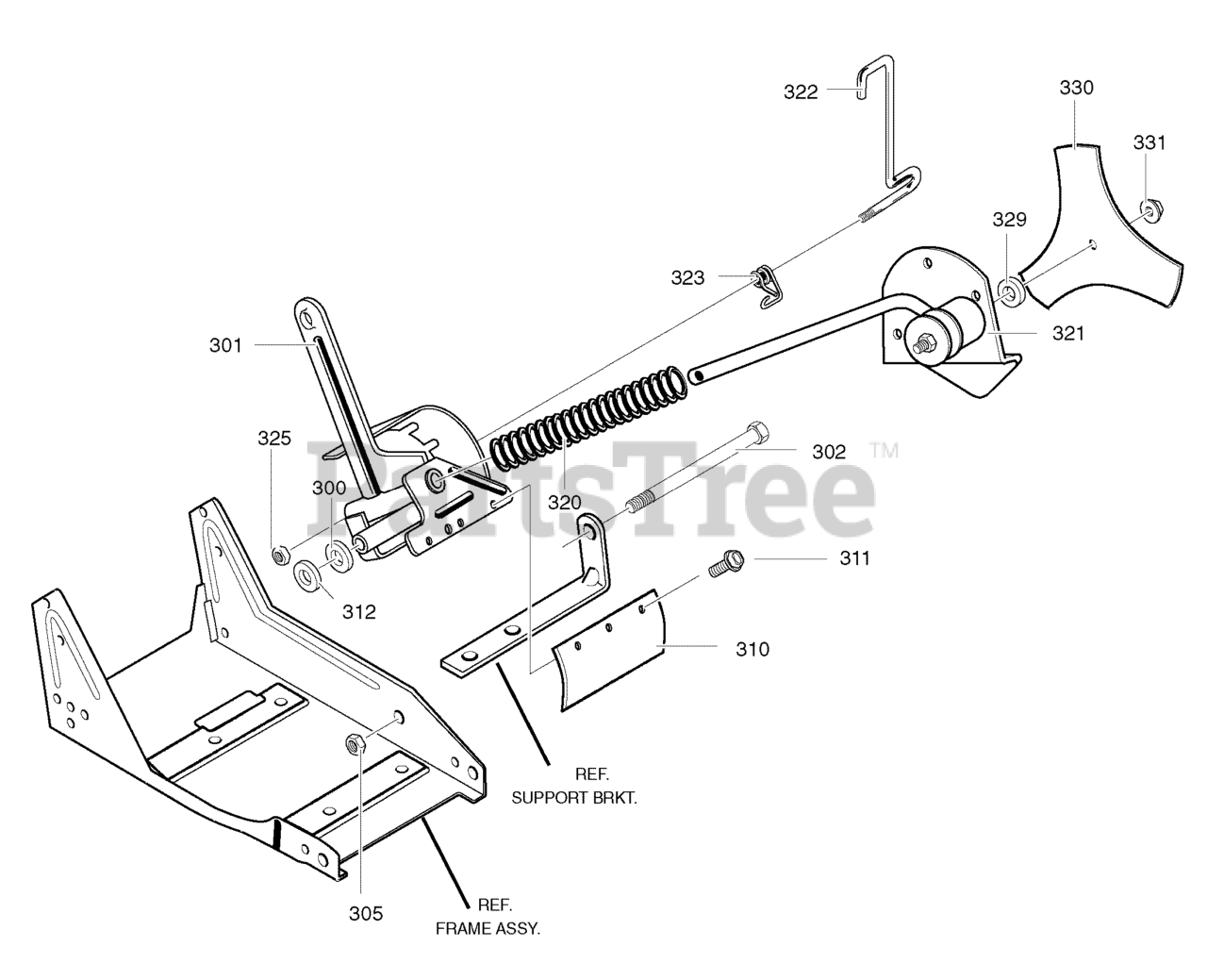

Edger Blade Assembly Parts Diagram

  • Title
300

Murray 601 00 00 21

FLATWASHER

$

$

Currently unavailable

301

Murray 601 00 21 96

QUILL, Support

$

$

Currently unavailable

302

Murray 601 00 22 16

BOLT, 3/8-16

$

$

Currently unavailable

305

Murray 601 00 24 07

NUT, 3/8-16

$

$

Currently unavailable

310

Murray 601 00 22 17

DEFLECTOR, Rubber

$

$

Currently unavailable

311

Murray 601 00 22 18

SCREW 10-16x1.50

$

$

Currently unavailable

312

Murray 601 00 22 13

FLATWASHER

$

$

Currently unavailable

320

Murray 601 00 23 14

SPRING, Compression

$

$

Currently unavailable

321

Murray 601 00 21 97

QUILL, Assembly

$

$

Currently unavailable

322

Murray 601 00 22 44

LEVER, Index

$

$

Currently unavailable

323

Murray 601 00 22 45

SPRING, Torsion

$

$

Currently unavailable

325

Murray 601 00 22 59

NUT, 5/16-18

$

$

Currently unavailable

329

Murray 601 00 00 94

FLATWASHER

$

$

Currently unavailable

330

Murray 601 00 22 46

BLADE, Edger

$

$

Currently unavailable

331

Murray 601 00 05 52

NUT, 1/2-20

$

$

Currently unavailable
