LE 389 (EH4000x37NB) - Husqvarna Walk-Behind Edger (2007) Blade Guard Assembly Parts Diagram

Walk-Behind Edger

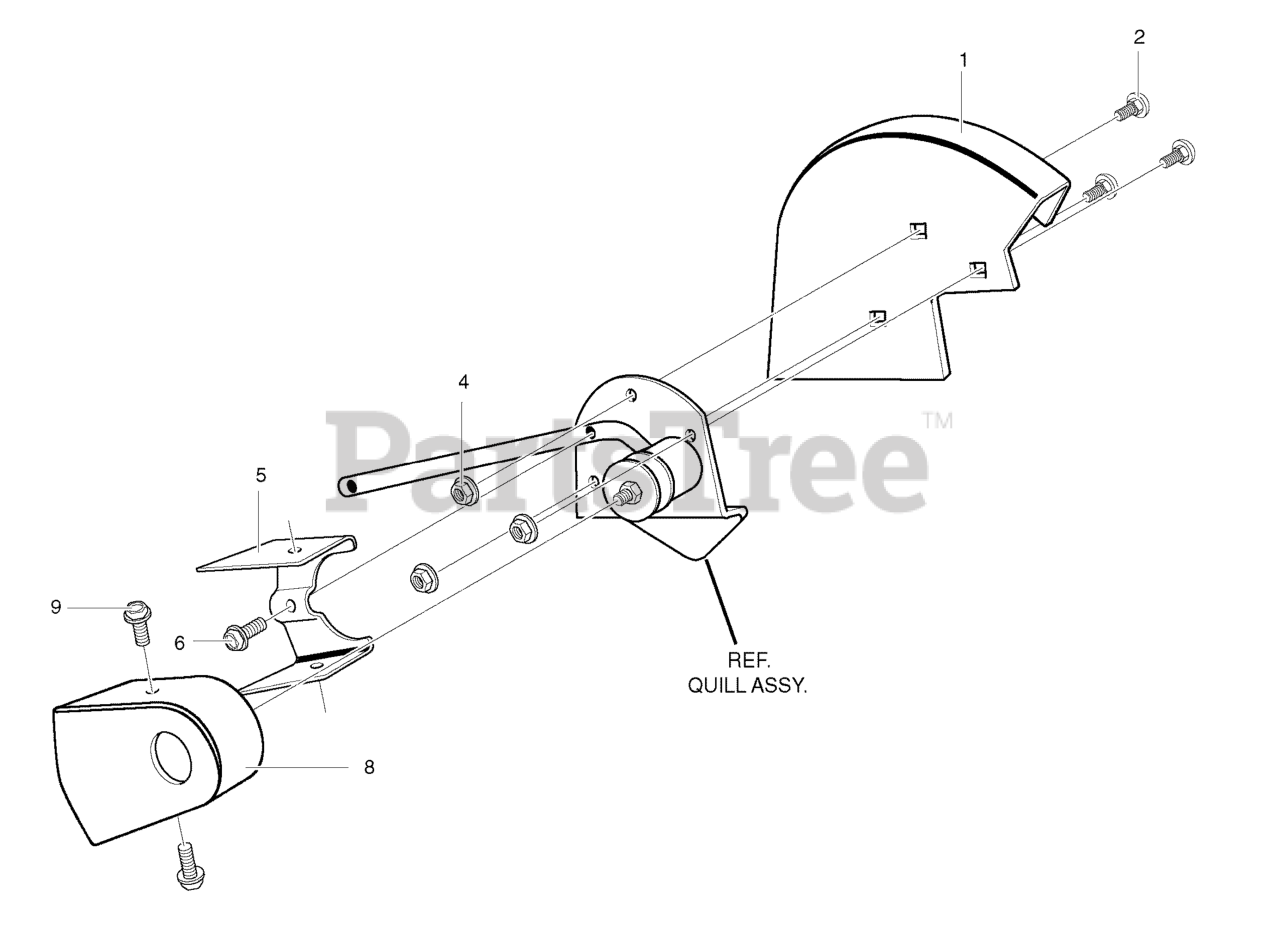

Blade Guard Assembly Parts Diagram

  • Title
1

Murray 601 00 22 10

GUARD, Blade

$

$

Currently unavailable

2

Murray 601 00 07 86

BOLT, Carriage 5/16-18x.63

$

$

Currently unavailable

4

Murray 601 00 08 67

NUT, 5/16-18

$

$

Currently unavailable

5

Murray 601 00 22 11

GUIDE, Belt Front

$

$

Currently unavailable

6

Murray 601 00 21 95

SCREW, 1/4-20x.50

$

$

Currently unavailable

8

Murray 601 00 19 78

COVER, Quill Pulley

$

$

Currently unavailable

9

Murray 601 00 24 70

SCREW, 10-16x.50

$

$

Currently unavailable
