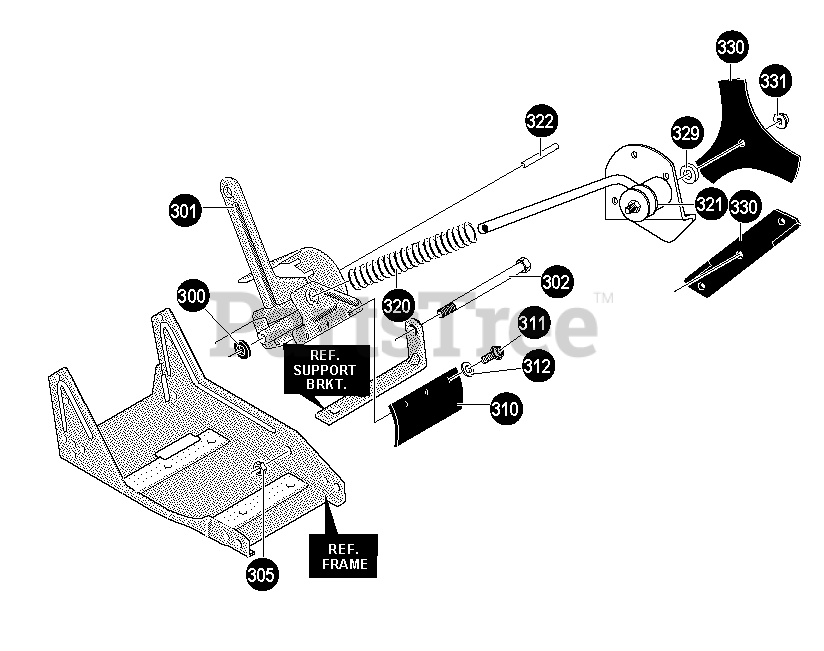

LE 359 - Husqvarna Walk-Behind Edger (1996-11) Blade Assy. Parts Diagram

Walk-Behind Edger

Blade Assy. Parts Diagram

  • Title

300

Husqvarna 601000021

Flatwasher, .531x1.06x.095

$

$

Not available

301

Husqvarna 601002310

Quill Suppt. Assy.

$

$

Not available

302

Husqvarna 601002216

Shoulder Bolt 3/8-16

$

$

Not available

305

Husqvarna 601000060

Nut, 3/8-16 Reghexctrlk
(Superseded to 601002407)

$

$

Not available

310

Husqvarna 601002217

Deflector, Rubber

$

$

Not available

311

Husqvarna 601002218

Screw, 10-16x.50 Tap

$7.49

$

Usually ships in 3-10 days

0

312

Husqvarna 601002213

Flatwasher, .203x.56x.040

$

$

Not available

320

Husqvarna 601000582

Compression Spring
(Superseded to 601002314)

$11.53

$

Usually ships in 3-10 days

0

321

Husqvarna 601500005

Quill Assembly, Lrg Suppt.

$

$

Not available

322

Husqvarna 601002219

Spring Pin

$

$

Not available

329

Husqvarna 601000094

Flatwasher, .515x1.38x.119

$

$

Not available

330

Husqvarna 601001974

Straight Blade Edger
(Superseded to 601002454)

$

$

Not available

Husqvarna 601002246

Triangular Blade Edger

$

$

Not available

331

Husqvarna 601000552

Nut, 1/-20 Wdfl

$10.99

$

In Stock, only 1 left!

0
