LE 3170R (80370) - Snapper 17" Snow Thrower, 3hp COVERS, ENGINE Parts Diagram

17" Snow Thrower, 3hp

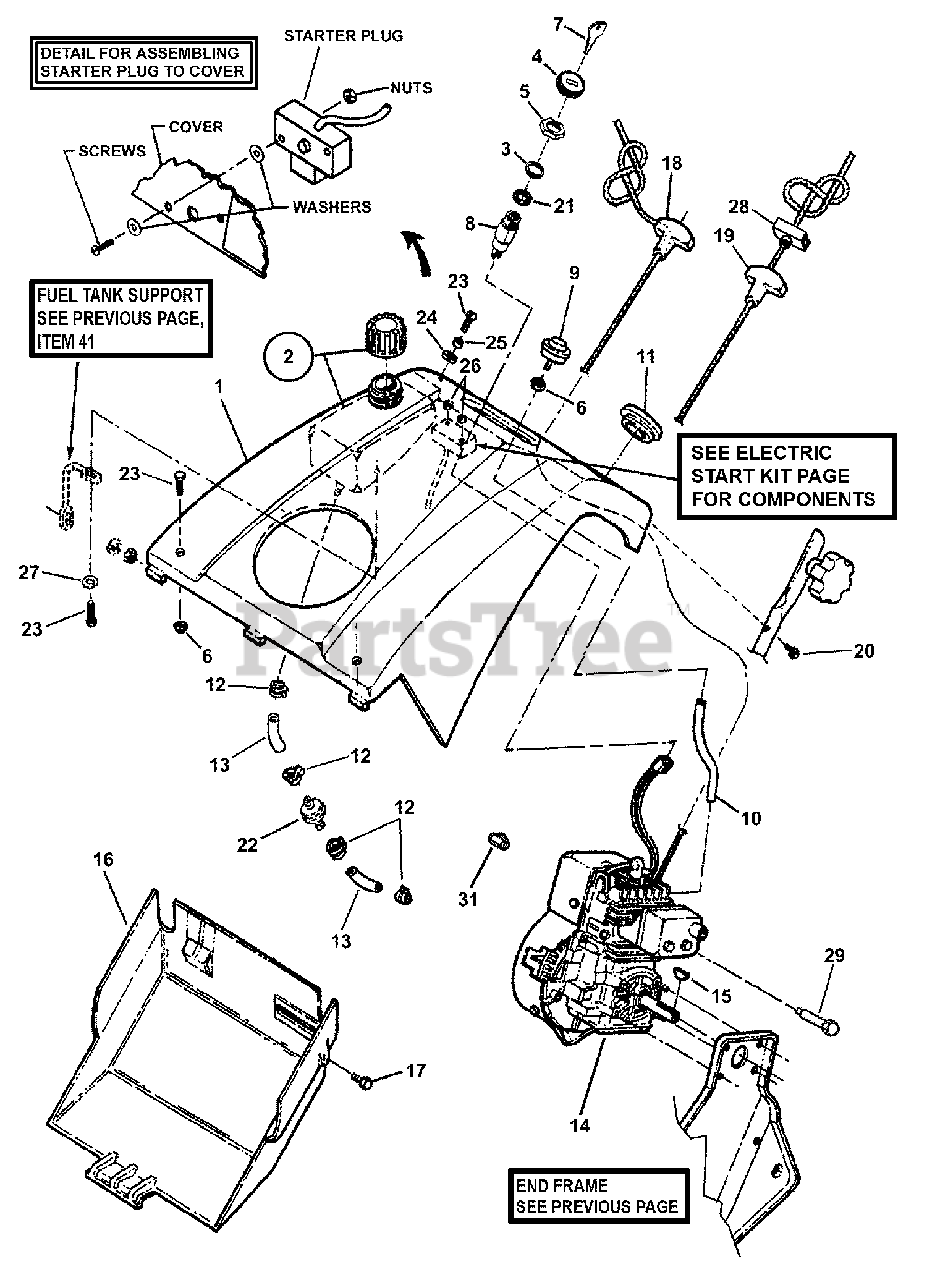

COVERS, ENGINE Parts Diagram

  • Title

1

Snapper 7052977

COVER, Top (includes Eyelet # 24636)
(Superseded to 7052977YP)

Note: all Models except 3190M & 3190E

$426.99

$

Usually ships in 2-12 days

0

1

Snapper 7058013

COVER, Top (includes Eyelet # 24636)
(Superseded to 7052977YP)

Note: 3190M & 3190E

$426.99

$

Usually ships in 2-12 days

0

2

Snapper 7052974

ASSEMBLY, Fuel Tank (includes Cap # 24495)
(Superseded to 7052974SM)

$152.99

$

Usually ships in 2-12 days

0

3

Snapper 7016132

SPACER
(Superseded to 7016132SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7091584

NUT, 1/4-20 Hex Flange lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 5

0

7

Snapper 7011138

KEY (Pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

8

Snapper 7017817

SWITCH, Ignition
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

9

Snapper 7014638

PRIMER
(Superseded to 7014638SM)

$

$

Not available

10

Snapper 7014639

HOSE, Primer
(Superseded to 7014639SM)

Note: .126/.141 I.D. x 9-1/2" long

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7091183

PLUG, Hole
(Superseded to 7091183SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7076272

HOSE, Fuel
(Superseded to 791766)

Note: 1/4" I.D. x 8-1/2" long

$7.99

$

In Stock, Qty 20+

0

14

Snapper HSK600-1683T

* ENGINE, 3 HP Tecumseh (HSK 600-1683T)

Note: 17" Models (Engine Crank Shaft: 2.21" long)

$

$

Currently unavailable

14

Snapper HSK600-1691T

* ENGINE, 3 HP Tecumseh (HSK 600-1691T)

Note: 19" Models (Engine Crank Shaft: 3.21" long)

$

$

Currently unavailable

14

Snapper HSK600-1702T

* ENGINE, 3 HP Tecumseh (HSK 600-1702T)

Note: 19" Electric Start Models (Engine Crank Shaft: 3.21" long)

$

$

Currently unavailable

14

Snapper TH098SA-1732E

* ENGINE, 3 HP Tecumseh (TH098SA-1732E)

Note: 17" Series 1

$

$

Currently unavailable

14

Snapper TH098SA-1733E

* ENGINE, 3 HP Tecumseh (TH098SA-1733E)

Note: 19" Series 1

$

$

Currently unavailable

14

Snapper TH098SA-1734E

* ENGINE, 3 HP Tecumseh (TH098SA-1734E)

Note: 19" Euro Series 1

$

$

Currently unavailable

15

Snapper 7010783

KEY, 5/32 x 5/8" Woodruff
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7023978

COVER, Bottom
(Superseded to 7023978SM)

Note: Recoil Start Models

$57.99

$

In Stock, only 1 left!

0

16

Snapper 7024923

COVER, Bottom
(Superseded to 7024923SM)

Note: Electric Start Models

$20.99

$

Usually ships in 2-12 days

0

17

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

18

Snapper 7024478

HANDLE, Pull Rope

Note: 94 Model Year and Earlier

$

$

Not available

19

Snapper 7028201

HANDLE, Pull Rope

Note: 95 Model Year and Later

$

$

Not available

19

Snapper 7025063

HANDLE, Pull Rope
(Superseded to 7025063SM)

Note: 3190M, 3190E & Series 1 Models (not shown)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper 7091196

SCREW, #8 x 1-1/4" Hi-Lo Self-Tap
(Superseded to 7091196SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7014359

FILTER, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

23

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

24

Snapper 7027910

ISOLATOR, Fuel Tank/Cover
(Superseded to 7027910SM)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7027911

SPACER
(Superseded to 7027911SM)

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 7090010

WASHER, #10 Flat
(Superseded to 7091552SM)

Note: Electric Start Models only

$3.99

$

In Stock, Qty 14

0

27

Snapper 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

28

Snapper 7028202

INSERT, Starter Handle
(Superseded to 7028202SM)

Note: 95 Model Year and Later

$2.49

$

Usually ships in 2-12 days

0

29

Snapper 7027945

MUFFLER STUD
(Superseded to 7027945YP)

Note: LE317

$34.99

$

Usually ships in 2-12 days

0

30

Snapper 7024640

MUFFLER STUD
(Superseded to 7027925SM)

Note: LE319 (not shown)

$15.99

$

Usually ships in 2-12 days

0

31

Snapper 7028599

KNOB, Red
(Superseded to 7028599SM)

$3.49

$

Usually ships in 2-12 days

0
