LE 3170E (80488) - Snapper 17" Snow Thrower, 3hp HANDLES, AUGER CONTROL Parts Diagram

17" Snow Thrower, 3hp

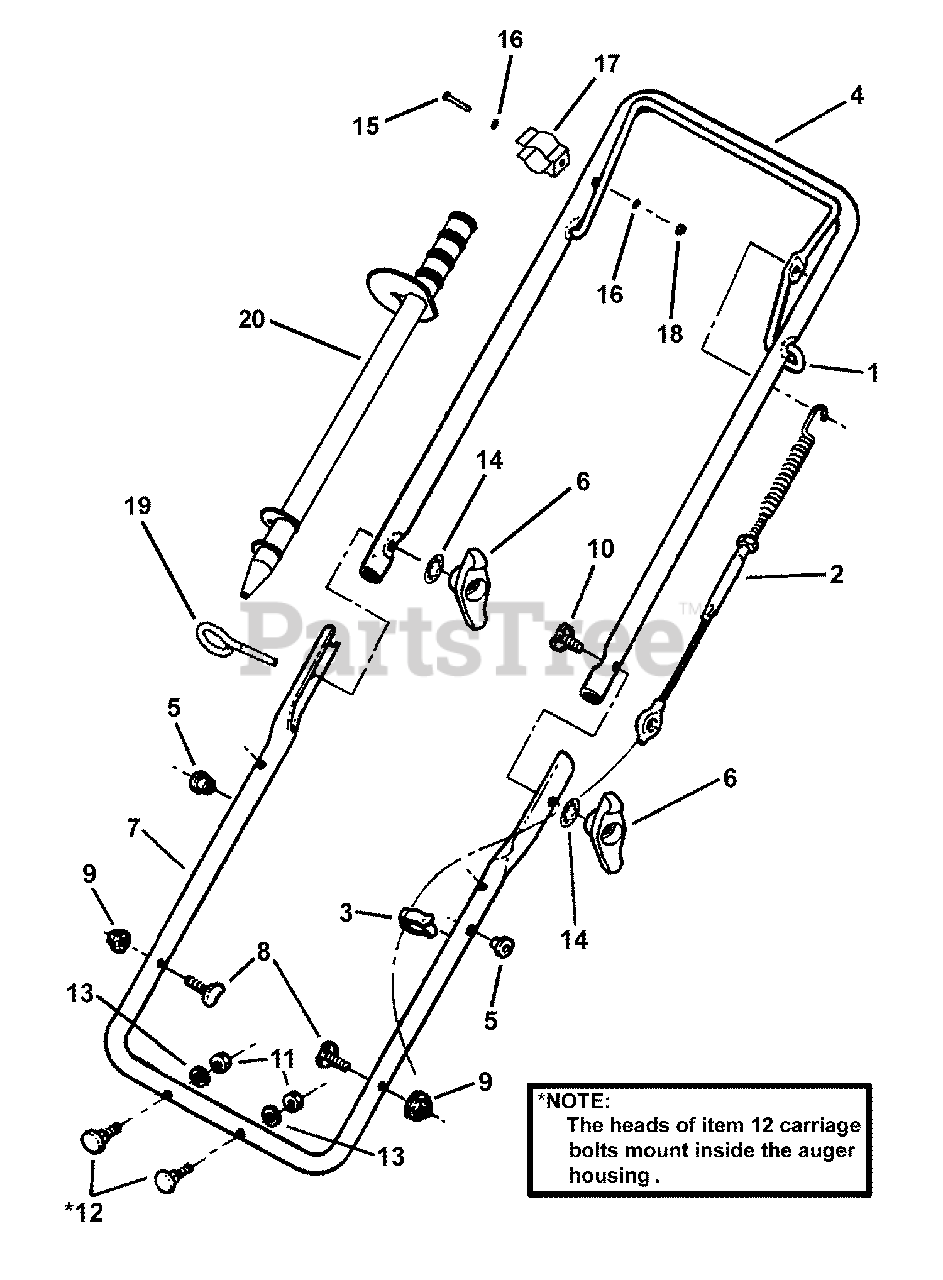

HANDLES, AUGER CONTROL Parts Diagram

  • Title

1

Snapper 7024645

BAIL, Drive Control
(Superseded to 7024645SM)

$53.99

$

In Stock, only 1 left!

0

2

Snapper 7024662

CABLE, Drive Control
(Superseded to 7024662SM)

$14.99

$

In Stock, only 4 left!

0

3

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7033496

HANDLE, Upper
(Superseded to 7033496SM)

$89.99

$

Usually ships in 2-12 days

0

5

Snapper 7091182

INSERT, Nylon
(Superseded to 7091182SM)

$3.49

$

In Stock, only 4 left!

0

6

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7036570

HANDLE, Lower
(Superseded to 7036570SM)

$168.99

$

Usually ships in 2-12 days

0

8

Snapper 7091190

BOLT, 5/16-18 x 1-3/8" Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

9

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7091013

BOLT, 5/16-18 x 2" Curved Head, GR 2
(Superseded to 7091013SM)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091612

* BOLT, 5/16-18 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

13

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091757

SCREW, #10-24 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7091757SM)

$3.49

$

In Stock, Qty 8

0

16

Snapper 7090011

WASHER, #10 Flat
(Superseded to 7090011SM)

$3.99

$

In Stock, only 1 left!

0

17

Snapper 7071895

HOLDER, Snostik, Upper
(Superseded to 7071895YP)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 7091267

NUT, #10-24 Hex Center Lock
(Superseded to 7091267SM)

$3.99

$

In Stock, Qty 6

0

19

Snapper 7075342

HOLDER, Snostik, Lower (5/16-18 thread)
(Superseded to 7075342SM)

$

$

Not available

20

Snapper 7075909

SNOW STICK
(Superseded to 1736094YP)

$34.99

$

In Stock, only 2 left!

0
