LE 3170E (80488) - Snapper 17" Snow Thrower, 3hp DISCHARGE CHUTE, DEFLECTOR, CONTROL HANDLE Parts Diagram

17" Snow Thrower, 3hp

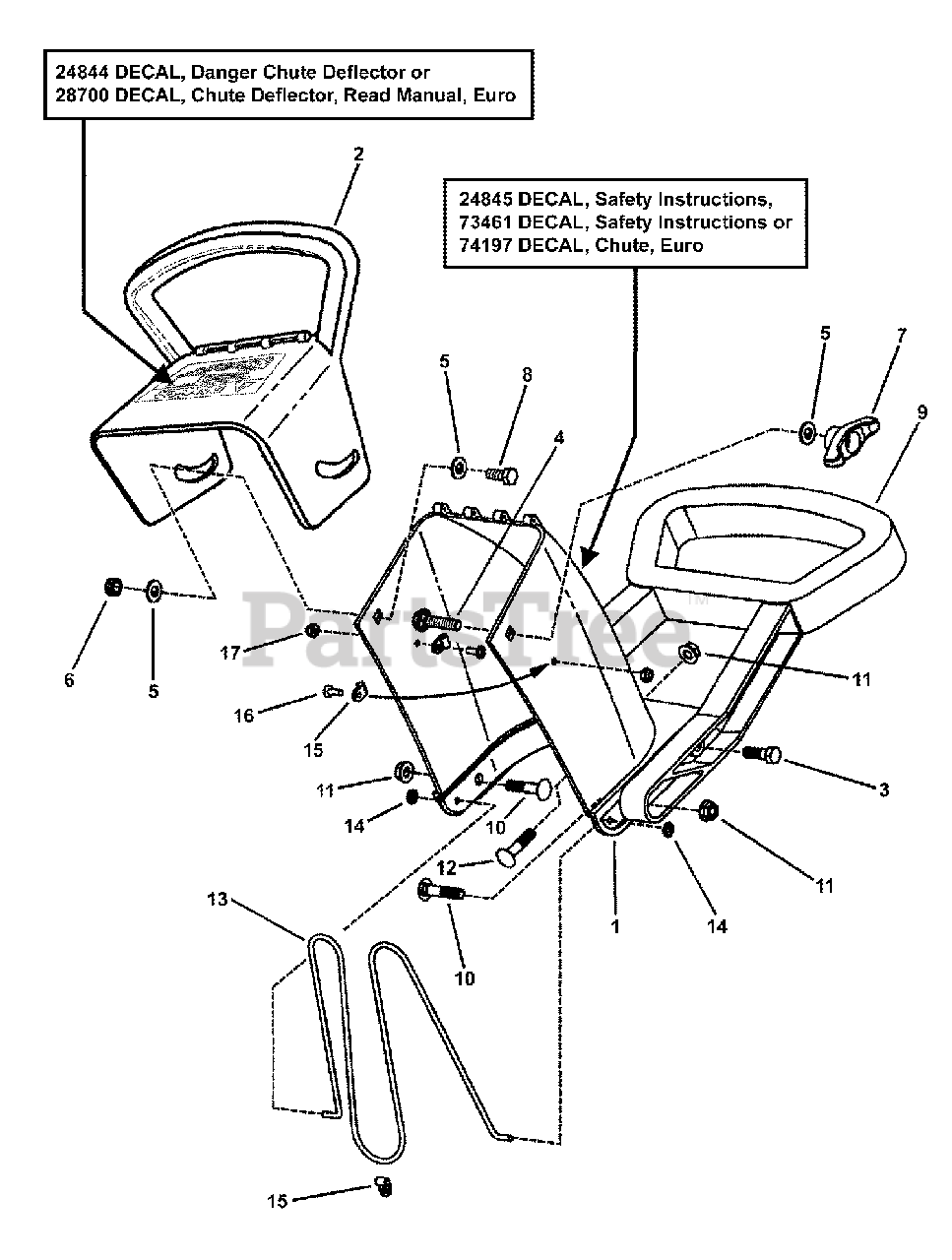

DISCHARGE CHUTE, DEFLECTOR, CONTROL HANDLE Parts Diagram

  • Title

1

Snapper 7052973

CHUTE, Discharge w/inserts
(Superseded to 7052973SM)

Note: Was 59232 (Model ELE3190R; shown)

$91.99

$

Usually ships in 2-12 days

0

1

Snapper 7052973

CHUTE, Discharge w/inserts (incl. decal # 24845)
(Superseded to 7052973SM)

Note: Models LE3170R, LE3190R & LE3190E

$91.99

$

Usually ships in 2-12 days

0

1

Snapper 7052973

CHUTE, Discharge w/inserts
(Superseded to 7052973SM)

Note: Was 52978, Models 3190M, 3190E & all Series 1

$91.99

$

Usually ships in 2-12 days

0

2

Snapper 7059231

DEFLECTOR, Chute (incl. decal # 24106)
(Superseded to 7052975SM)

Note: Model ELE3190R

$70.99

$

Usually ships in 2-12 days

0

2

Snapper 7052975

DEFLECTOR, Chute (incl. decal # 24844)
(Superseded to 7052975SM)

Note: Models LE3170R, LE3190R, LE3190E, 3190M, 3190E & all Series 1

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

4

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5
(Superseded to 703800)

Note: Was 91072

$3.99

$

In Stock, Qty 7

0

5

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, GR B
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap, GR 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7046340

HANDLE, Chute Control
(Superseded to 7046340SM)

$58.99

$

Usually ships in 2-12 days

0

10

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7090316

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7019692

WIRE, Safety
(Superseded to 7019692SM)

$31.99

$

Usually ships in 2-12 days

0

14

Snapper 7023673

FASTENER, Push On, .156 Internal Diameter
(Superseded to 7023673YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7074198

CLIP, Guard
(Superseded to 7074198SM)

Note: Tinnerman # C2980

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7092077

SCREW, #8-32 x 1/2" Pan Head Cross Recess
(Superseded to 7092077SM)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 7092078

NUT, #8-32 Hex (w/free spinning external lock washer)
(Superseded to 7092078SM)

$2.99

$

Usually ships in 2-12 days

0
