LE 309 - Husqvarna Walk-Behind Edger (1996-01) Handle Assembly Parts Diagram

Walk-Behind Edger

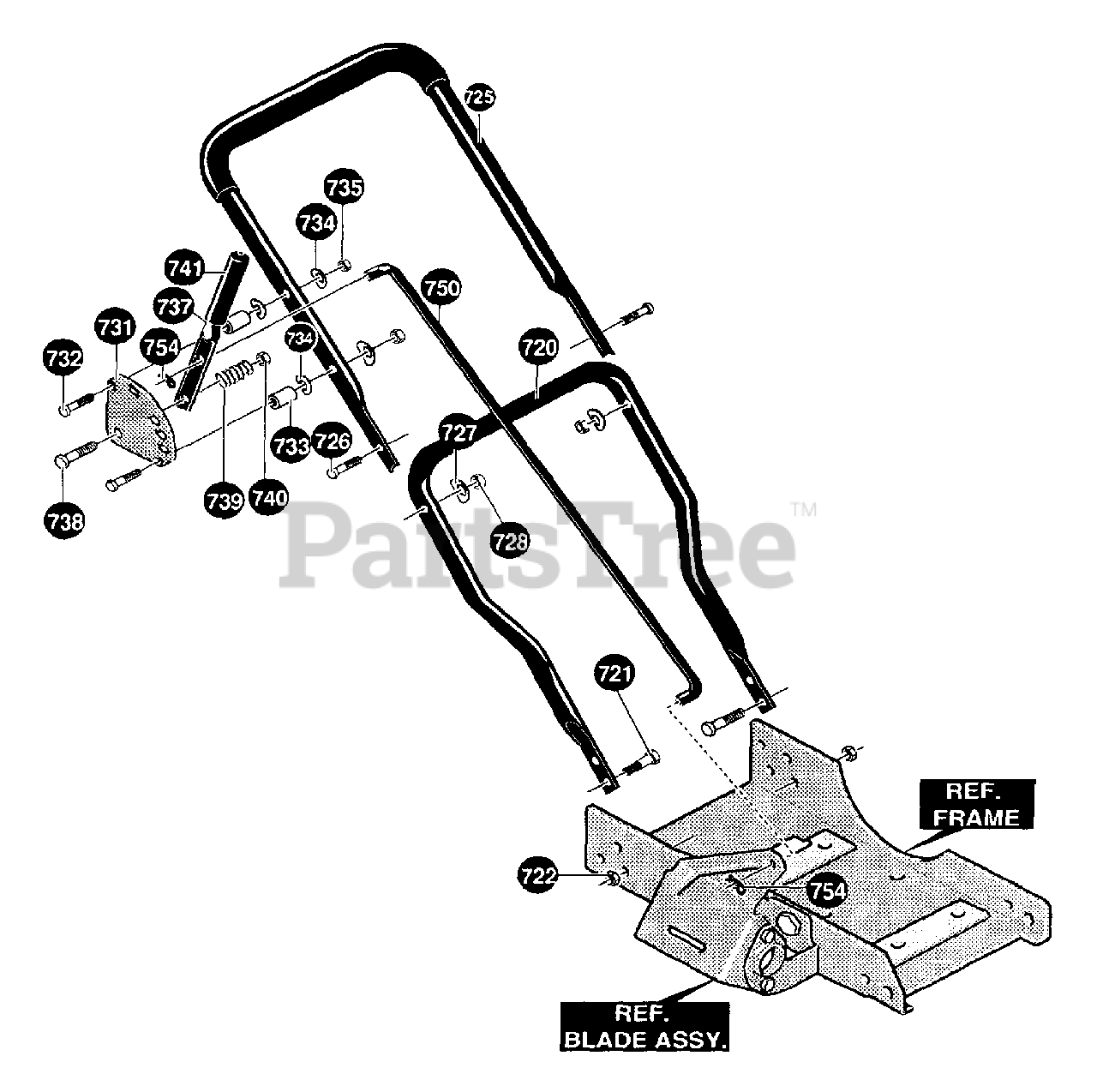

Handle Assembly Parts Diagram

  • Title
720

Husqvarna 601000498

HANDLE, LOWER 7/8

$

$

Not available

721

Husqvarna 601000072

SCREW, 5/16-18X1.00 HHC
(Superseded to 601000073)

$

$

Not available

722

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

725

Husqvarna 601000497

HDLE, UPPER W/FOAM

$

$

Not available

726

Husqvarna 601001312

SCREW, 5/16-18X1.75 HHC

$

$

Not available

727

Husqvarna 601000664

WASHER, .3431DX1.0X.062 FORM
(Superseded to 601002312)

$

$

Not available

728

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

731

Husqvarna 601000746

PLATE, QUADRANT SHIFT/ENGAG

$

$

Not available

732

Husqvarna 601001267

SCREW, 1/4-20X2.00 HHC

$

$

Not available

733

Husqvarna 601000608

SPACER, SLEV .281X.50X.68

$

$

Not available

734

Husqvarna 601000664

WASH ER, .3431DX1.0X.062 FORM
(Superseded to 601002312)

$

$

Not available

735

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

737

Husqvarna 601000705

HANDLE, DEPTH ADJUST

$

$

Not available

738

Husqvarna 601000030

SCREW, 5/16-18X1.25 HHC

$

$

Not available

739

$

$

Not available

740

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

741

Husqvarna 601000087

GRIP, HAND .75X4.87

$

$

Not available

750

Husqvarna 601000621

ROD, DEPTH CONTROL 30.0 LG

$

$

Not available

754

Husqvarna 601000523

PIN, HAIR .072 DIA X1.13LG

$

$

Not available
