LE 309 - Husqvarna Walk-Behind Edger (1996-01) Blade Component Assembly Parts Diagram

Walk-Behind Edger

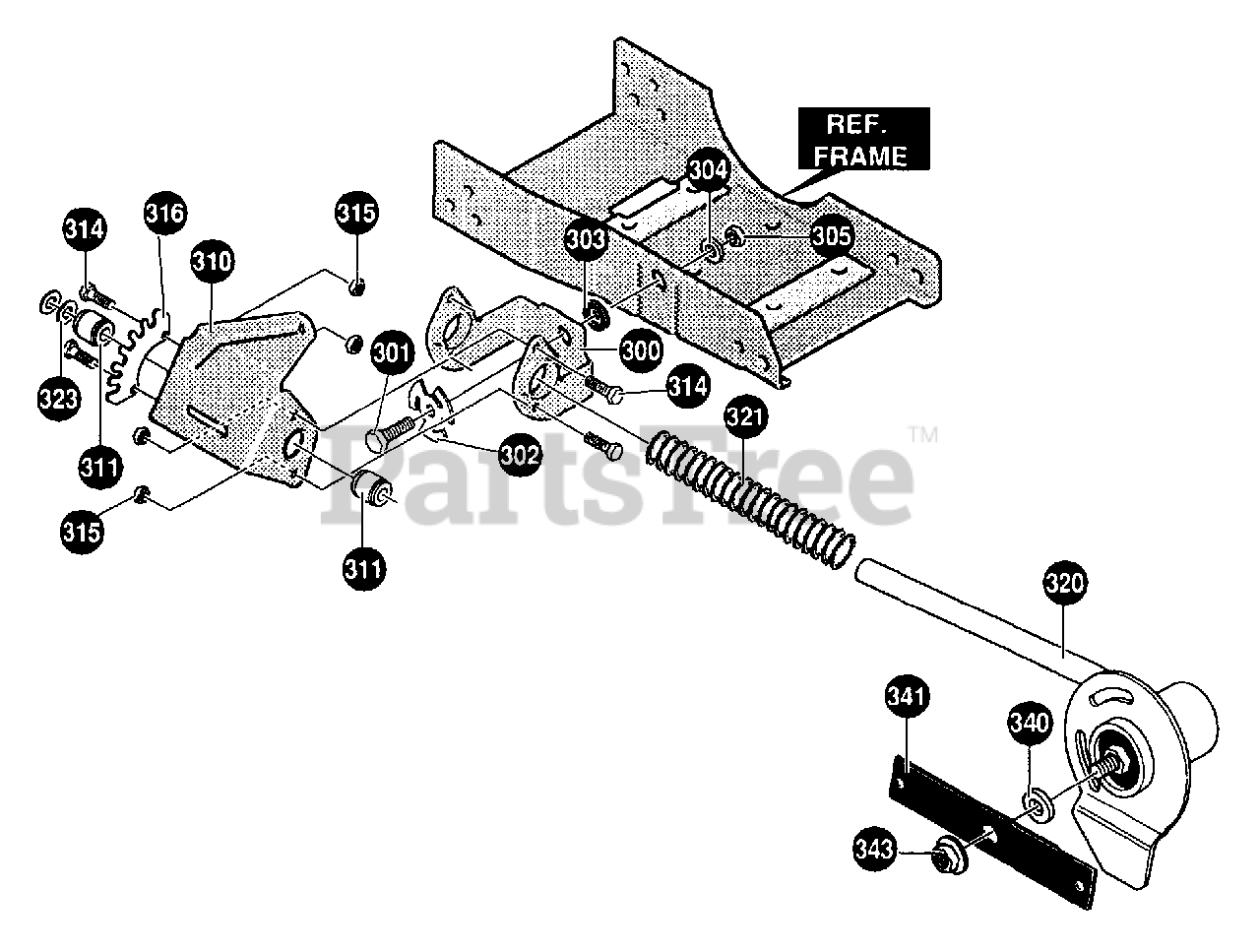

Blade Component Assembly Parts Diagram

  • Title

300

Husqvarna 601001720

SUPPORT ARM-INNER

$

$

Not available

301

Husqvarna 601000581

BOLT, 3/8-16 SHOULDER

$

$

Not available

302

Husqvarna 601000090

WASHER, SPRING

$

$

Not available

303

Husqvarna 601000545

SPACER, QUICK WHL

$

$

Not available

304

Husqvarna 601000656

FLATWASHER, .390X1.25X.119

$

$

Not available

305

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRL
(Superseded to 601002407)

$

$

Not available

310

Husqvarna 601001716

SUPPORT ARM-OUTER

$

$

Not available

311

Husqvarna 601000585

BRNG, SFAL. IDX. ODX.
(Superseded to 601001973)

$

$

Not available

314

Husqvarna 601000024

SCREW, 1/4-20X.75 HHC

$

$

Not available

315

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

316

Husqvarna 601000649

PLATE, INDEX
(Superseded to 601002477)

$

$

Not available

320

Husqvarna 601000690

QUILL, ASSY

$

$

Not available

321

Husqvarna 601000582

SPRING
(Superseded to 601002314)

$11.53

$

Usually ships in 3-10 days

0

323

Husqvarna 601001715

FLATWASHER, .640X1.25X.06
(Superseded to 601000531)

$

$

Not available

340

Husqvarna 601000094

FLATWASHER .515X1.38X.119PL

$

$

Not available

341

Husqvarna 601000749

BLADE, EDGER 2PT
(Superseded to 601002454)

$

$

Not available

343

Husqvarna 601000552

NUT, 1/2-20 WDFL

$10.99

$

In Stock, only 1 left!

0
