LE 261 - Shindaiwa Lawn Edger Gearcase Parts Diagram

Lawn Edger

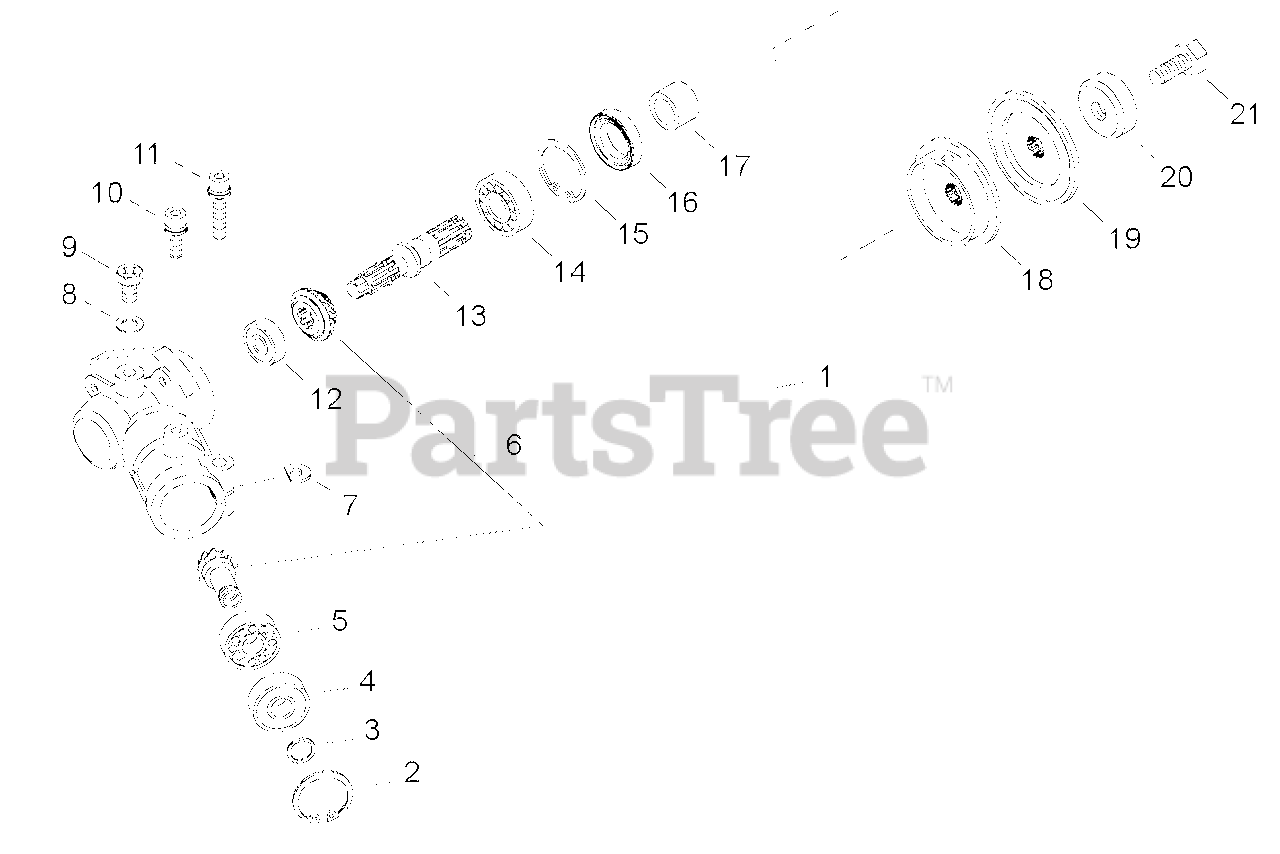

Gearcase Parts Diagram

  • Title
1

Echo 72958-13012

GEAR CASE ASSY
(Superseded to P021033560)

$132.99

$

Usually ships in 2-4 days

0

2

Echo 02432-24120

RING, RETAINING - 24
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

3

Echo 22420-13350

RING, RETAINING
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

4

Echo 02002-00609

BEARING, BALL - 609ZZ
(Superseded to 90080400609)

$15.99

$

In Stock, Qty 5

0

5

Echo 02000-00609

BEARING, BALL - 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

6

Echo 60715-98310

GEAR SET

$50.99

$

Usually ships in 2-4 days

0

7

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

8

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

9

Echo 01014-06100

BOLT - 6X10
(Superseded to 9103006010)

$0.99

$

In Stock, only 3 left!

0

10

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

11

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, Qty 6

0

12

Echo 02036-00608

BEARING, BALL - 608DDU
(Superseded to 9400230608)

$8.49

$

Usually ships in 2-4 days

0

13

Echo 22495-13210

GEAR - SHAFT
(Superseded to C534000690)

$18.99

$

Usually ships in 2-4 days

0

14

Echo 37074-63310

BEARING, BALL - 6001
(Superseded to 90080006001)

$9.49

$

In Stock, only 3 left!

0

15

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 13

0

16

Echo 22420-13140

SEAL, OIL
(Superseded to V510000020)

$5.99

$

In Stock, Qty 13

0

17

Echo 22000-13230

SPACER
(Superseded to V356000500)

$3.99

$

In Stock, Qty 5

0

18

Echo 22420-13510

HOLDER (A)
(Superseded to C535000890)

$19.99

$

In Stock, only 4 left!

0

19

Echo 37019-63170

ADAPTOR, BLADE - LOWER
(Superseded to C535000850)

$15.99

$

In Stock, only 3 left!

0

20

Echo 22000-13290

GUARD
(Superseded to C535000860)

$2.99

$

In Stock, Qty 8

0

21

Echo 22000-13512

BOLT - 8
(Superseded to V205000480)

$2.99

$

In Stock, Qty 19

0
