LE 261 - Shindaiwa Lawn Edger Crankcase/Cylinder Cover/Fan Cover Parts Diagram

Lawn Edger

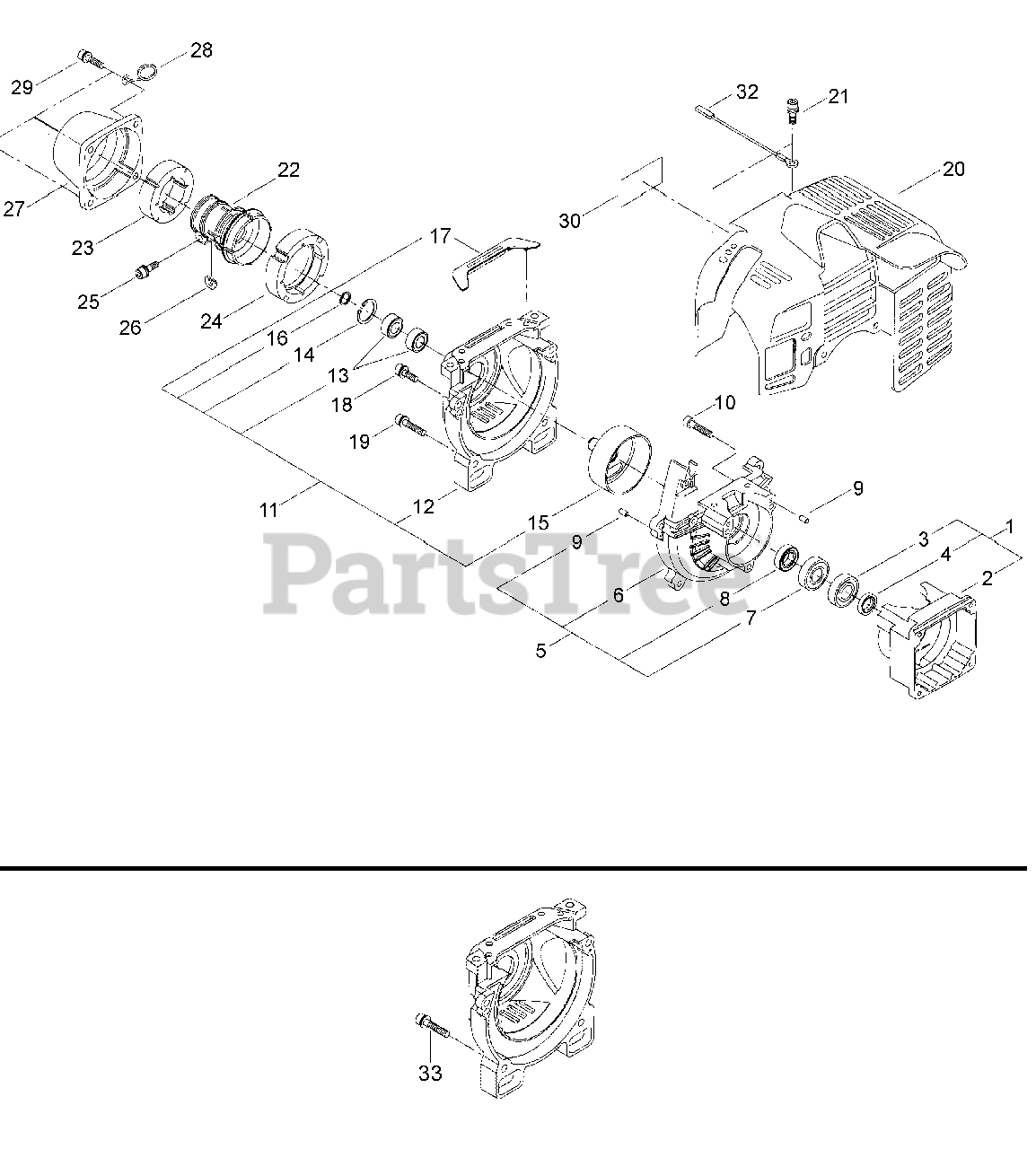

Crankcase/Cylinder Cover/Fan Cover Parts Diagram

  • Title

1

Echo 20018-21100

CRANKCASE ASSY - REAR
(Superseded to P021017970)

$29.99

$

Usually ships in 2-4 days

0

2

Echo 20018-21111

CRANKCASE - REAR
(Superseded to A120000290)

$26.99

$

Usually ships in 2-4 days

0

3

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

4

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 1 left!

0

5

Echo 20110-21201

CRANKCASE ASSY - FRONT
(Superseded to P021018630)

$28.99

$

Usually ships in 2-4 days

0

6

Echo 20018-21122

CRANKCASE - FRONT
(Superseded to A120000300)

$17.99

$

Usually ships in 2-4 days

0

7

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

8

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 12

0

9

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

10

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

11

Echo 62706-31010

FAN COVER ASSY
(Superseded to P021028200)

$99.99

$

Usually ships in 2-4 days

0

12

Echo 20134-31111

COVER, FAN
(Superseded to A172001190)

$45.99

$

Usually ships in 2-4 days

0

13

Echo 37004-63310

BEARING
(Superseded to 02006-06000)

$13.99

$

In Stock, Qty 20+

0

14

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

15

Echo 70137-31210

DRUM, CLUTCH
(Superseded to A556000780)

$30.99

$

Usually ships in 2-4 days

0

16

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

17

Echo 20110-31130

CUSHION

$2.49

$

Usually ships in 2-4 days

0

18

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

19

Echo 11022-05300

SCREW - 5X30
(Superseded to V203000580)

$

$

Not available

20

Echo 62028-32110

COVER, CYLINDER
(Superseded to A160001540)

$30.99

$

Usually ships in 2-4 days

0

21

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

22

Echo 20018-31410

CLAMP, MAIN PIPE
(Superseded to 20018-31411)

$18.99

$

In Stock, only 2 left!

0

23

Echo 20018-31420

CUSHION - FRONT
(Superseded to V420002640)

$3.49

$

Usually ships in 2-4 days

0

24

Echo 20018-31430

CUSHION - REAR
(Superseded to V420002650)

$4.49

$

In Stock, only 2 left!

0

25

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

26

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

27

Echo 70135-31470

CAP
(Superseded to A575000460)

$7.99

$

In Stock, only 1 left!

0

28

Echo 20024-83152

GUIDE, CABLE
(Superseded to C487000220)

$1.99

$

In Stock, Qty 5

0

29

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0

30

Echo 62706-91020

LABEL - MODEL
(Superseded to X504002010)

$3.49

$

Usually ships in 2-4 days

0

32

Echo 70201-83130

LEAD - GROUND
(Superseded to V485001550)

$5.49

$

In Stock, only 1 left!

0

33

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

Note: S/N 0000001 - 4098171

$0.99

$

In Stock, Qty 20+

0
