LE 260 - Shindaiwa Lawn Edger Fuel Tank Parts Diagram

Lawn Edger

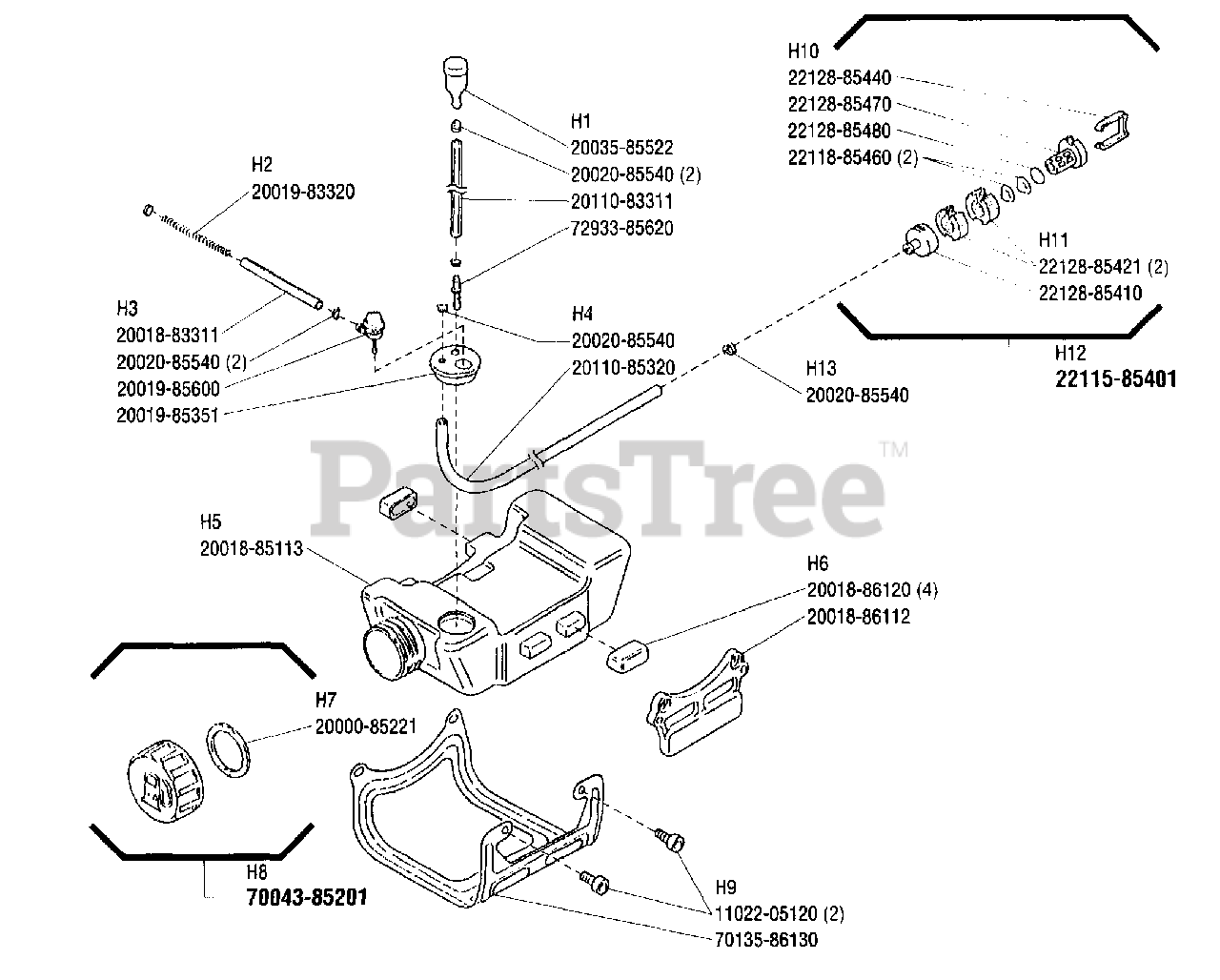

Fuel Tank Parts Diagram

  • Title

H1-20020-85540

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

H1-20035-85522

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

H1-20110-83311

Echo 20110-83311

PIPE
(Superseded to V471002730)

$0.99

$

In Stock, Qty 7

0

H1-72933-85620

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

H2-20019-83320

Echo 20019-83320

SPRING
(Superseded to V451000840)

$0.99

$

In Stock, Qty 7

0

H3-20018-83311

Echo 20018-83311

PIPE
(Superseded to V471002590)

$2.49

$

In Stock, only 4 left!

0

H3-20019-85351

Echo 20019-85351

GROMMET
(Superseded to V137000070)

$2.99

$

In Stock, Qty 20+

0

H3-20019-85600

Echo 20019-85600

BULB, PURGE
(Superseded to A035000010)

$21.99

$

In Stock, Qty 6

0

H3-20020-85540

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

H4-20020-85540

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

H4-20110-85320

Echo 20110-85320

PIPE - FUEL
(Superseded to V471002600)

$1.99

$

In Stock, Qty 20+

0

H5-20018-85113

Echo 20018-85113

TANK, FUEL
(Superseded to 20134-85000)

$

$

Not available

H6-20018-86112

Echo 20018-86112

BRACKET, FUEL TANK
(Superseded to A393000160)

$7.49

$

Usually ships in 2-4 days

0

H6-20018-86120

Echo 20018-86120

CUSHION, TANK
(Superseded to V420002360)

$1.99

$

In Stock, only 2 left!

0

H7-20000-85221

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 17

0

H8-70043-85201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 12

0

H9-70135-86130

Echo 70135-86130

GUARD, FUEL TANK
(Superseded to 62902-85320)

$12.99

$

In Stock, only 1 left!

0

H9-11022-05120

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

H10-22128-85440

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

H10-22118-85460

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

H10-22128-85470

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

H10-22128-85480

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

H11-22128-85410

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

H11-22128-85421

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 14

0

H12-22115-85401

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

H13-20020-85540

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0
