LE 260 - Shindaiwa Lawn Edger Crankcase Parts Diagram

Lawn Edger

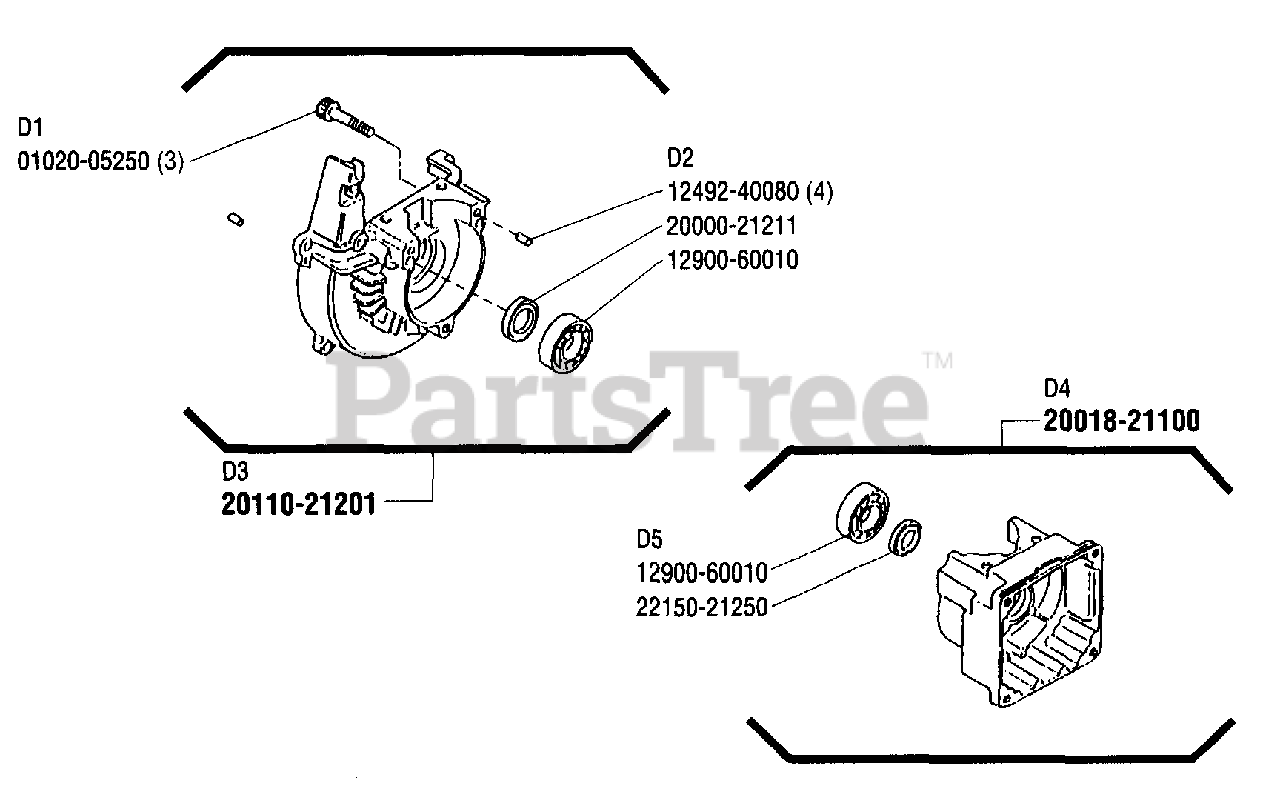

Crankcase Parts Diagram

  • Title
D1-01020-05250

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

D2-12492-40080

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

D2-12900-60010

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

D2-20000-21211

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 11

0

D3-20110-21201

Echo 20110-21201

CRANKCASE ASSY - FRONT
(Superseded to P021018630)

$28.99

$

Usually ships in 2-4 days

0

D4-20018-21100

Echo 20018-21100

CRANKCASE ASSY - REAR
(Superseded to P021017970)

$29.99

$

Usually ships in 2-4 days

0

D5-12900-60010

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

D5-22150-21250

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

Usually ships in 2-4 days

0
