LE 250 - Shindaiwa Lawn Edger Muffler Parts Diagram

Lawn Edger

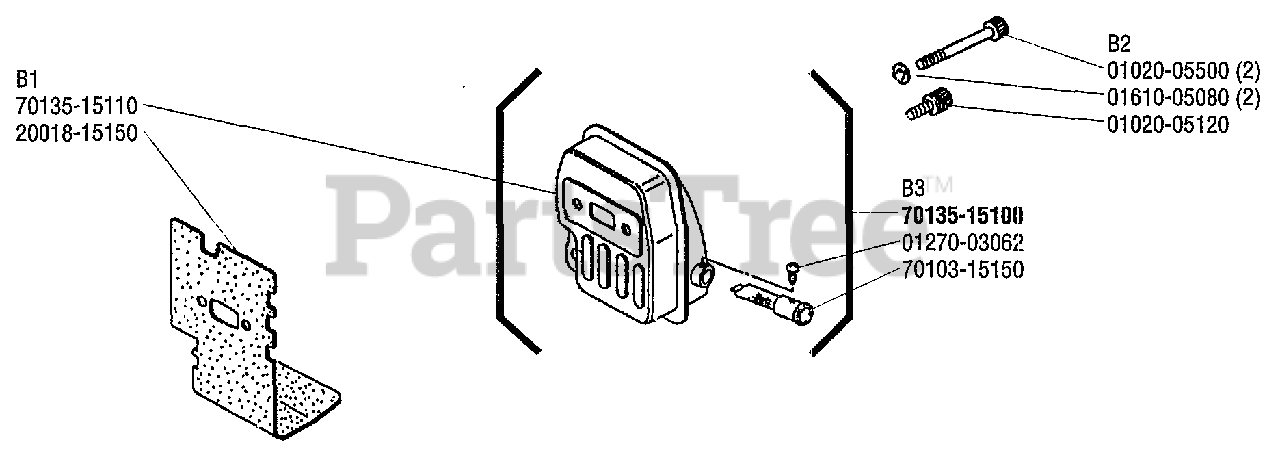

Muffler Parts Diagram

  • Title
B1-70135-15110

Echo 70135-15110

MUFFLER
(Superseded to A300000890)

$30.99

$

Usually ships in 2-4 days

0

B1-20018-15150

Echo 20018-15150

GASKET, MUFFLER
(Superseded to V104001220)

$10.99

$

Usually ships in 2-4 days

0

B3-70135-15100

Echo 70135-15100

MUFFLER ASSY
(Superseded to A030000120)

$31.99

$

Usually ships in 2-4 days

0

B3-01270-03062

Echo 01270-03062

SCREW
(Superseded to 9137403006)

$0.99

$

In Stock, Qty 10

0

B3-70103-15150

Echo 70103-15150

SPARK ARRESTER
(Superseded to A310000260)

$7.99

$

Usually ships in 2-4 days

0

B2-01020-05500

Echo 01020-05500

BOLT
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0

B2-01610-05080

Echo 01610-05080

WASHER
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

B2-01020-05120

Echo 90010505012

SCREW - 5X12 HSH

$1.49

$

In Stock, Qty 20+

0
