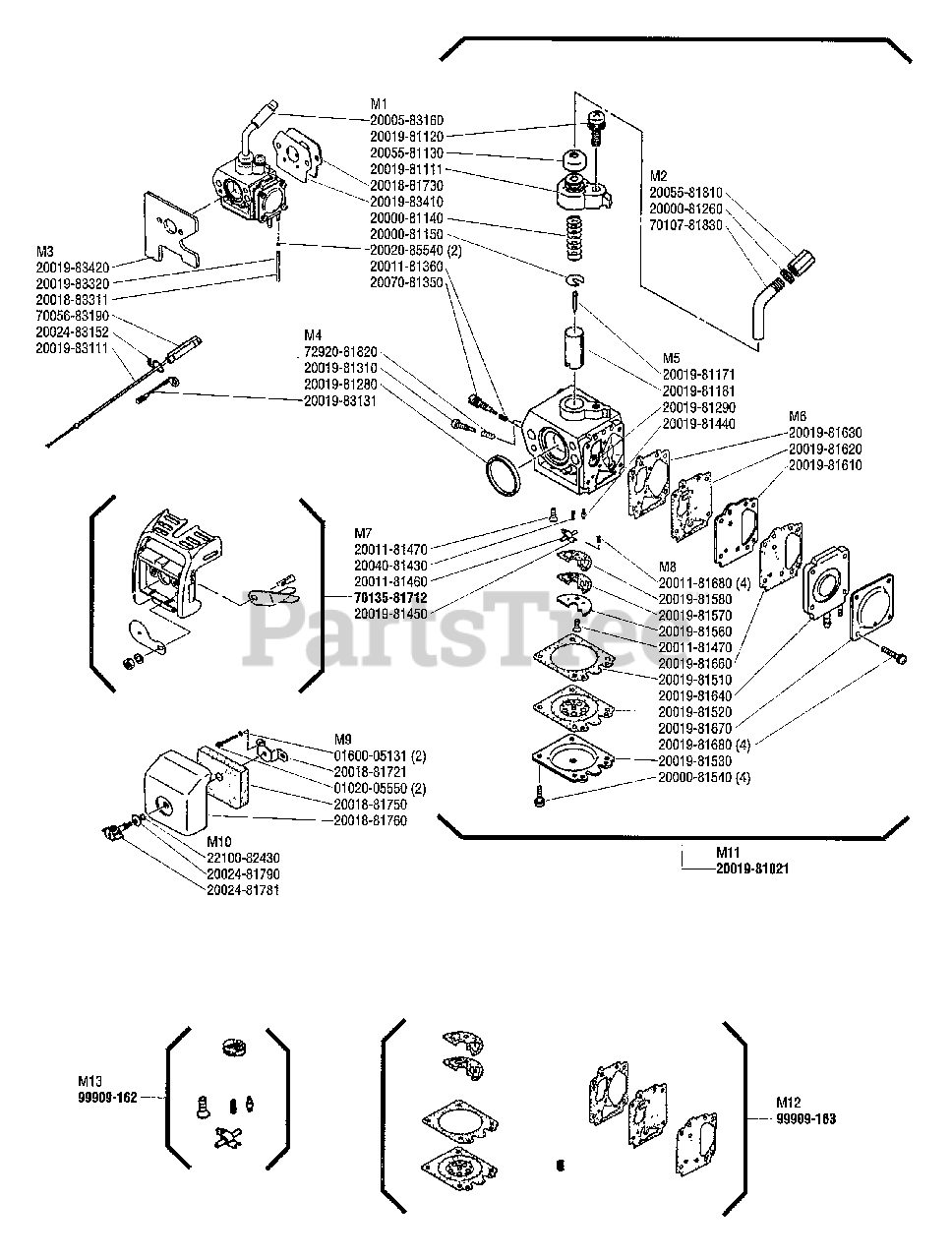

LE 250 - Shindaiwa Lawn Edger Carburetor Parts Diagram

Lawn Edger

Carburetor Parts Diagram

  • Title

M1-20005-83160

Echo 20005-83160

CABLE CAP
(Superseded to A246000020)

$0.99

$

In Stock, Qty 18

0

M1-20019-81120

Echo 20019-81120

SCREW
(Superseded to P004001590)

$0.99

$

In Stock, only 3 left!

0

M1-20055-81130

Echo 20055-81130

CAP
(Superseded to P004002180)

$3.99

$

In Stock, only 1 left!

0

M1-20019-81111

Echo 20019-81111

BODY TOP COMPLETE
(Superseded to P004001580)

$16.99

$

Usually ships in 2-4 days

0

M1-20018-81730

Echo 20018-81730

PLATE
(Superseded to Discontinued)

$

$

Not available

M1-20019-83410

Echo 20019-83410

GASKET
(Superseded to V103000770)

$0.99

$

Usually ships in 2-4 days

0

M1-20000-81140

Echo 20000-81140

SPRING THROTTLE
(Superseded to 12411405530)

$1.99

$

Usually ships in 2-4 days

0

M1-20000-81150

Echo 20000-81150

SPRING RECEIVER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

M1-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

M1-20011-81360

Echo 20011-81360

SPRING
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

M1-20070-81350

Echo 20070-81350

SCREW, MAIN ADJUST
(Superseded to 12435412710)

$15.99

$

Usually ships in 2-4 days

0

M3-20019-81731

Echo 20019-81731

$

$

Currently unavailable

M3-20019-83320

Echo 20019-83320

SPRING
(Superseded to V451000840)

$0.99

$

In Stock, Qty 7

0

M3-20018-83311

Echo 20018-83311

PIPE
(Superseded to V471002590)

$2.49

$

In Stock, only 4 left!

0

M3-70056-83190

Echo 70056-83190

CONNECTOR
(Superseded to C482000090)

$3.49

$

Usually ships in 2-4 days

0

M3-20024-83152

Echo 20024-83152

CABLE HOLDER
(Superseded to C487000220)

$1.99

$

In Stock, Qty 5

0

M3-20019-83111

Echo 20019-83111

THROTTLE CABLE

$5.99

$

Usually ships in 2-4 days

0

M4-72920-81820

Echo 72920-81820

SPRING
(Superseded to 12416011120)

$2.49

$

In Stock, only 1 left!

0

M4-20019-81310

Echo 20019-81310

SCREW, SLOW STOP
(Superseded to 62028-81370)

$9.99

$

Usually ships in 2-4 days

0

M4-20019-81280

Echo 20019-81280

GASKET, RING
(Superseded to 12414913410)

$4.99

$

In Stock, only 1 left!

0

M4-20019-83131

Echo 20019-83131

CORD

$2.99

$

Usually ships in 2-4 days

0

M2-20055-81810

Echo 20055-81810

CABLE ADJUSTER
(Superseded to 12415846630)

$13.99

$

Usually ships in 2-4 days

0

M2-20000-81260

Echo 20000-81260

NUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

M2-70107-81830

Echo 70107-81830

ADJUST PIPE
(Superseded to P004002870)

$14.99

$

Usually ships in 2-4 days

0

M5-20019-81171

Echo 20019-81171

JET NEEDLE
(Superseded to Discontinued)

$

$

Not available

M5-20019-81181

Echo 20019-81181

THROTTLE VALVE

$41.99

$

Usually ships in 2-4 days

0

M5-20019-81290

Echo 20019-81290

SCREEN
(Superseded to P004001640)

$3.49

$

Usually ships in 2-4 days

0

M5-20019-81440

Echo 20019-81440

NEEDLE, VALVE
(Superseded to P004001660)

$11.99

$

In Stock, only 1 left!

0

M6-20019-81630

Echo 20019-81630

GASKET
(Superseded to 12436112710)

$2.99

$

In Stock, only 2 left!

0

M6-20019-81620

Echo 20019-81620

DIAPHRAGM, PUMP
(Superseded to 12436412710)

$15.99

$

Usually ships in 2-4 days

0

M6-20019-81610

Echo 20019-81610

PLATE, PUMP
(Superseded to 12436212710)

$18.99

$

In Stock, only 1 left!

0

M8-20011-81680

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

M8-20019-81580

Echo 20019-81580

GASKET
(Superseded to 12437512710)

$6.99

$

Usually ships in 2-4 days

0

M8-20019-81570

Echo 20019-81570

CHECK VALVE
(Superseded to 12437453630)

$11.99

$

In Stock, only 1 left!

0

M8-20019-81560

Echo 20019-81560

PLATE
(Superseded to 68501-81370)

$5.49

$

Usually ships in 2-4 days

0

M8-20011-81470

Echo 20011-81470

SCREW
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

M8-20019-81660

Echo 20019-81660

GASKET
(Superseded to 12436312710)

$6.99

$

Usually ships in 2-4 days

0

M8-20019-81510

Echo 20019-81510

GASKET
(Superseded to P004001670)

$1.99

$

In Stock, Qty 5

0

M8-20019-81640

Echo 20019-81640

COVER, PUMP
(Superseded to 20019-81641)

$15.99

$

In Stock, only 1 left!

0

M8-20019-81520

Echo 20019-81520

DIAPHRAGM ASSY
(Superseded to P004001680)

$19.99

$

Usually ships in 2-4 days

0

M8-20019-81670

Echo 20019-81670

COVER, DIAPHRAGM
(Superseded to P004001720)

$7.99

$

Usually ships in 2-4 days

0

M8-20019-81680

Echo 20019-81680

SCREW
(Superseded to P004001730)

$0.99

$

Usually ships in 2-4 days

0

M8-20019-81530

Echo 20019-81530

COVER, DIAPHRAGM
(Superseded to P004001690)

$6.99

$

In Stock, only 1 left!

0

M8-20000-81540

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

M7-20011-81470

Echo 20011-81470

SCREW
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

M7-20040-81430

Echo 20040-81430

SPRING
(Superseded to 12433149930)

$1.99

$

In Stock, only 1 left!

0

M7-20011-81460

Echo 20011-81460

PIN
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

M7-70135-81712

Echo 70135-81712

CLEANER BODY COMPLETE
(Superseded to 70135-81714)

$

$

Not available

M7-20019-81450

Echo 20019-81450

LEVER, CONTROL
(Superseded to 12432121330)

$4.49

$

Usually ships in 2-4 days

0

M9-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

M9-20018-81721

Echo 20018-81721

PLATE, BACK
(Superseded to A244000190)

$3.99

$

In Stock, Qty 6

0

M9-01020-05550

Echo 01020-05550

BOLT
(Superseded to 90010505055)

$1.49

$

In Stock, Qty 7

0

M9-20018-81750

Echo 20018-81750

FILTER
(Superseded to A226000740)

$3.99

$

Usually ships in 2-4 days

0

M9-20018-81760

Echo 20018-81760

COVER, AIR CLEANER
(Superseded to 20018-81761)

$4.99

$

Usually ships in 2-4 days

0

M10-22100-82430

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 5

0

M10-20024-81790

Echo 20024-81790

WASHER
(Superseded to V347000030)

$0.99

$

In Stock, Qty 9

0

M10-20024-81781

Echo 20024-81781

KNOB
(Superseded to 20115-81780)

$3.99

$

In Stock, only 1 left!

0

M11-20019-81021

Echo 20019-81021

CARBURETOR ASSY
(Superseded to 20019-81023)

$124.99

$

Usually ships in 2-4 days

0

M12-99909-163

Echo 99909-163

GASKET/DIAPHRAGM KIT
(Superseded to 72572-98020)

$40.99

$

In Stock, only 2 left!

0

M13-99909-162

Echo 99909-162

KWIK KIT
(Superseded to 72572-98030)

$19.99

$

In Stock, only 2 left!

0
