LE 231 - Shindaiwa Lawn Edger Throttle Lever Parts Diagram

Lawn Edger

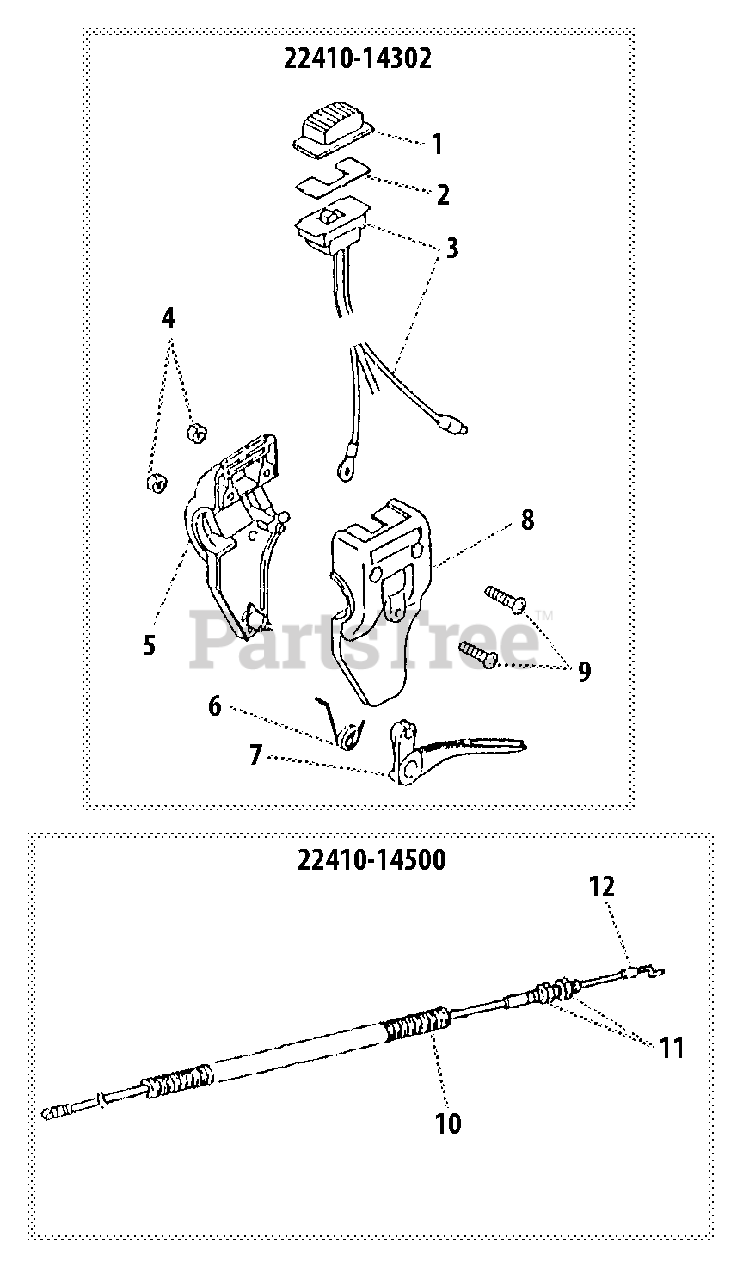

Throttle Lever Parts Diagram

  • Title

22410-14302

Echo 22410-14302

THROTTLE CONTROL KIT
(Superseded to C044000540)

$30.99

$

In Stock, only 1 left!

0

1

Echo 22420-12930

KNOB
(Superseded to A444000090)

$2.49

$

In Stock, Qty 5

0

2

Echo 22420-12940

PLATE, SWITCH
(Superseded to X510000500)

$2.49

$

Usually ships in 2-4 days

0

3

Echo 22410-14351

SWITCH
(Superseded to A440001430)

$19.99

$

In Stock, only 1 left!

0

4

Echo 01501-05031

NUT - 5
(Superseded to 90050200005)

$0.99

$

In Stock, Qty 13

0

5

Echo 22410-14312

BRACKET - RIGHT
(Superseded to C401000080)

$5.99

$

In Stock, Qty 8

0

6

Echo 22410-14331

SPRING, TRIGGER
(Superseded to V452000440)

$1.99

$

In Stock, Qty 12

0

7

Echo 22410-14321

TRIGGER, THROTTLE
(Superseded to C450000460)

$7.49

$

In Stock, Qty 20+

0

8

Echo 22410-14341

BRACKET - LEFT
(Superseded to C401000090)

$5.99

$

In Stock, Qty 9

0

9

Echo 11203-05250

SCREW - 5X20
(Superseded to 9157805025)

$0.99

$

In Stock, Qty 9

0

22410-14500

Echo 22410-14500

THROTTLE CABLE ASSY
(Superseded to P021023240)

$10.99

$

In Stock, Qty 12

0

10

Echo 22422-14540

TUBE
(Superseded to V475004520)

$1.99

$

In Stock, Qty 12

0

11

Echo 01501-06041

NUT - 6
(Superseded to 90050200006)

$0.99

$

In Stock, only 3 left!

0

12

Echo 22410-14511

CABLE, THROTTLE
(Superseded to V430002700)

$6.99

$

In Stock, Qty 13

0
